Siemens SINUMERIK 808D Installation Manual

Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0
33
3.3.7

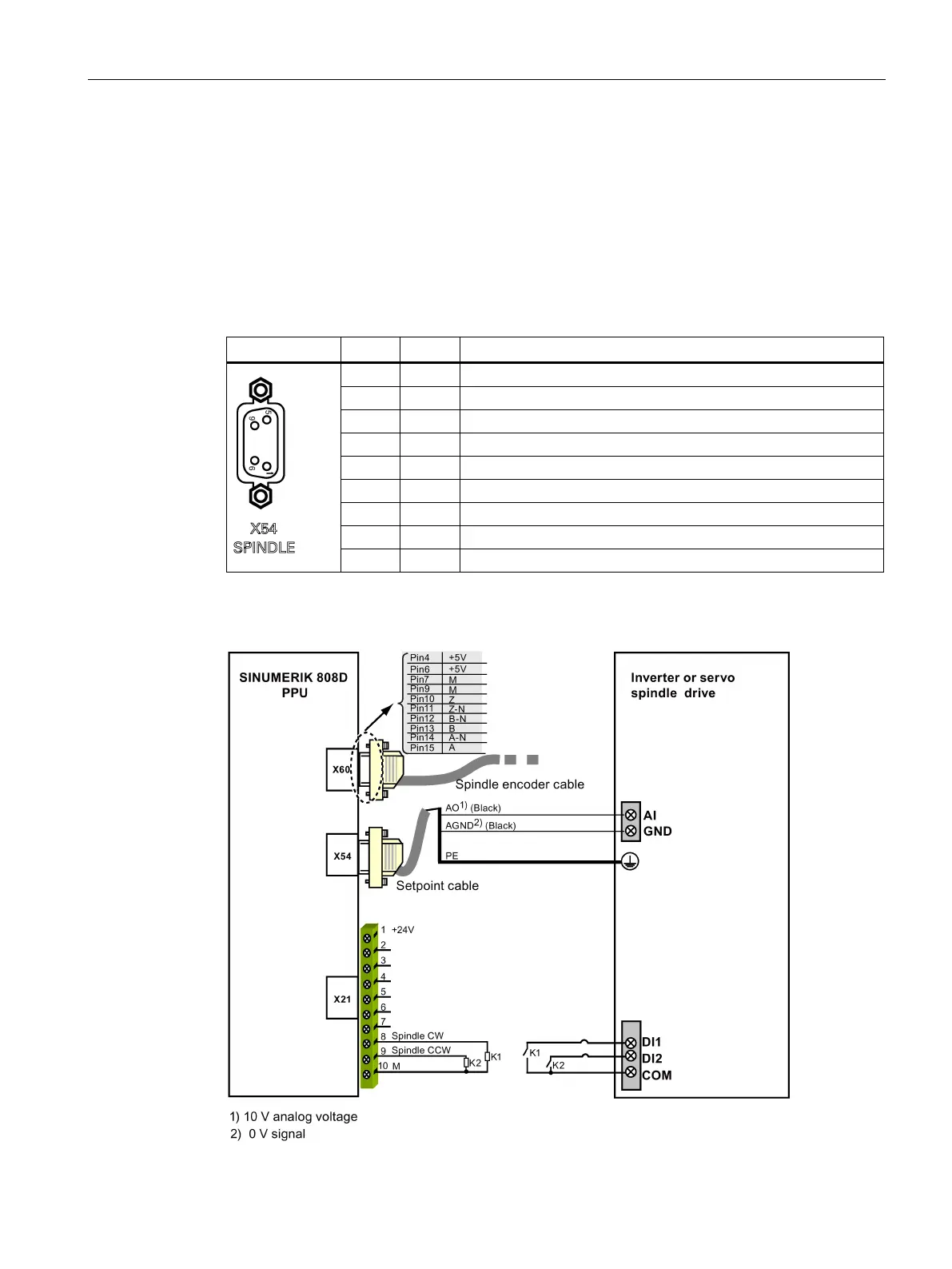

Analog spindle interface - X54
Interface X54 is for connecting the CNC controller to the inverter or servo spindle drive.
Type 9-pin, Sub-D, female
Cable Max. length: 10m
Table 3- 10 Pin assignment of connector X54 (SPINDLE)
Illustration
Pin
Signal
Comment
1 AO Analog voltage
2 - not assigned
3 - not assigned
4 - not assigned
5 SE1 Analog drive enable (contact: electrically isolated n.o. contact)
6 SE2 Analog drive enable (contact: electrically isolated n.o. contact)
7 - not assigned
8 - not assigned
9 AGND Ground
Connecting
