Connecting
3.3 Connecting the interfaces on the PPU
Electrical Installation Manual
Operating Instructions, 12/2014, 6FC5397-2EP10-0BA0
21
End sleeves are necessary if you use two cables per connection.
Fasten the cables to the screw terminals and plug the terminals into interfaces X100, X101
and X102 correctly.
Digital output interfaces - X200, X201
Type Mini Combicon 10-pin
Cable Max. length: 10 m
Max. cross-section:
One cable per connection: ≥ 0.5 mm2
Outputs Rated digital output current: 250 mA

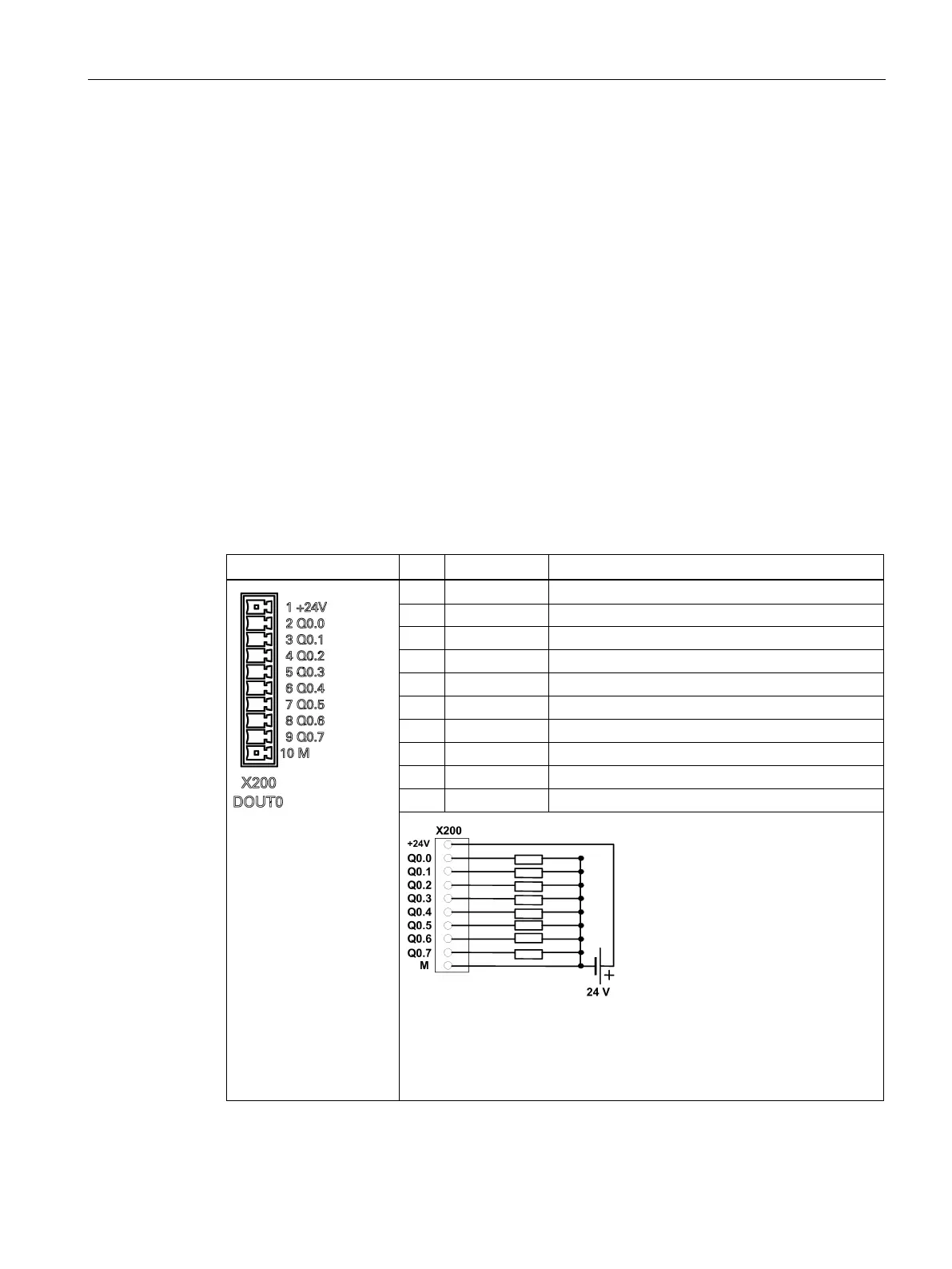

Table 3- 4 Pin assignment of X200 (DOUT0)
1 +24V +24V input (20.4 - 28.8 V); must be connected
2 Q0.0 Digital output
3 Q0.1 Digital output
4 Q0.2 Digital output
5 Q0.3 Digital output
6 Q0.4 Digital output
7 Q0.5 Digital output
8 Q0.6 Digital output
9 Q0.7 Digital output
10 M External ground; must be connected
:
The +24 V power supply
be connected even if X200 is not used;
otherwise, the communication between the PPU and the drives does not
function as it should.
