7.7.2 PROFINET cables
Cable and connector types
Note
For connecting PROFINET to the NCU we recommend using a connector with a 145° cable
outlet (IE FC RJ45 plug 145).

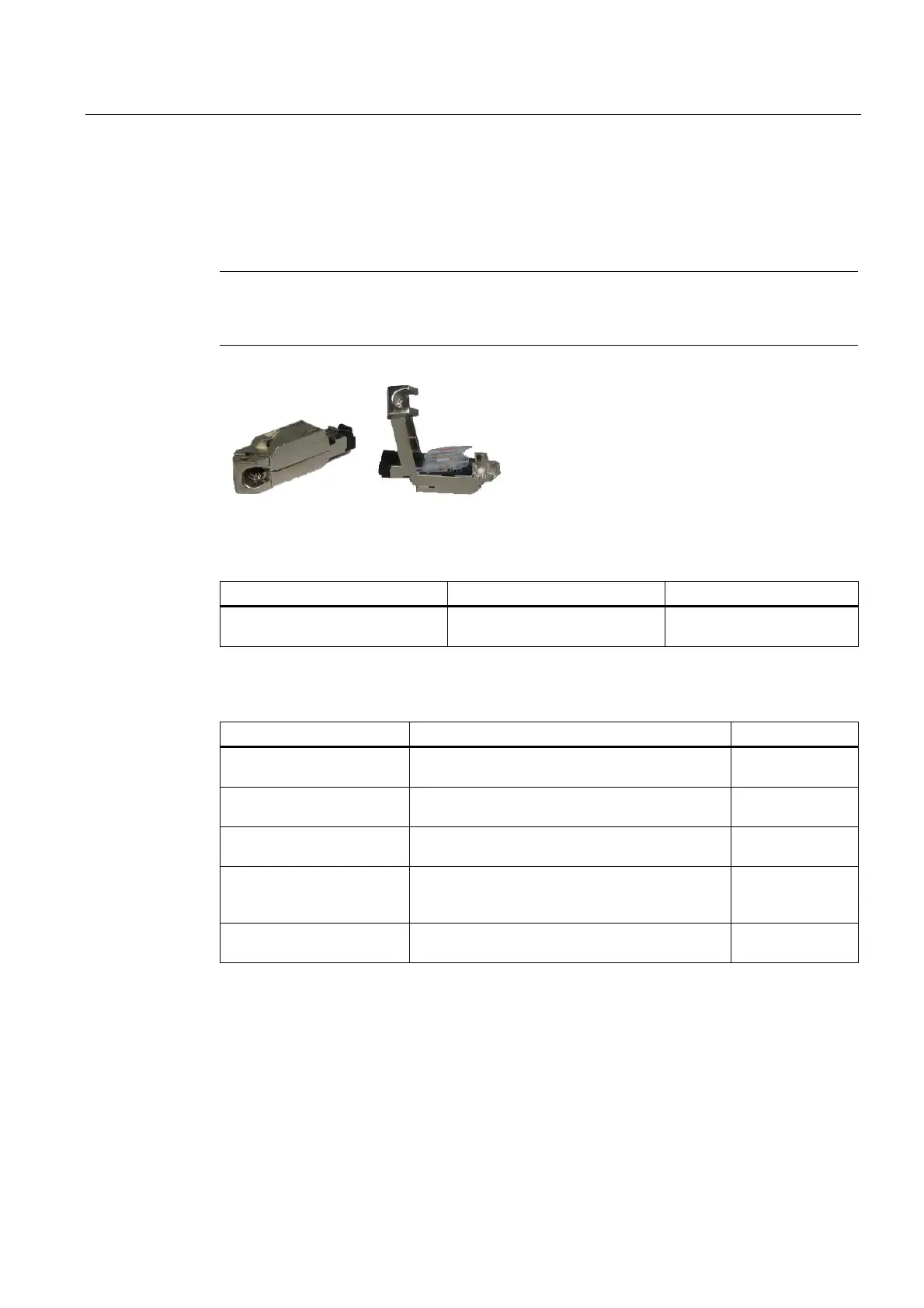

Figure 7-9 RJ45 PN connector with a 145°cable outlet
Table 7- 15 Connector types for PROFINET
Connector Designation Order number
IE FC RJ45 plug 145 RJ45 PN connector with angled
exit
6GK1 901-1BB30-0AA0/
6GK1 901-1BB30-0AB0
Table 7- 16 Cable types for PROFINET
Cable Designation Order number
IE FC Cable GP 2 (Type A) 4-wire, shielded TP installation cable for
IE FC RJ45
6XV1 840-2AH10
IE FC Flexible Cable GP 2
(Type A)
4-wire, shielded flexible TP installation
cable for IE FC RJ45
6XV1 870-2B
IE FC Trailing Cable GP 2x2
(Type C)
4-wire TP installation cable for ground cable use 6XV1 870-2D
IE FC Trailing Cable 2x2
(Type C)
4-wire shielded TP installation cable for
connection to FC OUTLET RJ45, for ground
cable use
6XV1 840-3AH10
IE FC Marine Cable 2x2 4-wire shielded marine-certified TP installation
cable for connection to FC OUTLET RJ45
6XV1 840-4AH10
