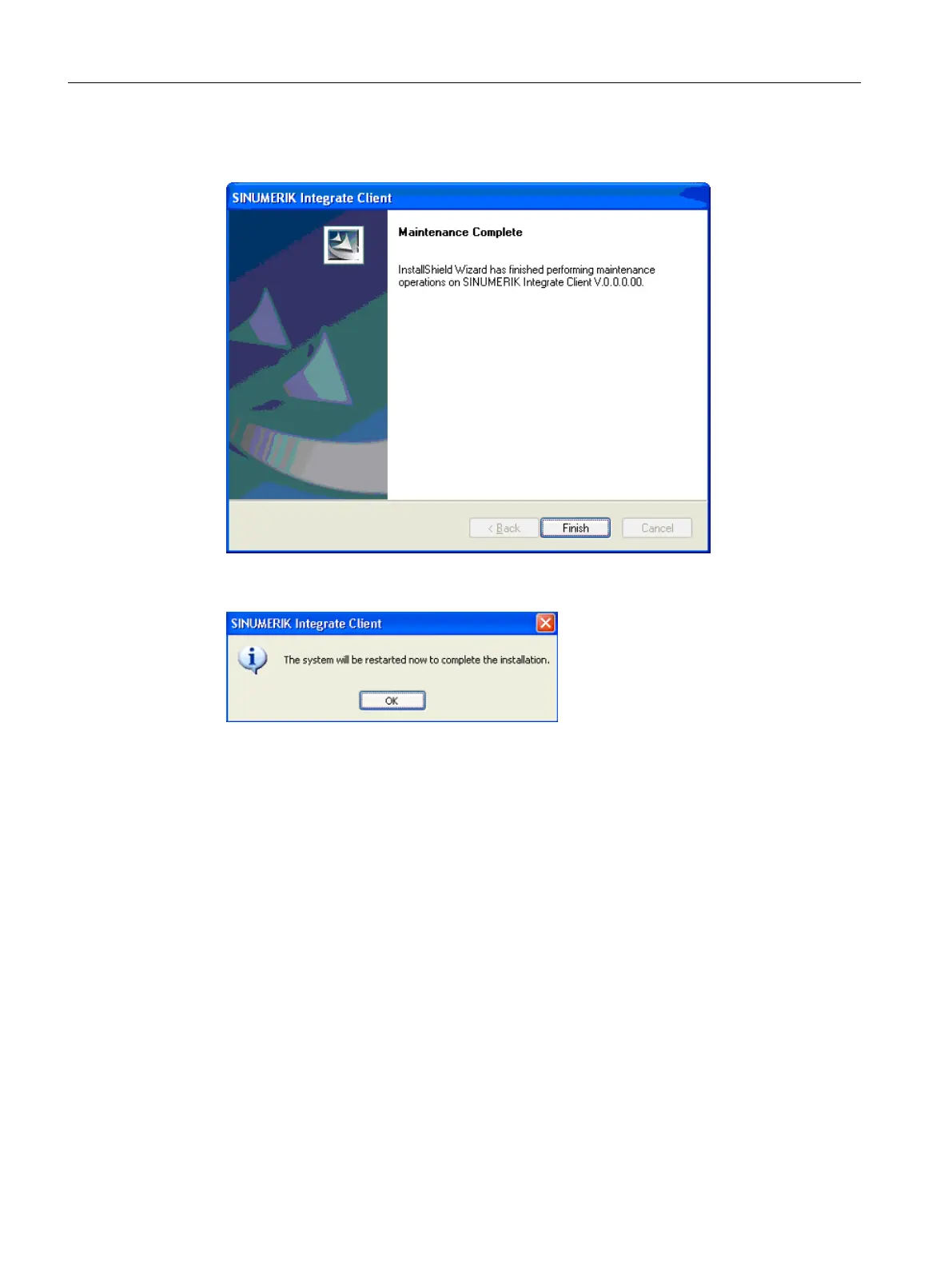

21.The "Maintenance Complete" window opens.
Click "Finish" to complete the installation.
22.You are prompted to restart the system after the installation has been completed.
To do this, click "OK".
7.2.2 Correcting connection problems
Connection and synchronization problems between SINUMERIK Integrate and the
SINUMERIK controller with HMI-Advanced can be caused by the following reasons:
● The OPC server is not registered
● HMI-Advanced version 07.06.02.08 or later
PCU Base Version earlier than 08.06.04
● The proxy configuration is faulty
● RSA certificate is not up-to-date
Prerequisite
You require administrator rights to make the following settings.
Installing SINUMERIK Integrate
7.2 SINUMERIK Integrate with HMI-Advanced
Manage MyResources, Optimize MyProgramming /NX-Cam Editor
164 Installation Manual, 12/2019, A5E44672080B AE
