Operating Instructions SIPLUS CMS4000 IFN AI-D
SIPLUS CMS4000 IFN AI-D
Operating Instructions, 07/2021, A5E32612781A-AB
8
2.2 What is an Interface Node IFN AI-D?
Definition
The interface node IFN AI-D allows the data sampling of six analog signals.
The maximum sampling frequency is 192 kHz per channel. The nodes are connected via
bus system (IEEE1394) with 400 Mbps with an industrial PC.
Application Area
 The IFN AI-D is suited for the application in the industrial environment, because of the
robust construction and the degree of protection IP67.
 The compact design of the IFN AI-D enables the application in space-saving ranges.
 Easy handling of IFN AI-D provides a fast commissioning and maintenance
 The product is designed for the application on a DIN Rail or for mounting angles.
Display
The IFN AI-D has one display (LED), analog input connectors, IEEE1394 connections
and one connection for Power Supply.

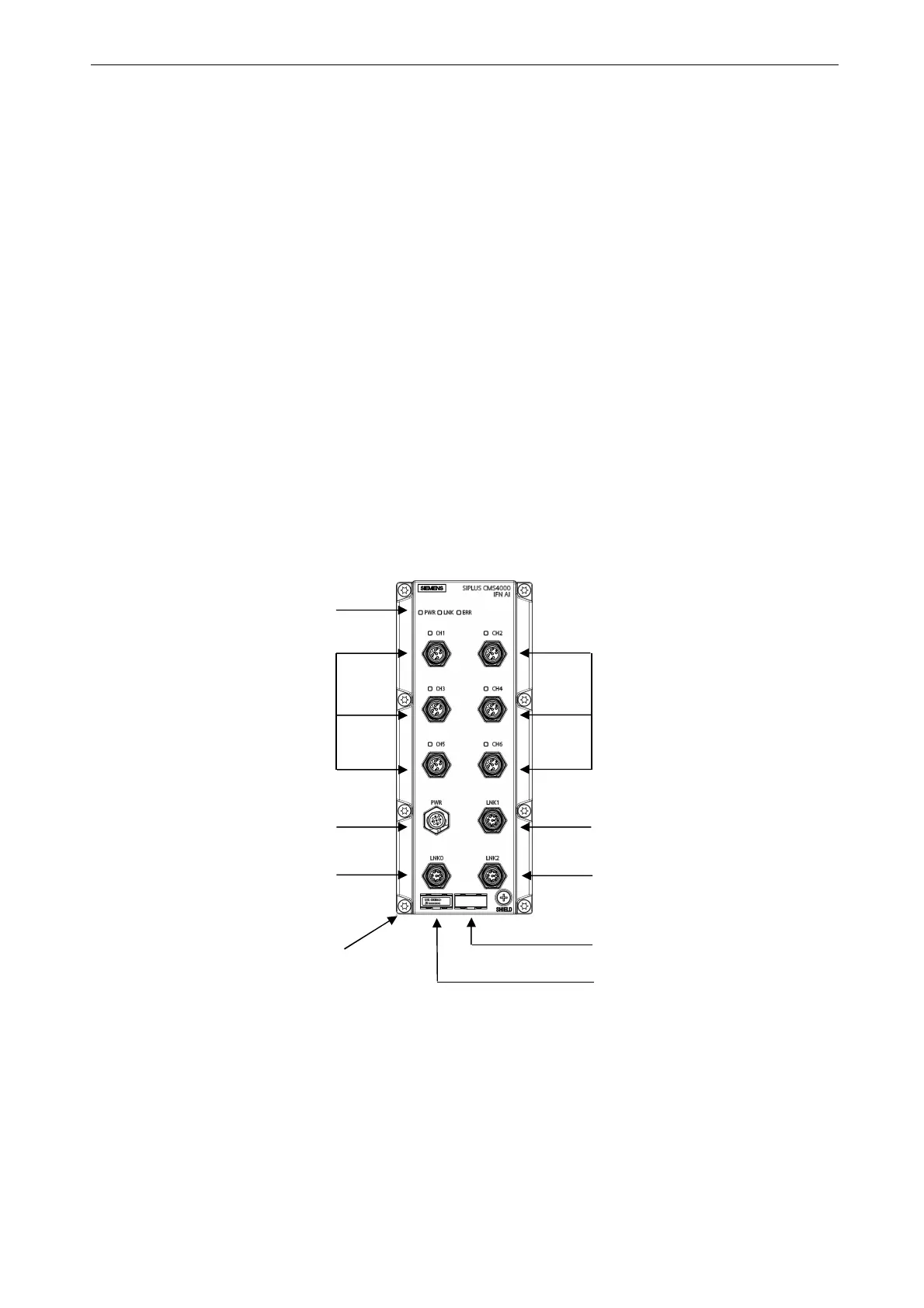

Picture 2 Front view IFN AI-D (picture shows the IFN AI)
Input Sensor
Connections and
LEDs
(Channel 1,3,5)
IEEE1394 Connection
(LNK0)
Input Sensor-
Connections and
LEDs
(Channel 2,4,6
)
IEEE1394 Connection (LNK1)
IEEE1394 Connection (LNK2)
Label Plate with
ANALOGINPUT-DISTANCE
UIK - Address
Power Supply
(PWR)
Name Plate
(Bottom side)
Status Display:
 PWR (green LED)
 LNK (yellow LED)

ERR (red LED)
