2.2 Connections and terminal designation
The line input terminals ① can be used to establish the connection to supply voltage. The
output terminals
② are used to connect to the loads to be supplied (see also Section
Installation (Page 39)).
The operating state of the device can be processed via the signaling contact
③ (function
and contact rating, see Chapter Status displays and signaling (Page 12)).
Connections and terminal designations
Line input L1, N (L2), PE
one spring-loaded terminal each
Output +
2 spring-loaded terminals
Output –
3 spring-loaded terminals
Signaling contact 13, 14
one spring-loaded terminal each
*1)
Do not subject the end stop to higher loads

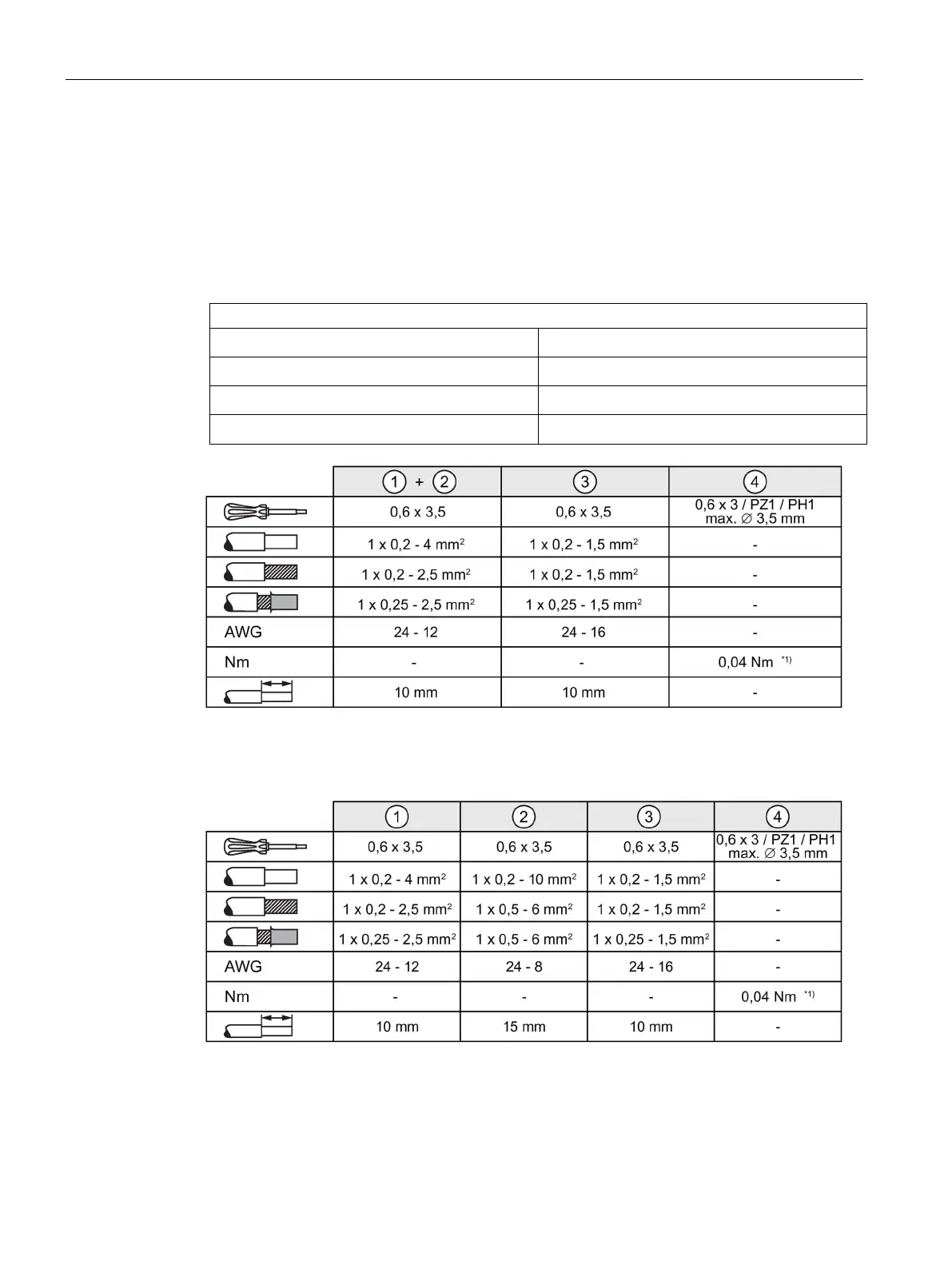

Figure 2-2 Terminal data for 6EP3323-7SB00-0AX0, 6EP3324-7SB00-3AX0, 6EP3333-7LB00-
0AX0, 6EP3333-7SB00-0AX0 and 6EP3334-7SB00-3AX0
*1)
Do not subject the end stop to higher loads
Figure 2-3 Terminal data for 6EP3336-7SB00-3AX0
