6.3 Efficiency
SITOP PSU6200 1ph
52 Manual, 03.2019, A5E44623264-1-76
6.3 Efficiency
6EP3323-7SB00-0AX0
(12 V/7 A)
6EP3324-7SB00-3AX0
(12 V/12 A)
Efficiency at U
out rated
, I
out rated
120 V / 230 V AC approx.
86.2 % / 87.1 % 89.4 % / 89.9 %
Power loss at U
out rated
, I
out rated
120 V / 230 V AC approx.
14 W / 13 W 17 W / 17 W
Power loss when idling
120 V / 230 V AC approx.
1.2 W / 1.7 W 3.1 W / 2.6 W
6EP3333-7LB00-
0AX0 (24 V/3.7 A)
6EP3333-7SB00-
0AX0 (24 V/5 A)
6EP3334-7SB00-
3AX0 (24 V/10 A)
6EP3336-7SB00-
3AX0 (24 V/20 A)
Efficiency at U
out rated
, I
out rated
120 V / 230 V AC approx.
88.0 % / 89.0 % 88.6 % / 90.2 % 92.2 % / 93.0 % 94.0 % / 95.5 %
Power loss at U
out rated
, I
out rated
120 V / 230 V AC approx.
12 W / 12 W 16 W / 14 W 21 W / 19 W 31 W / 23 W
Power loss when idling
120 V / 230 V AC approx.
1.5 W / 2.3 W 1.3 W / 2 W 2.6 W / 2.2 W 2.5 W / 2.5 W

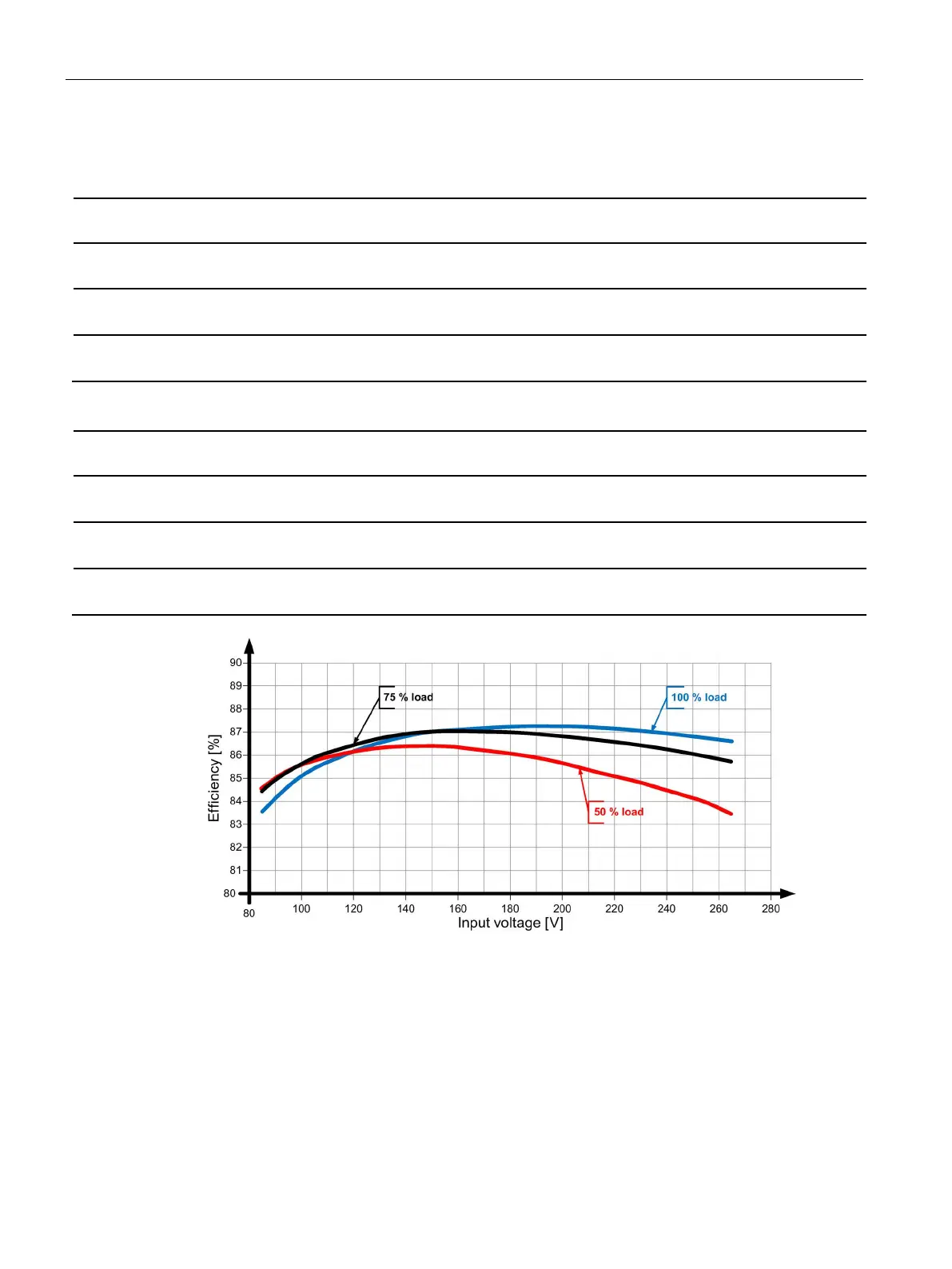

Figure 6-12 Efficiency 6EP3323-7SB00-0AX0
