Mounting position, mounting clearances
4.2 Other mounting positions
SITOP PSU6200 1ph
30 Manual, 03.2019, A5E44623264-1-76
4.2.3 6EP3333-7LB00-0AX0

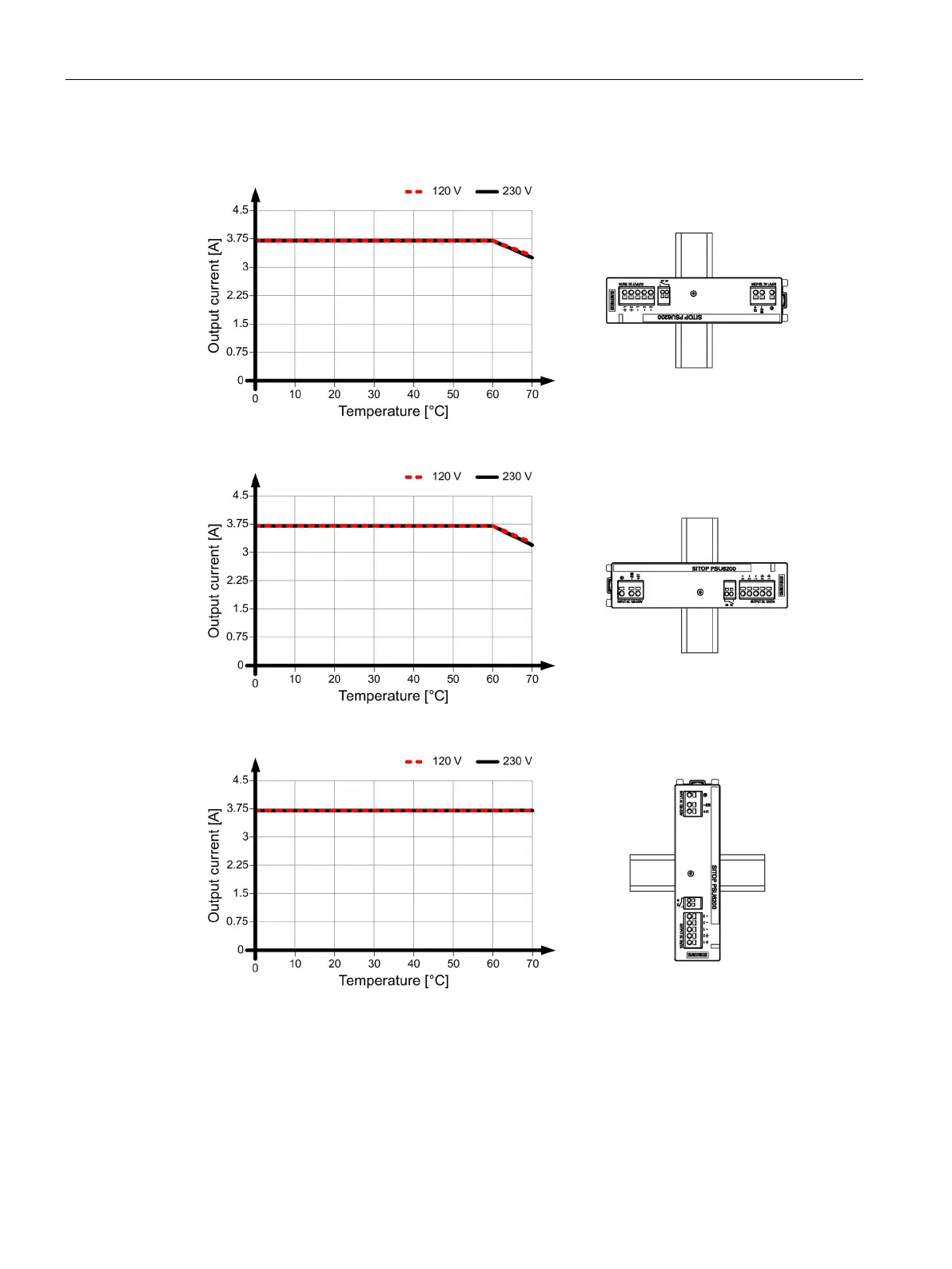

Figure 4-18 6EP3333-7LB00-0AX0 mounting position 1
Figure 4-19 6EP3333-7LB00-0AX0 mounting position 2
Figure 4-20 6EP3333-7LB00-0AX0 mounting position 3
