Description, device design, dimension drawing
2.1 Device description
SITOP UPS1600 / UPS1100
18 Manual, 04.2017, A5E37775406-8-76
The SITOP UPS1100 battery modules consist of a battery holder with two maintenance-free,
closed lead or LiFePO batteries with terminals for the connection cables to the
SITOP UPS1600 uninterruptible power supply. The UPS1100 contains a printed-circuit
board for monitoring the battery functions and the communication with the SITOP UPS1600.
A green LED lights continually to indicate that there is a communication connection to the
SITOP UPS1600. The LED flashes when the batteries are being replaced or for faults and
alarms.
Note
Battery module UPS1100 5
Ah with LiFePo batteries can only be used in conjunction with
UPS1600 from software version V2.1.
Up to 6 SITOP UPS1100 of the same type can be connected in parallel with a
SITOP UPS1600.
When replacing a battery, see Chapter Battery replacement (Page 208).
Fuses F1/F2 (F2 only for 7 Ah and 12 Ah)
Mounting rail holder (not for the 7 Ah and 12 Ah versions)

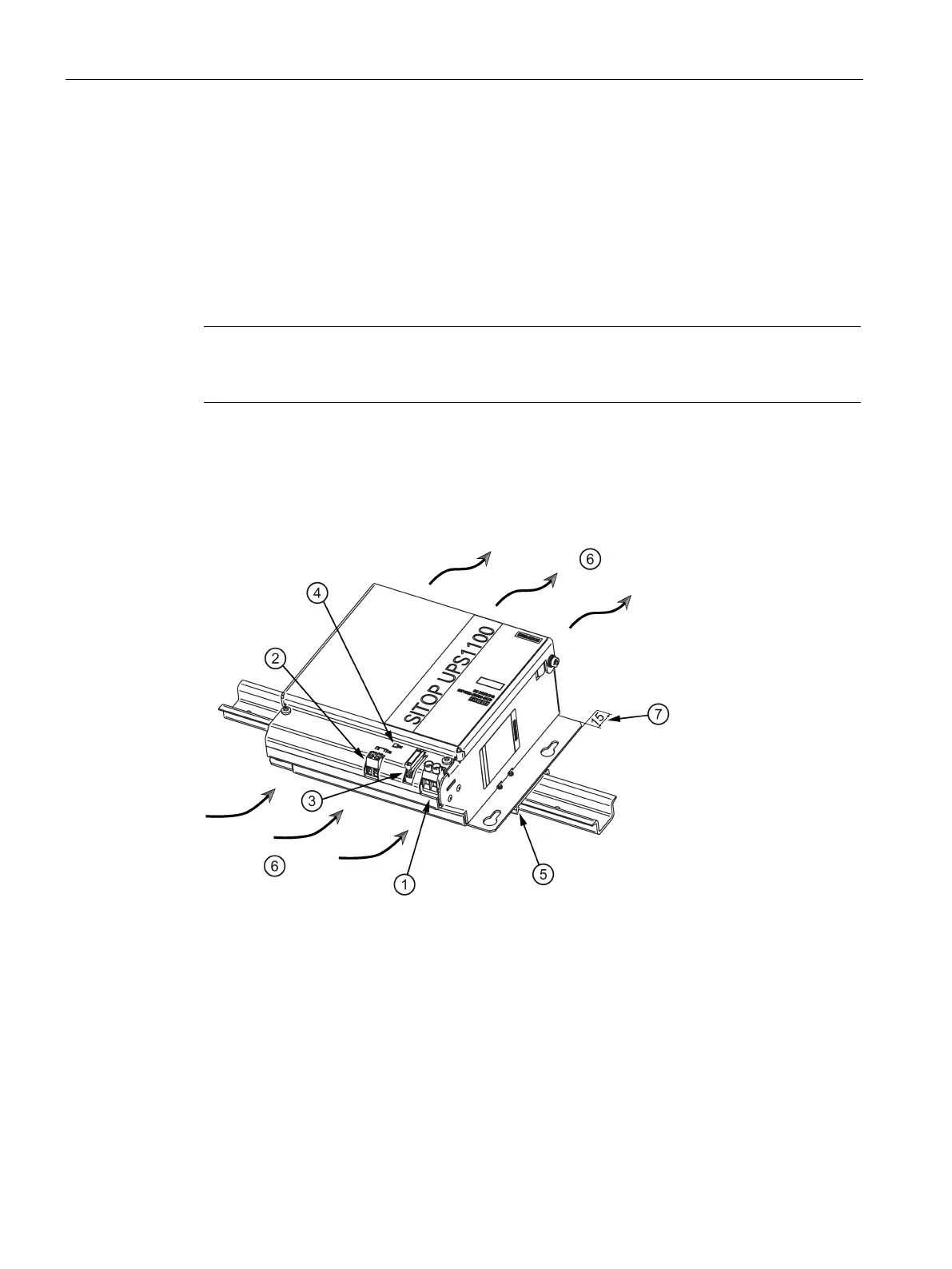

Figure 2-2 SITOP UPS1100 design (example 6EP4133-0GB00-0AY0)
