Mounting position, mounting clearances
6
6.1
SITOP UPS1600
6.1.1
Standard mounting position
The device is mounted on standard mounting rails EN 60715 35×7.5/15. The device must be
mounted vertically in such a way that the input terminals and the output terminals are at the
bottom to ensure correct cooling.
A clearance of at least 50 mm should be maintained above and below the device.
No clearance is required at the side.

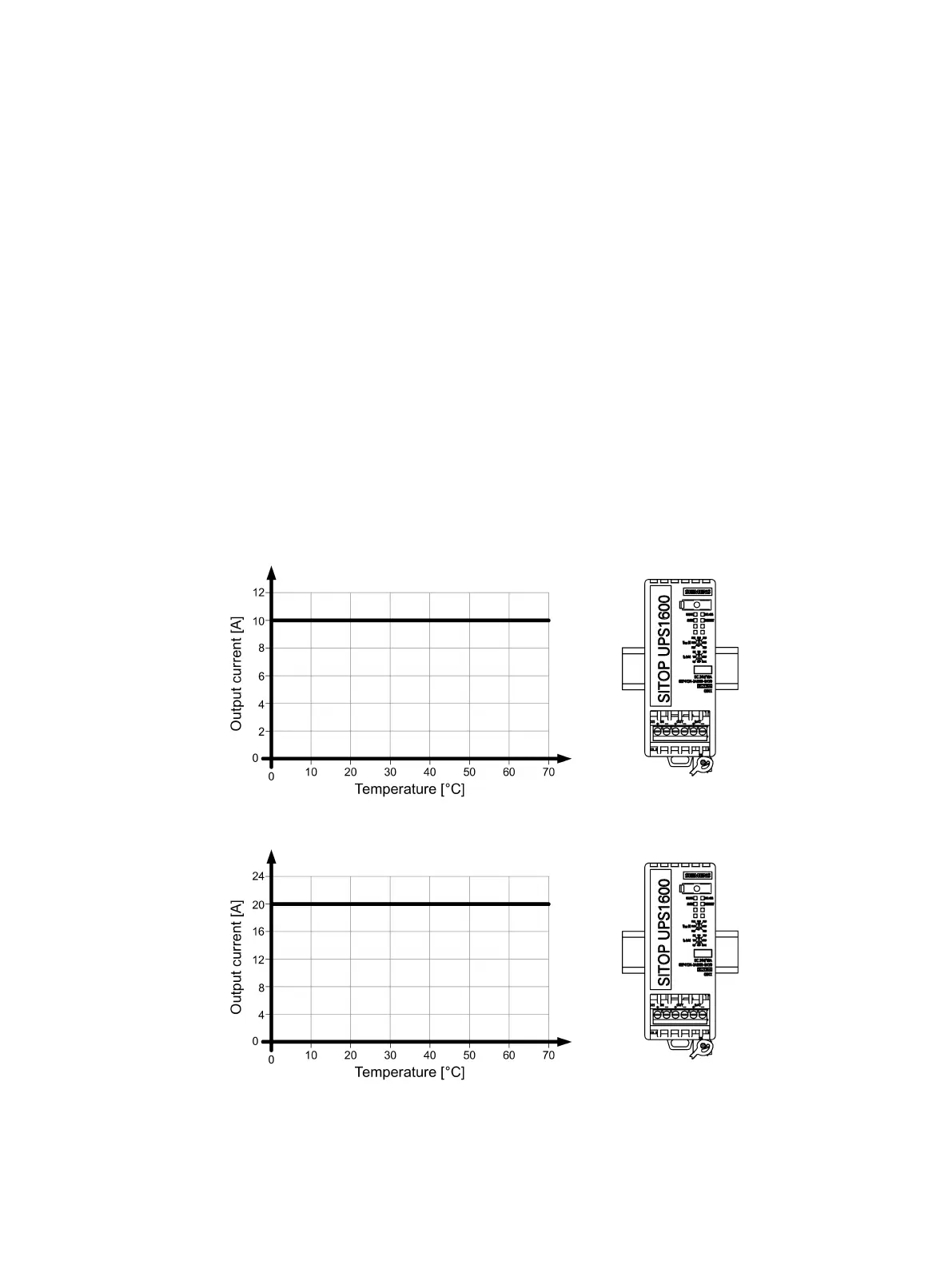

Output current as a function of the ambient temperature
Figure 6-1 6EP4134-3AB00-... Output current in the standard mounting position
Figure 6-2 6EP4136-3AB00-... Output current in the standard mounting position
