Jog key
OFF key
ON key
Key for toggling between control levels
Lower key
Raise key
Reversing key
    
  
 


LCD (4 lines x 16 characters)
Sign key
Reset key (acknowledge)
0 to 9: number keys
Jog789
P
Reset
+/-
0
456
123
O
I
Fault
Run
9-pole SUB-D connector
on rear of unit
LED green
LED red

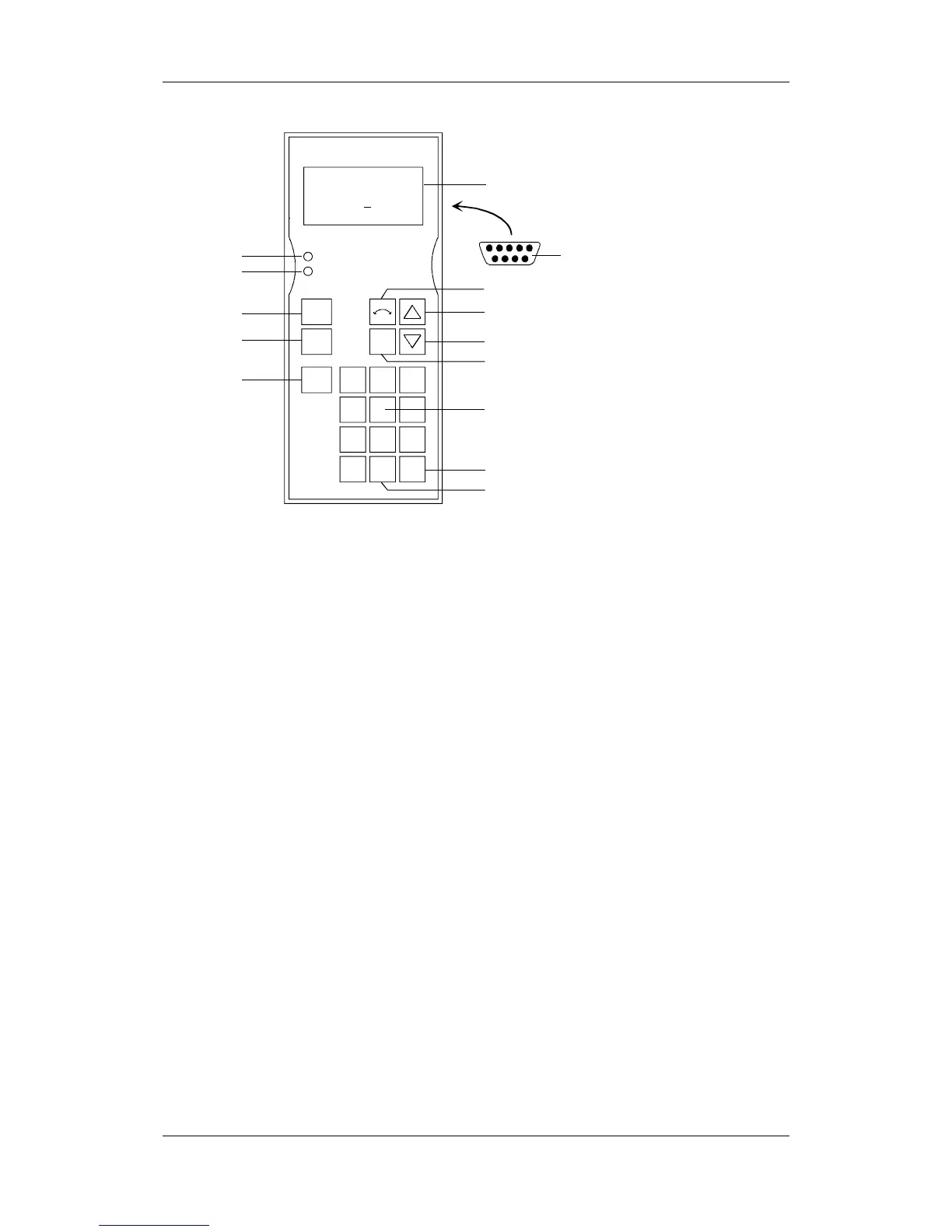

Fig. 8-15 View of the OP1S
