2 CONTROLS
The SRM9022 Controller Microphone has the following features:
• 6 programmable direct Function Buttons.
• 10 additional indirect Function Buttons (keys 0 – 9).
• 1500 Channels.
• 40 Zones.
• 250 Channels per zone.
• Liquid Crystal Display (LCD) 102 x 64 graphic display. Eight lines of 14 characters
(small font). Three fonts, small medium and large. Context based soft menu labels.
• Light Emitting Diode (LED) indicator.

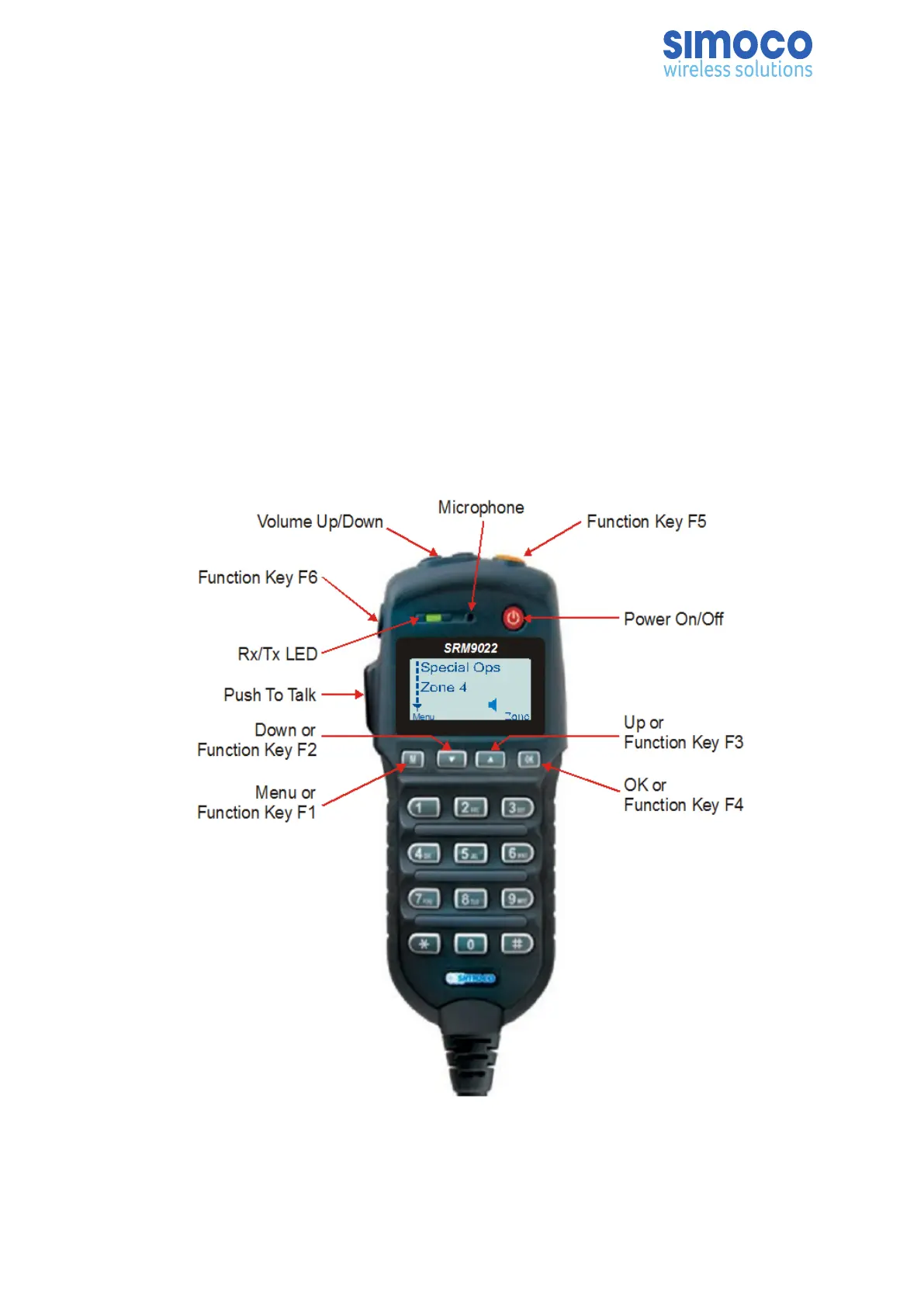

The controls on the SRM9022 Controller Microphone are shown below in Figure 1
Figure 1: SRM9022 Controller Microphone.
The functions of each of the controls are detailed in below Table 1
Doc Number: TNM-U-E-0055 ISSUE 4.0 Page 23
