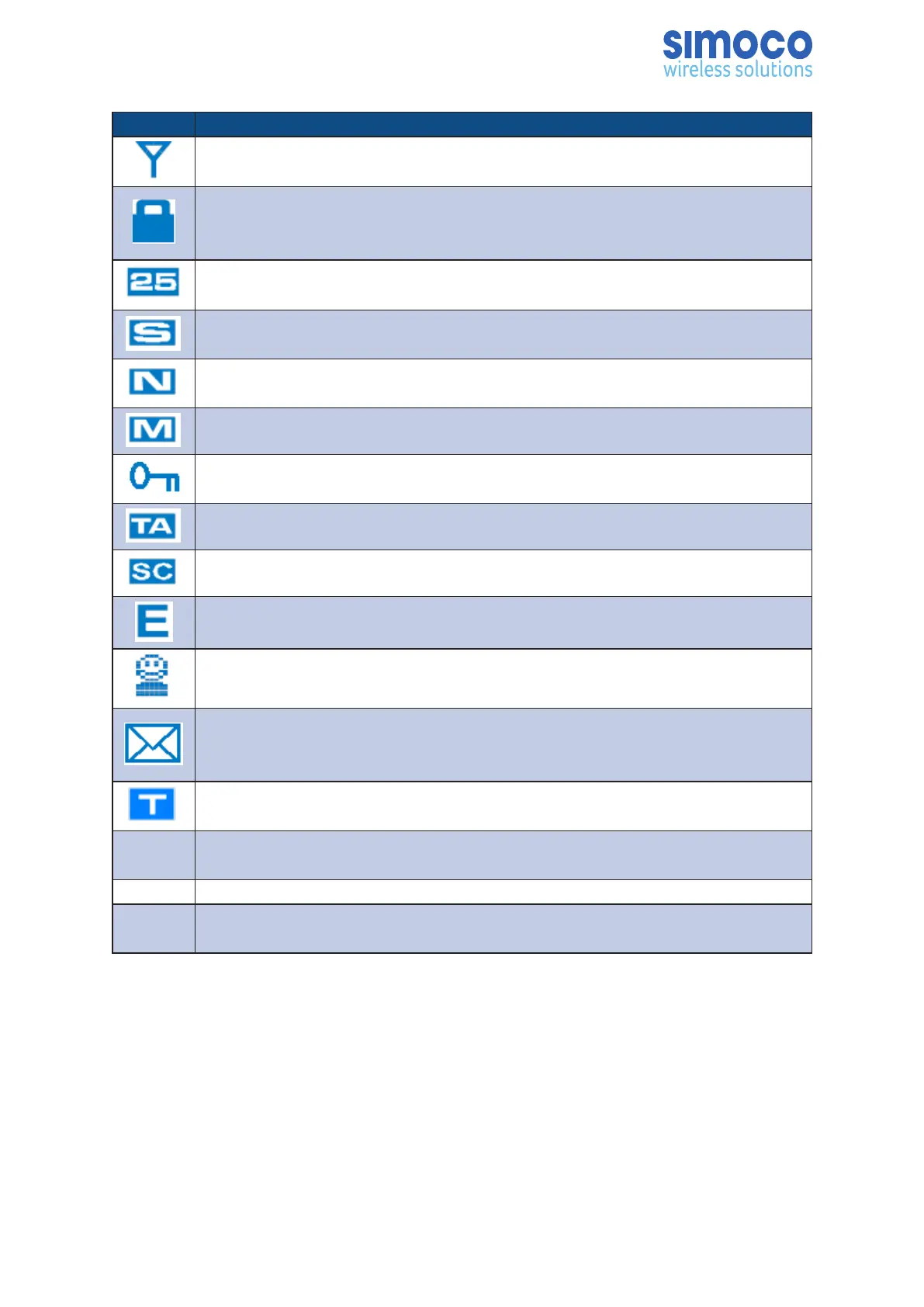

ICON INDICATION
Received Signal Strength Indication (RSSI). A stronger signal will display
more bars above the “antenna” icon.
Encryption Indicator. The icon is shown when the selected channel is
programmed for encryption. If an unencrypted signal is received, the icon
will not be displayed.
Digital Mode Indicator.
Selective Mute. Only radio signals specifically directed to the user or the
channel’s defined talk group will be heard on the speaker.
Normal Mute. Only radio signals from the users own network will be heard
on the speaker.
Monitor. All P25 digital radio signals on the channel will be heard.
Key-lock indicator. All keys except PTT, or any function assigned as Alarm,
will be disabled. Press the ‘OK’ key for 2 seconds to unlock all keys.
Talk Around enabled indicator. When shown, Talk Around is active.
Scrambler indicator (analogue only).
Emergency mode. Blinking icon indicates that the emergency button has
been pressed.
Individual Addressing Mode. When shown, the radio will transmit to an
individual address instead of a talk group.
Envelope Icon. If icon is steady, it indicates there is one or more stored
messages; if icon is flashing, it indicates there is an unread message(s)
stored.
Trunking Icon. Displayed when the radio is in Trunking Mode.
C
Connecting icon. Shown when a text message is being sent and the
connection is in progress.
! Connection Fail icon. Shown when a text message transmission has failed.
Ø
The asterisk symbol indicates when the radio has been stopped on a scan
channel.
Table 3: Icon Details.
Doc Number: TNM-U-E-0055 ISSUE 4.0 Page 27
