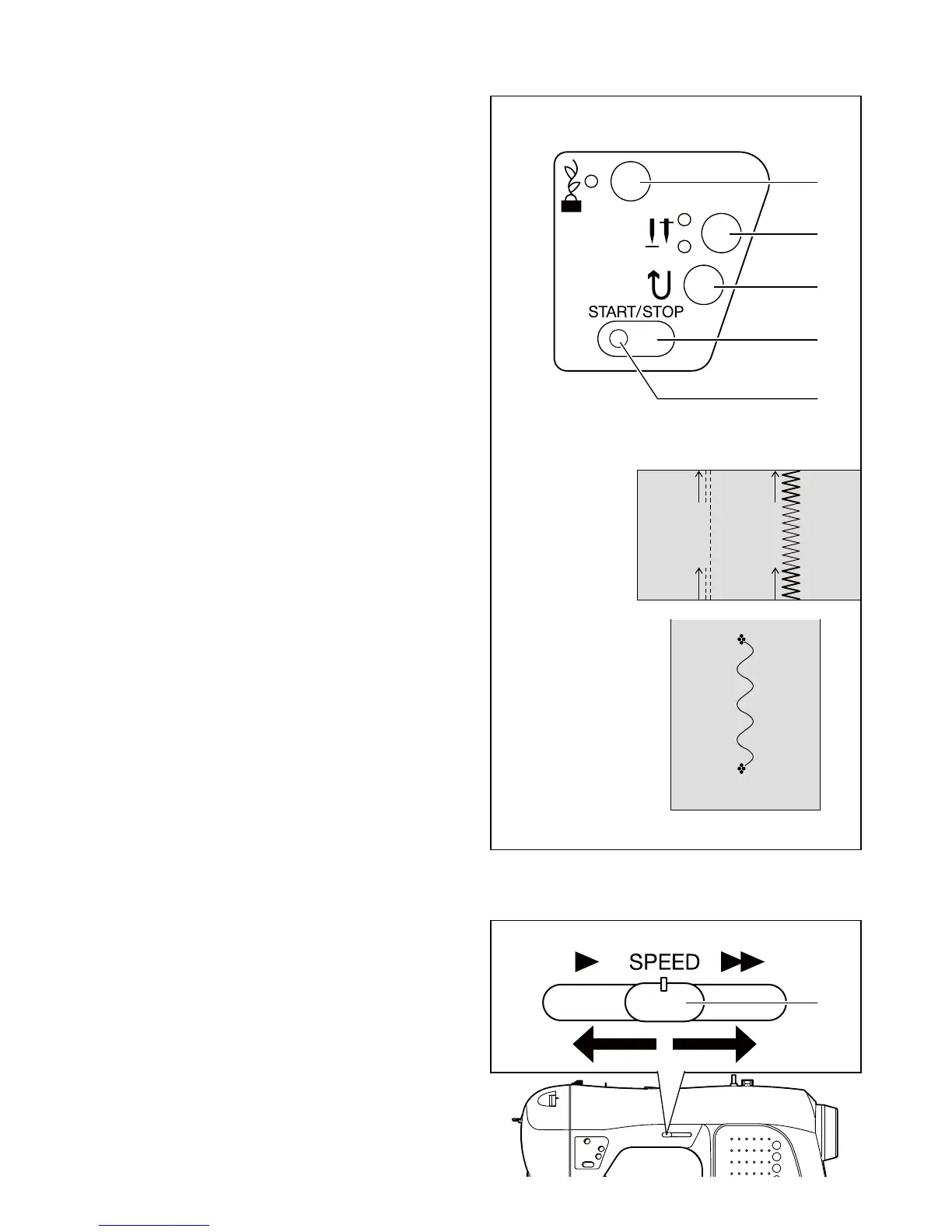

FUNCTIONS OF OPERATION SWITCH
PANEL
1. TACKING STITCH MODE BUTTON
3XVKWKLVEXWWRQDQGWDFNLQJVWLWFKFDQEHGRQHZLWK/('OLW
7KHVHZLQJPDFKLQHPDNHVWLQ\WDFNLQJVWLWFKHV WR WLH RII
WKHVHZLQJRQDOOSDWWHUQV7KHSRVLWLRQRIWKHWDFNLQJVWLWFKHV
ZLOOEHDWWKHH[DFWVSRWLQWKHSDWWHUQZKHUHWKHWDFNLQJVWLWFK
button is pushed.
2. NEEDLE STOP POSITION SELECTOR BUTTON
When the machine is turned on, needle is set at its up-stop
position with upper LED lamp lit. When the button is pushed,
needle is set at its down-stop position with lower LED lamp
lit. Push it again and it will return to its up-stop position with
upper LED lamp lit.
3. REVERSE STITCH BUTTON
Reverse sewing is carried out by pushing the reverse stitch
button. The machine will sew 4 stitches in reverse and stop.
4. START/STOP BUTTON
When the Start/Stop button is pushed, the machine starts
slowly, and when the button is pushed once more, the
machine stops.
However, when foot control is plugged, the Start/Stop button
will be inactive.
5. LED INDICATOR
¿
Green light indicates machine is ready to start.
¿
Red light indicates machine is operating.
¿
Flashing red light indicates a problem or an error.
* Flashing for 2 - 3 seconds shows that an incorrect
operation was made.
* Continuous flashing indicates that the machine
malfunctions.
6. SPEED CONTROL LEVER
Sliding the lever sets desired sewing speed. When foot control
is used, the lever serves as a top speed limiter.
Reverse stitch function
for straight and zigzag
stitches
Fonction couture
arrière pour les points
droits et zigzags
Función de costura
hacia atrás para
costuras rectas y
zigzag
7DFNLQJVWLWFKIXQFWLRQ
for tie-off of other
stitches
Fonction de point
GHIDX¿ODJHSRXUOD
jonction avec d’autres
points
Función de remate
para terminación de
otras puntadas.
