Singer XL-420 User Manual

62
2
3
1
2
1
Connector cap
Couvercle de connecteur
Tapa de conector
Connector
Connecteur
Conector
Carriage
Chariot
Carro
Release lever
Support de cerceau
Palanca de liberación
Handle
Poignée
0DQJR
Release lever
Support de cerceau
Palanca de liberación
Handle
Poignée
0DQJR

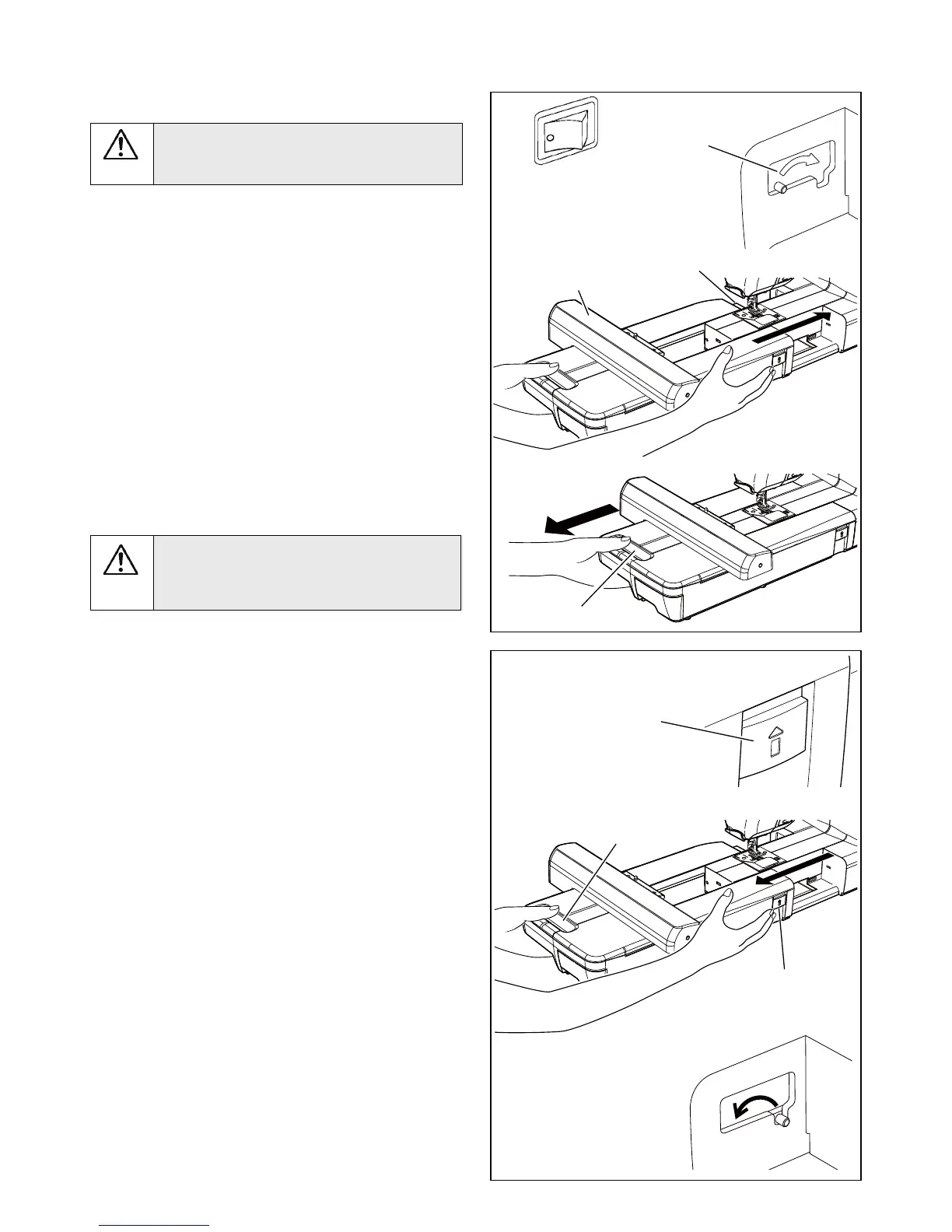

ATTACHING EMBROIDERY UNIT
1. Turn off the machine.
Turn connector cap to the right to open.
 6OLGH WKH HPEURLGHU\ XQLWRQWR PDFKLQH ¿WWLQJ FRQQHFWRUV
on the machine and embroidery unit. Slide the embroidery
XQLWDVIDUDVLWZLOOJRXQWLOLWFOLFNVLQWRSODFH
 7RPDNHVXUHWKDWWKHHPEURLGHU\XQLWLVIXOO\HQJDJHG
hold the handle of the embroidery unit and pull it towards
WKHOHIWGLUHFWLRQFKHFNLQJ WKDW WKHHPEURLGHU\XQLWGRHV
not detach.
Note:
If embroidery unit is not securely installed, the finished
HPEURLGHU\PD\EHGLVWRUWHG0DNHVXUHWKDWWKH
embroidery unit is pushed in as far as it will go.
CAUTION
Always be sure to turn off power to machine
before installing embroidery unit.
REMOVING EMBROIDERY UNIT
* Turn off the machine.
* Remove embroidery hoop from machine.
(Refer to page 70 - 71.)
1. Holding handle of embroidery unit, carefully slide toward
the left while pressing release lever.
Note:
Do not pull carriage when removing embroidery unit.
2. Turn the connector cap to the left to close for general
sewing.
CAUTION
Don’t push the carriage or put strong pressure
on the embroidery unit while attaching or during
the embroidering process. Doing so may cause
damage to the embroidery unit.
