Variable loading floor in the luggage compartment (Estate)
Positions of the variable loading floor
pav. 154

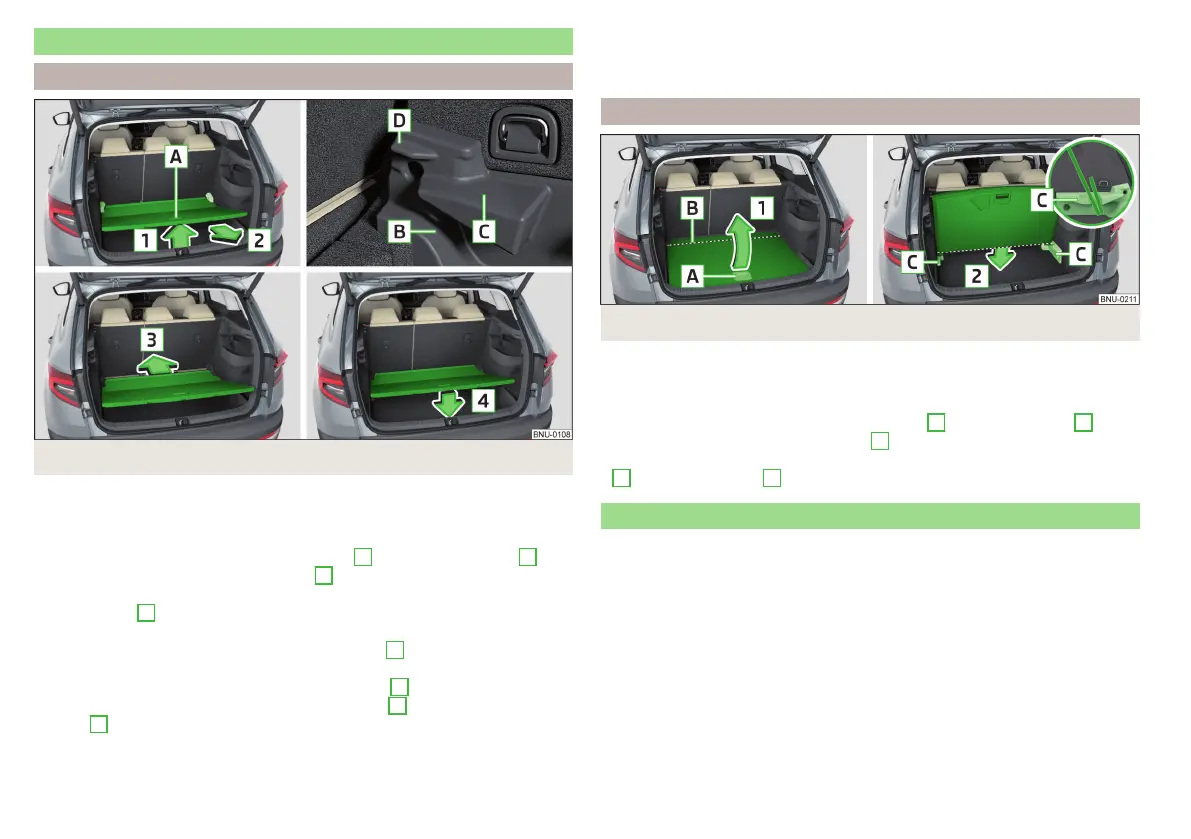

Adjusting the variable loading floor
The variable loading floor can be adjusted to the upper, lower position, or a
connection can be formed to the seat backrests that have been folded for-
wards.
›
Raise the variable loading floor by the handle
A
in direction of arrow
1
and
move partially in the direction of arrow
2
» pav. 154.
›
To set in the upper position, position the variable loading floor in the front
area on edge
C
.
›
To set to the lower position Lay the variable loading floor on the luggage
compartment flooring and the front area on edge
B
.
›
To form a connection to seat backrests that have been folded forwards, lay
the variable loading floor in the front area on edge
D
.
›
Lay the variable loading floor in direction of arrow
3
up to the latch and the
arrow
4
.
The area under the variable loading floor can be used to stow small objects.
The maximum permissible load of the variable loading floor is 75 kg. For the
transport of heavy loads, adjust the variable loading floor in the lower position.
„Parking position“
pav. 155
Adjustment options for the variable loading floor
For instance, to reach the spare wheel more easily, the variable loading floor
can be set to the „parking position“.
›
Set the variable loading floor to the upper position.
›
Lift the variable loading floor using the handle
A
in the direction of
1
. The
variable loading floor is kinked in area
B
„“ » pav. 155.
›
Push the variable loading floor that is „kinked“ in the direction of the arrow
2
into the side panel
C
.
Transportation on the roof rack
The roof cross beams can be attached to the roof rail depending on the equip-
ment fitted.
Mounting and dismounting of the roof bars is carried out according to the in-
structions provided.
Roof load
The maximum permitted weight of the load incl. the carrier is 75 kg.
