4.2 CONTROLLER PANEL

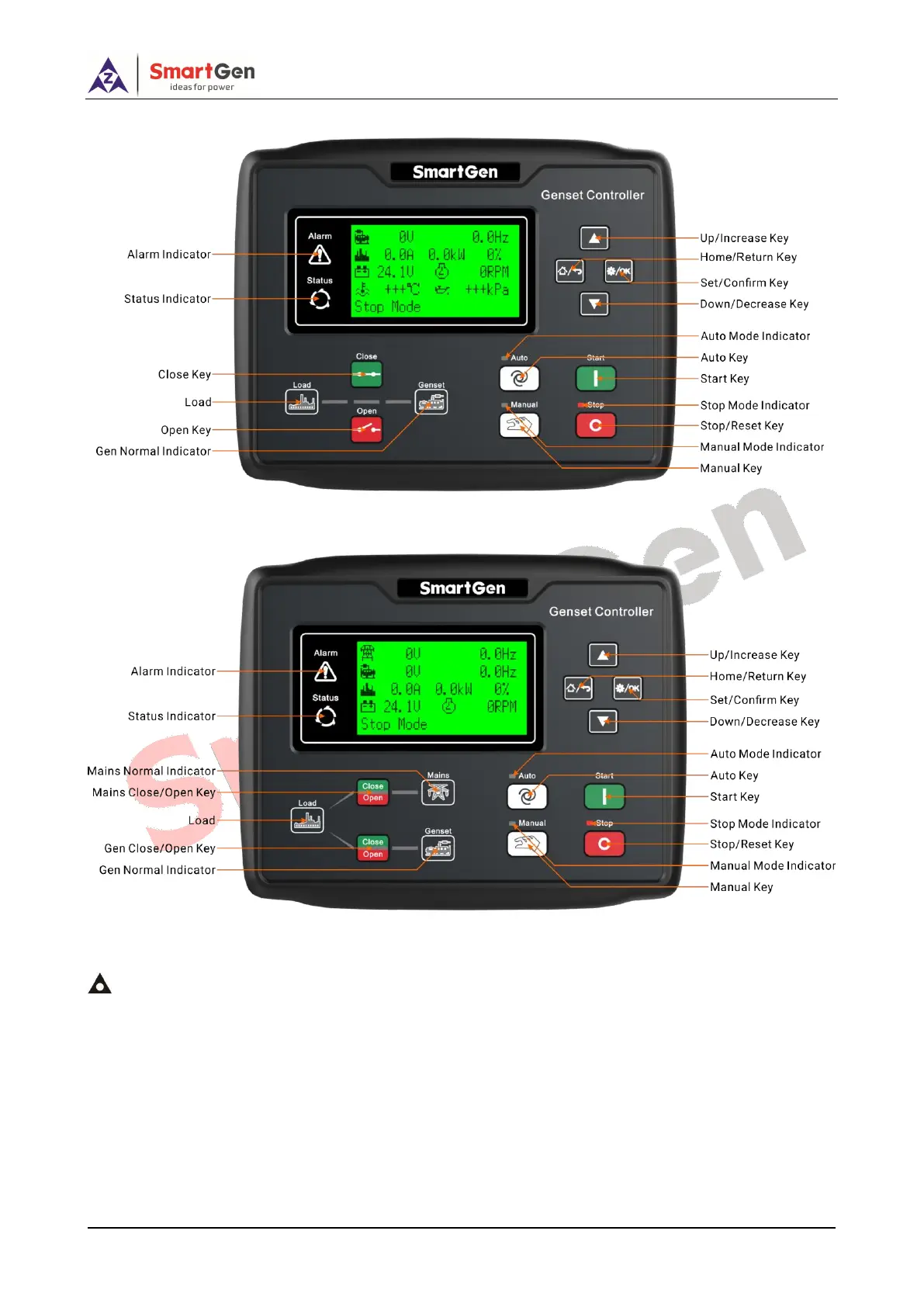

Fig.1 – HGM6110 (HGM6110N/NC/CAN) Front Panel Indication
Fig.2 – HGM6120 (HGM6120N/NC/CAN) Front Panel Indication
NOTE: Partial indicator states:
Alarm Indicator: slowly blink when warning alarms; fast blink when shutdown alarms; won’t illuminate when there is no
alarm.
Status Indicator: won’t illuminate when genset stand by; blink 1 time per second in start or stop process and always
illuminate when runs normally; for HGM6100CAN, press start key in auto mode or manual mode, ECU power outputs and
status indicator always illuminates.

Smartgen HGM6100N Series Specifications

General

Brand	Smartgen
Model	HGM6100N Series
Category	Controller
Language	English
