A. Acceleration Rate - Rate at which the car accelerates before reaching maximum speed.
B. High Contract Speed - The maximum speed the car will achieve based on the contract
speed setting and the high valve setting.
C. NTS Buffer Distance: The distance added to the slowdown distance to cut off the high
valves.
D. Deceleration Rate - Rate at which the car decelerates after it reaches maximum speed.
E. Leveling Time - The duration the car moves during level speed before reaching the
destination.
F. Destination Offset - The distance from the destination position that the car will cut its
leveling valve when moving on a non-releveling run/correction run.
G. Slowdown Distance - Sets the distance from its destination where the car must cut its
high-speed valves when moving at a speed above the speed threshold.
H. TSRD Distance - The safe distance from the top and bottom floor level for a car to stop
before it hits the buffer. If the car is traveling more than 50 fpm within this distance, a
TSRD fault occurs and the car performs an emergency stop.
Place the car in Normal Operation. Prior to learning the hoistway verify the number of floors
and openings are correct. Learning the hoistway allows for learning the positioning of all floors.
1.1 Number of Floors

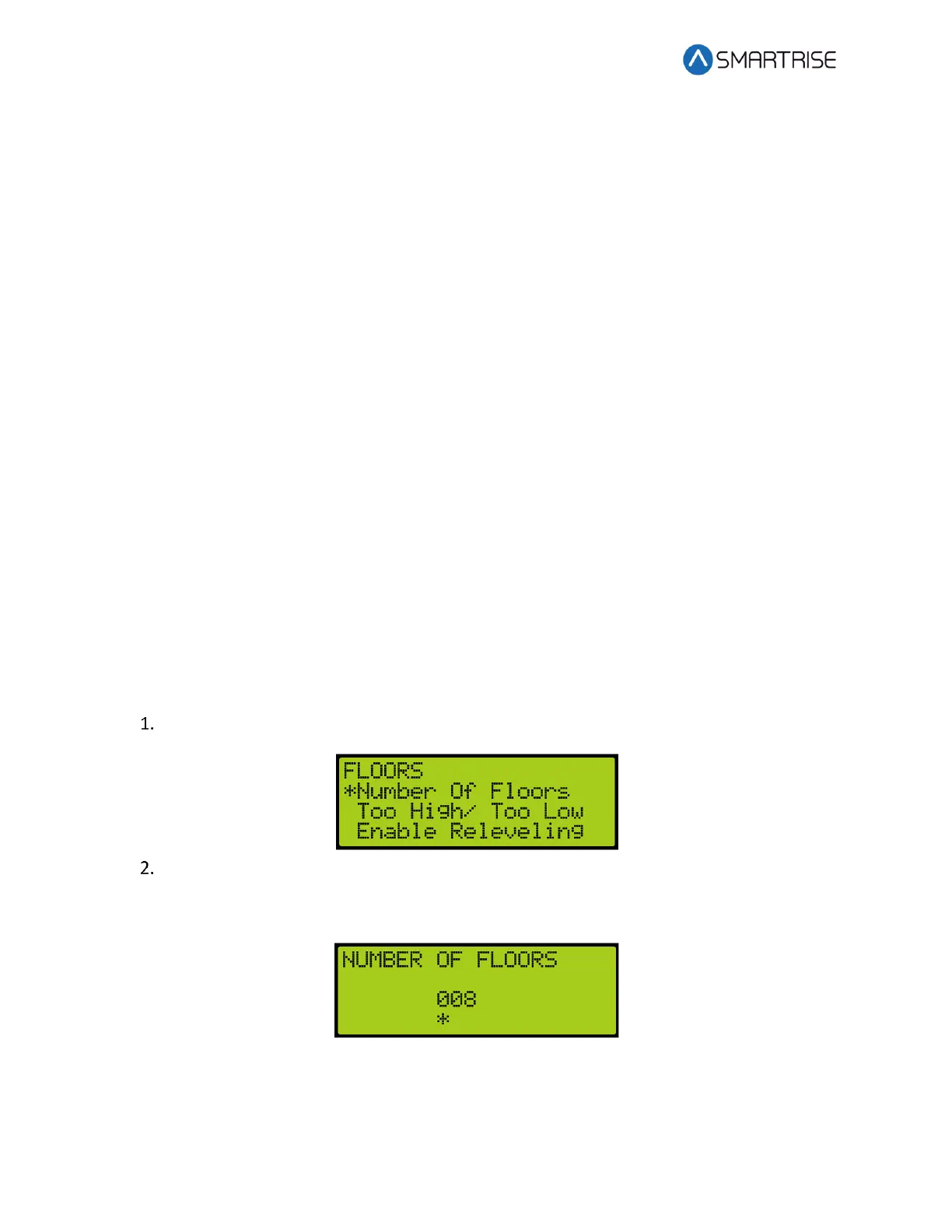

Navigate to MAIN MENU | SETUP | FLOORS |NUMBER OF FLOORS.
Verify the number of floors are correct.
NOTE: The number of floors should include any express zones that are serviced by other
cars in the group. The opening map will reflect the floors the car serves.
