Chapter 3 Transporting and Installation
3.3 Wiring
3-6
35±5
10±5
2000±50
3.3.1 Power Sourse Specification
Confirm that the power supply at your workplace has sufficient capacity and
a voltage within that specified. It is recommended to install ground-fault
circuit interrupter. Rated leakage current:30mA or less.
Table 3-2 Electrical specifications of power supply
Model Number Voltage Rated Current
INR-244-780
INR-244-781
INR-244-782
Single Phase
100VAC~240VAC+/-10%, 50/60Hz
(Over Voltage Category I or II)
5.5A(at 100VAC)~2.5A
(at 240VAC)
3.3.2 Power Supply Cable and Connector
The power supply shall be connected with supplied power supply cable.
Before wiring confirm the power supply at factory has enough capacity and
the voltage is within specified value (with reference to electrical
specifications of the power supply). This product is provided with a power
supply cable.
 Power supply Cable

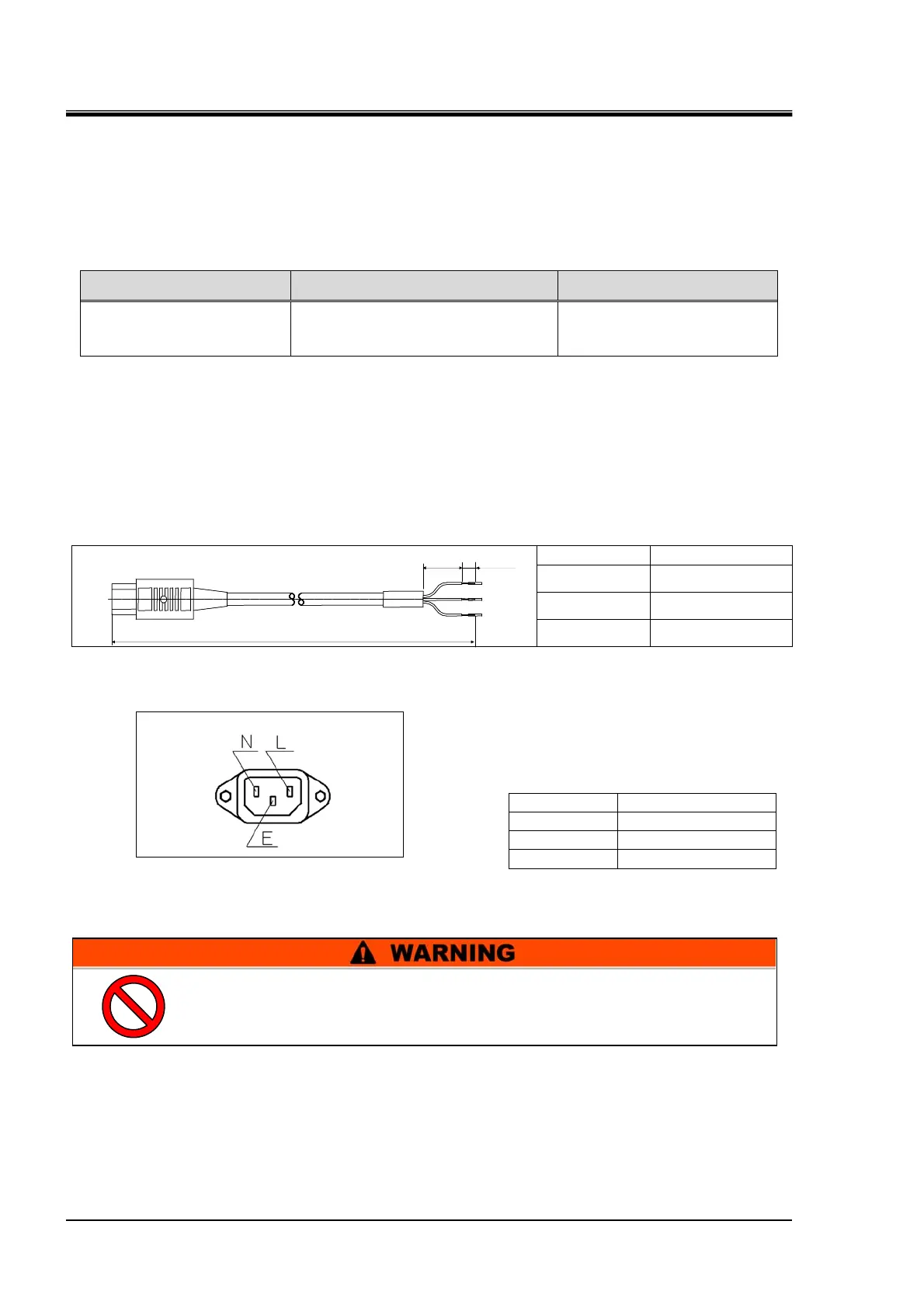

Table 3-3 Power Supply Cable
Content
Black1 AC100-240V (L)
Black2 AC100-240V (N)
Green/Yellow PE
 Power supply connector
IEC60320 C-14 equivalent
Male
Pin
ITEMS
L 100 ~ 240VAC
N 100 ~ 240VAC (N)
E PE
Fig. 3-2 Power supply connector
Table 3-4 Power supply connector
z The cables attached to this product are designed specifically for
the product. Do not use them for other purposes. Also, never use
other cables for this product.
