Chapter 7 Appendix

7.1 Outline Dimensions

7-1

Chapter 7 Appendix

7.1 Outline Dimensions

7.1.1 INR-244-780

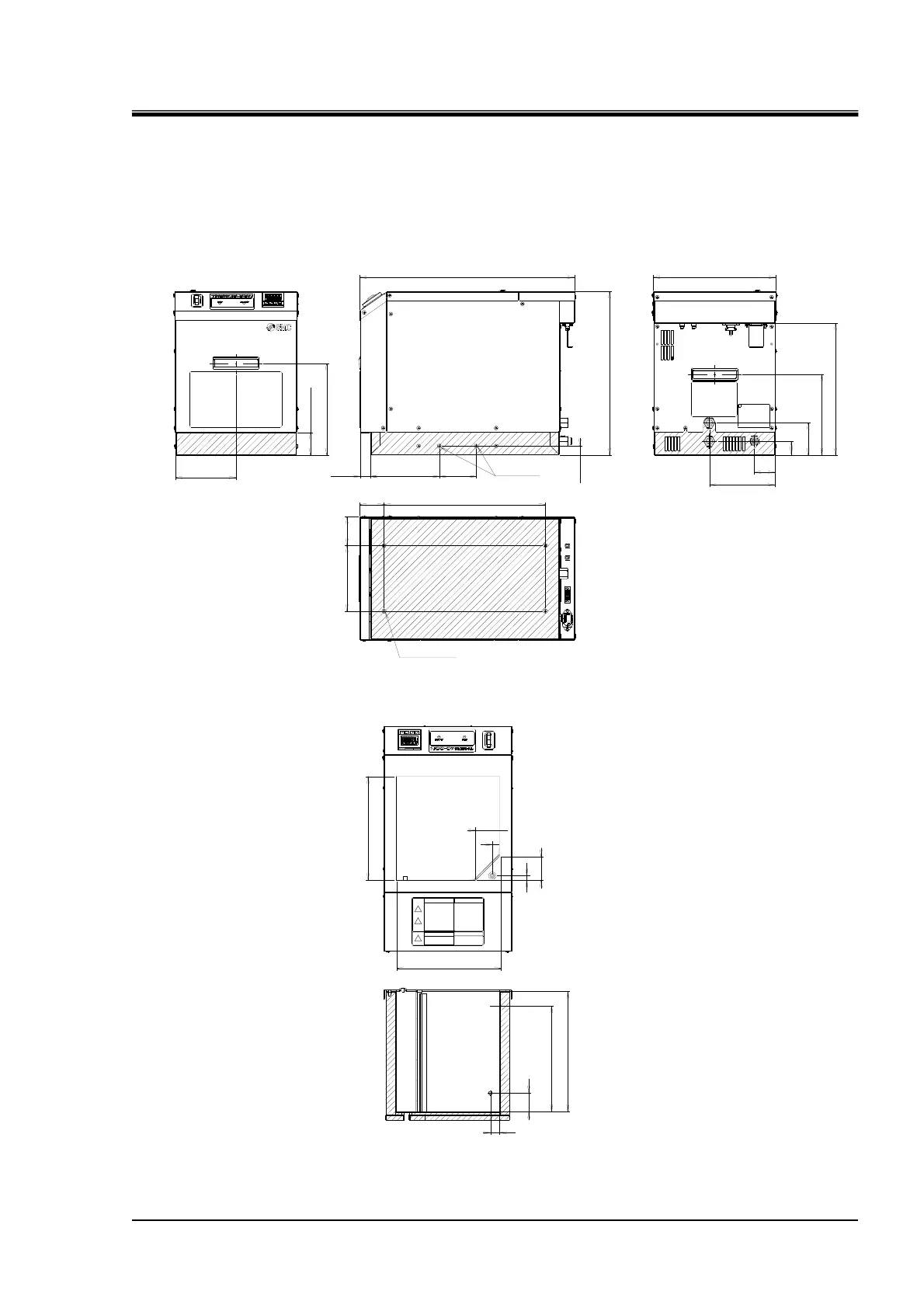

Fig. 7-1 Overall sizes of product (INR-244-780)

Fig. 7-2 Bath dimensions (INR-244-780)

39 Max.

216

liquid level 220

Tank depth

250

62142

2xM6

4xM6

48.5

198

131

466

353

22 150 80

266

175

285

142

35053
