SMC Networks INR-244-780 User Manual

HEC-OM-S002
Chapter 3 Transporting and Installation
3.3 Wiring
3-7

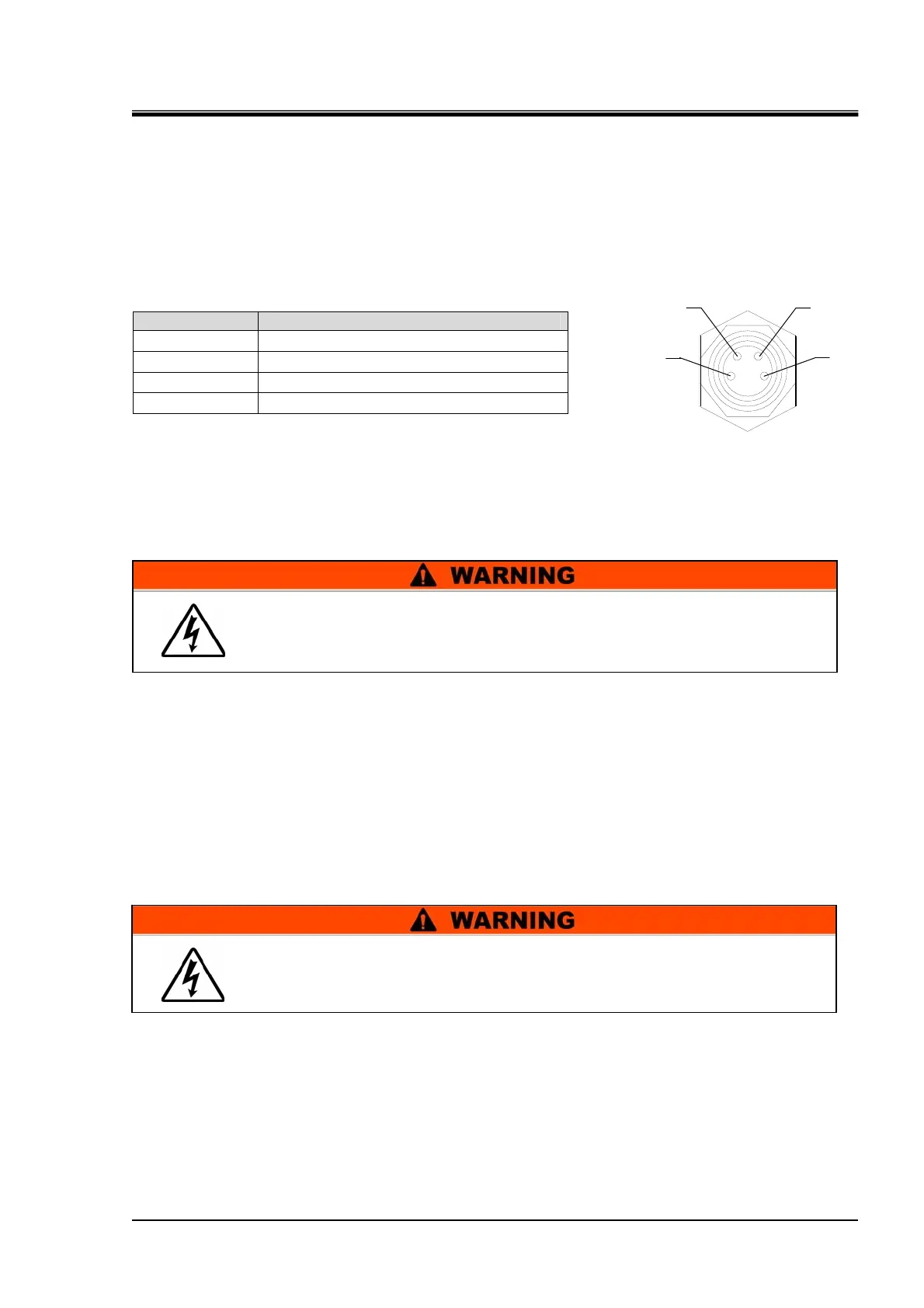

3.3.3 Connector for External Equipment
The communication cable is to be prepared under your responsibility,
referring to the following table.
 EtherCAT connector
M8 connector (socket)
Table 3-5 Communication connector
Pin no. Content
1 TX+
2 RX+
3 RX-
4 TX-
3.3.4 Procedures for wiring instllation
z
Be sure to turn OFF the primary side power.
z
Turn OFF Main power switch of the product.
z
Connect the connector of power cable with Power Supply Connector
firmly.
z
Connect the connector of communication cable with Communication
Connector. (If you need)
z
Connect the power supply cable to the circuit breaker rated at 15A or less
on primary side(your tool side).
4
3
2
1
Fig. 3-3 Ether CAT connector
M8 connector (socket)
z Be sure to turn OFF the primary side (your tool side) power before
connection to this equipment.
z Ensure that the power supply connector is firmly inserted into the
end of Power Supply Connector.
