Chapter 5 Operation
5.1 Operation of Controller
5-6

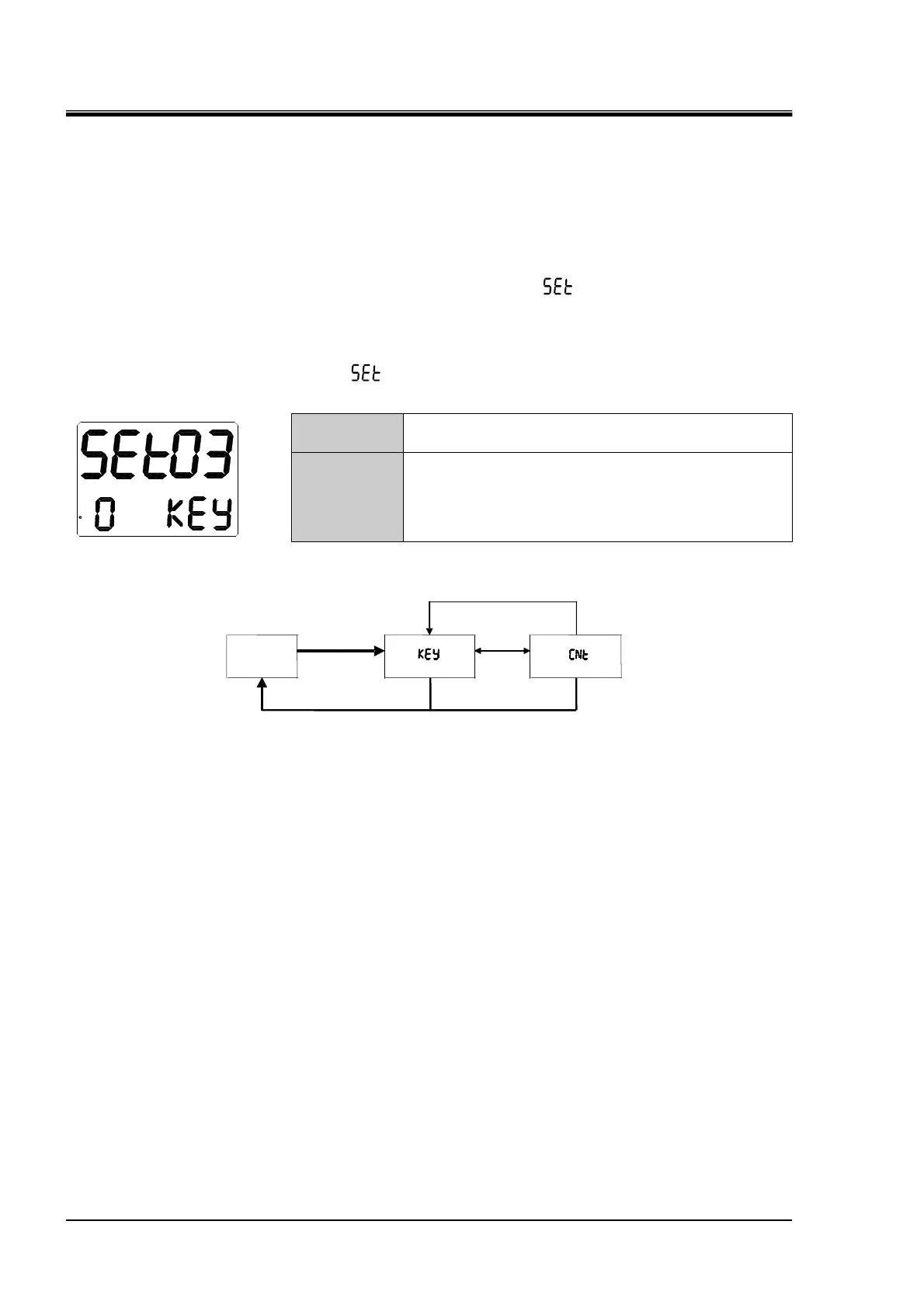

5.1.5 Selection of Setting Mode
Setting mode can be shown by pressing and holding the [MODE] key for
approx. 2 sec.
Pressing the [MODE] key for approx. 2 sec again will return the setting
mode to the normal operation mode.
Setting mode selection is indicated with ”
” and the required setting
mode can be selected by increasing or decreasing the indicated number
with the [▲] or [▼] key.
Setting mode selection / Mode indicator:
Function
Selects mode for each setting.
Select with [▲] or [▼] key.
SV
PV
C
Selectable
setting
3, 4
3: Initial Setting Mode
4: Control Setting Mode
▲ ▼
Key
Press and hold MODE
▲ ▼
Key
key for 2 sec.
Press and hold MODE key for 2 sec.
Operation
mode
SET03
Initial Setting
mode
SET04
Control Setting
mode
