Chapter 7 Appendix
7.3 Performance Chart
7-5
7.3 Performance Chart
The values shown on the performance chart are representative and not
guaranteed. Allow a margin for safety to decide use of the product.
7.3.1 Cooling Capacity

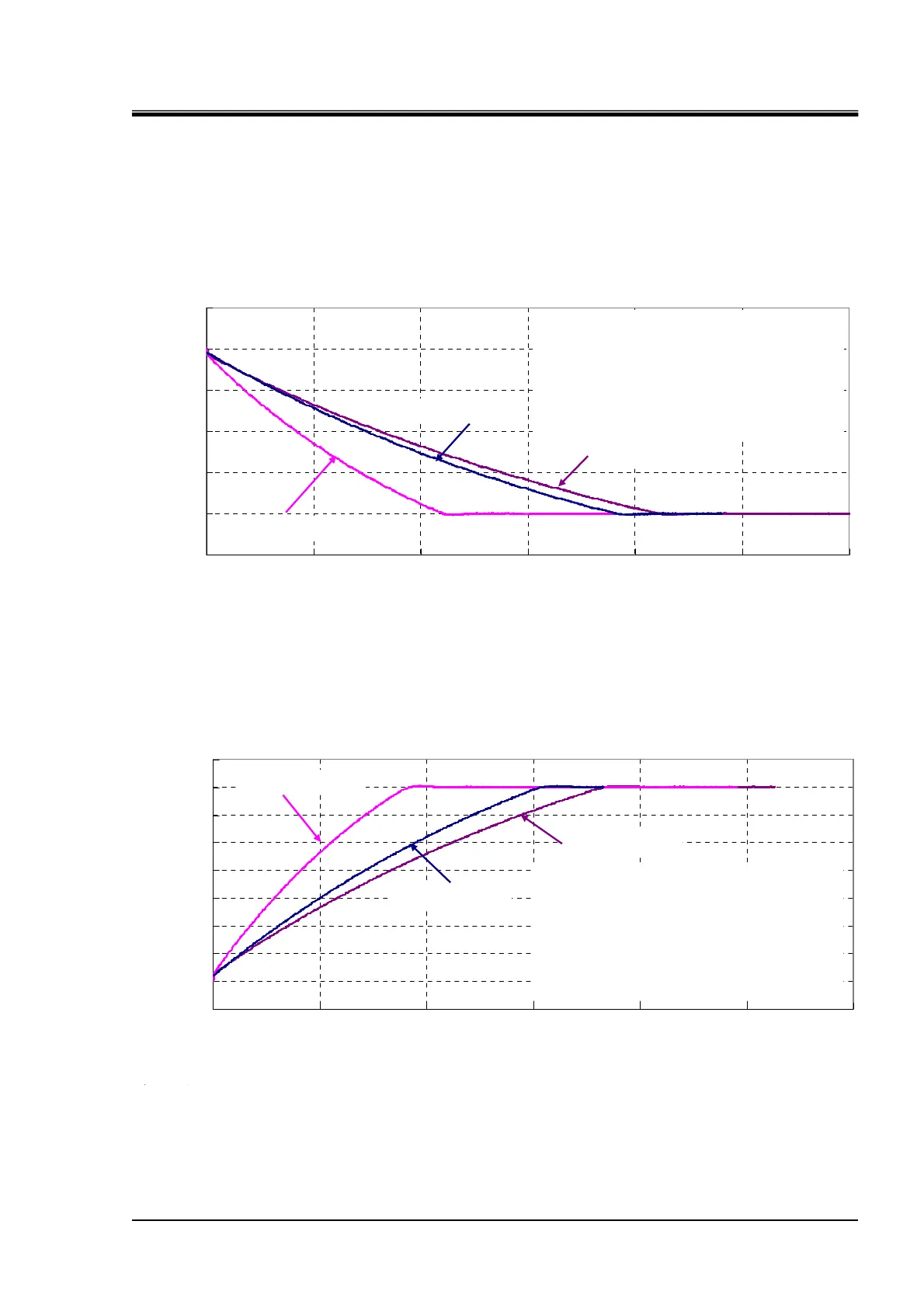

Fig. 7-7 Cooling capacity
7.3.2 Heating Capacity
Fig. 7-8 Heating capacity
0
5
10
15
20
25
30
0 30 60 90 120 150 180
Time(minutes)
Bath fluid temperature(
o
C)
-
INR-244-782
INR-244-781
INR-244-780
Ambient tempeature: 25
o
C
Constant temperature liquid: Water
Liquid measure: Max liquid level
Cooling water: 25
o
C, 3L/min
Shut out from outside with a lid
20
25
30
35
40
45
50
55
60
65
0 30 60 90 120 150 180
Time(minutes)
Bath fluid temperature(
o
C)
-
INR-244-782
INR-244-781
INR-244-780
Ambient tempeature: 25
o
C
Constant temperature liquid: Water
Liquid measure: Max liquid level
Cooling water: 25
o
C, 3L/min
Shut out from outside with a lid
