IN19856
- 13 - Rev 2
7. Summary of Product Elements

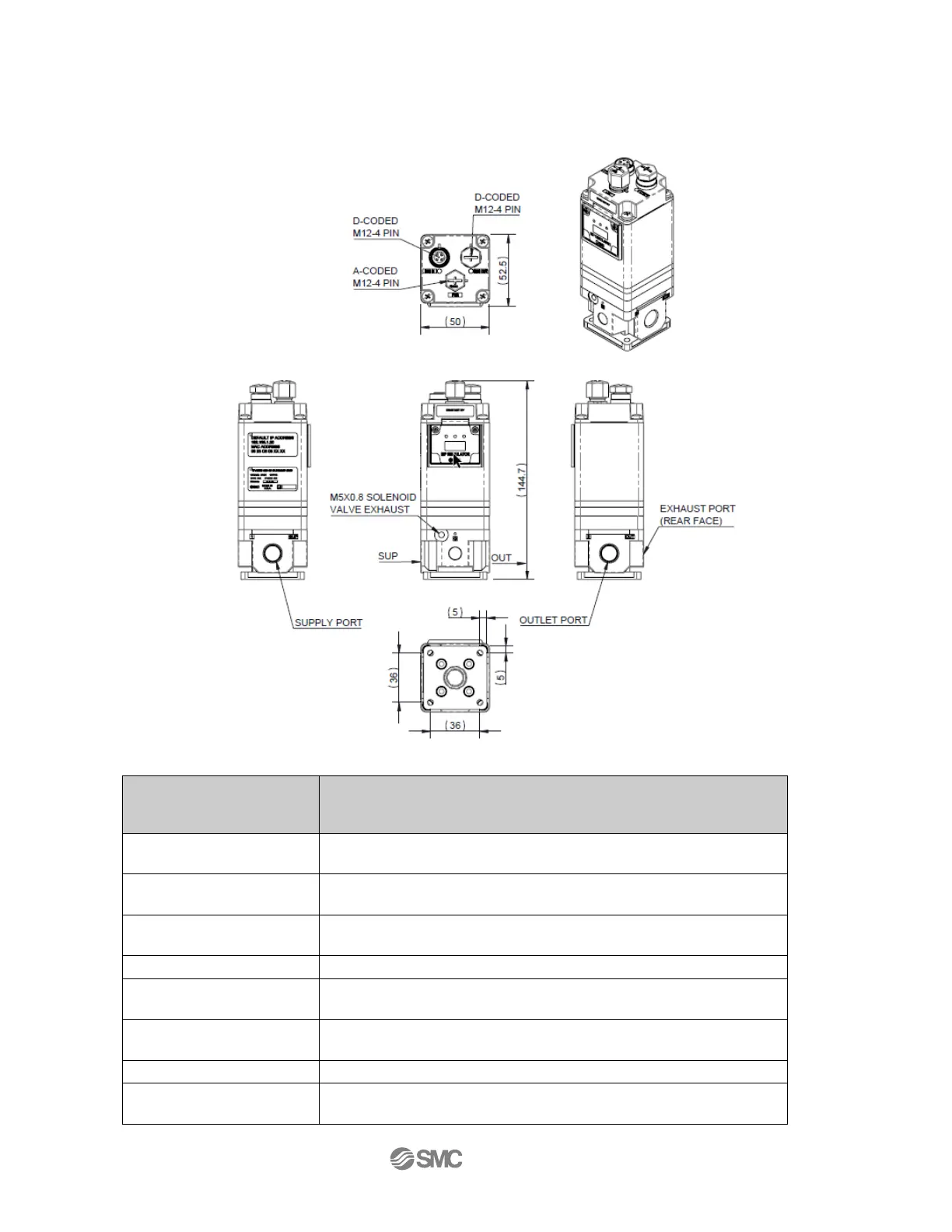

Figure 4 - ITV20XX Drawing
Element
Description
Supply Port Connection
Input Pressure Line Connection (X010, X030, X050) /
Atmosphere Pressure (2090) *
1
Outlet Port Connection
Output Pressure Line Connection (X010, X030, X050) /
Application Vacuum Line Connection (2090) *
1
Exhaust / Vacuum Port
Exhaust Port (X010, X030, X050) / Vacuum Line Connection
(2090) *
1
LED Display window
Network and operating status LEDs *
2
Fieldbus interface
connector (Bus In)
Ethernet connection (M12, 4-pin socket, D-coded) *
3
Fieldbus interface
connector (Bus Out)
Ethernet connection (M12, 4-pin socket, D-coded) *
3
Power supply connector
24 Volt DC input power supply *
3
Seal Cap (Accessory)
Seal cap for unused Fieldbus interface connector (Bus Out);
Seal cap for unused power supply connector *
3
