SMC Networks ITV SEN DUX02357 Series User Manual

IN19856
- 28 - Rev 2

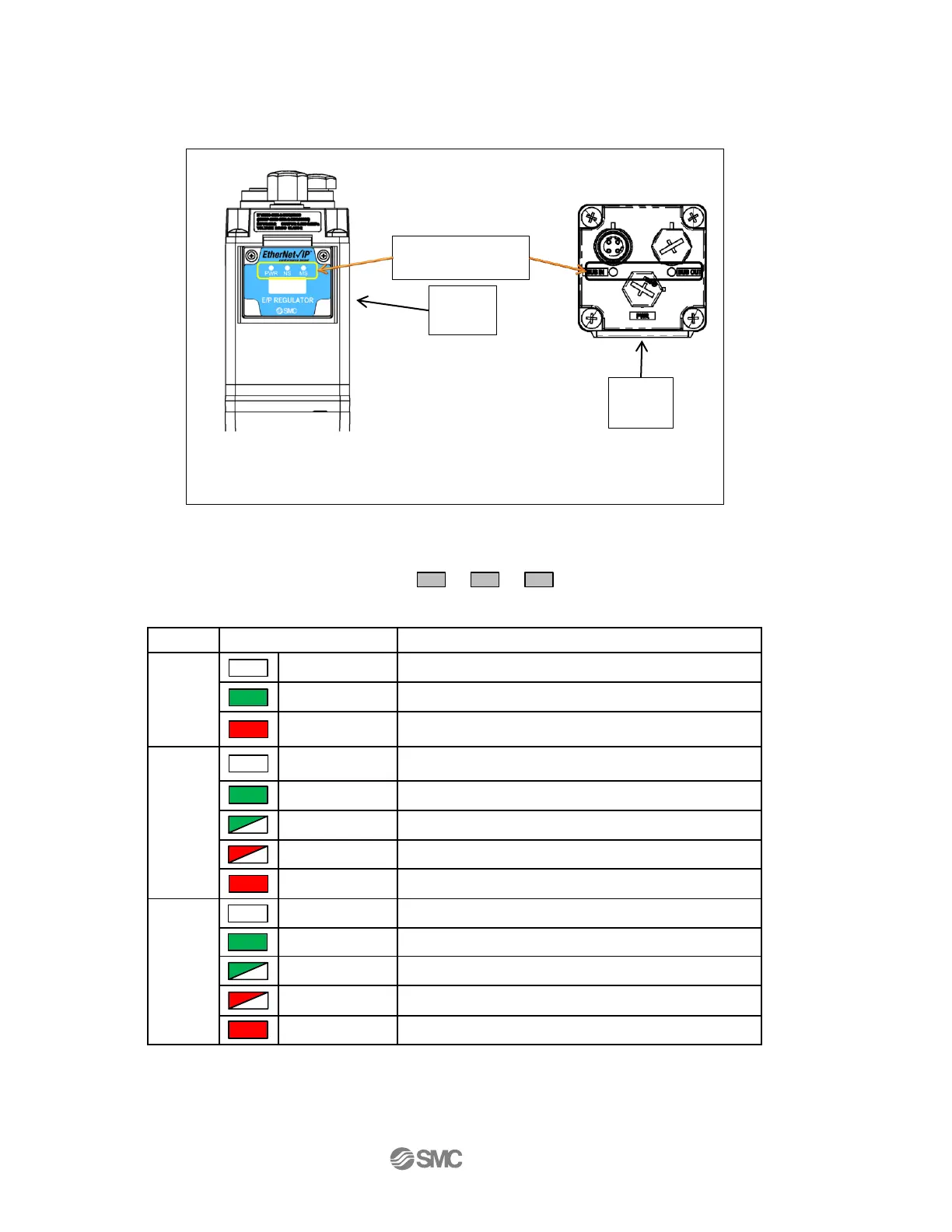

20. LED Indicators
Figure 13 - ITV LED Placement
Front LED Indicators
PWR NS MS
LED
LED Status
Description
PWR
OFF
Load voltage for the ITV is not supplied.
Green ON
Load voltage for the ITV is supplied.
Red ON
Load voltage for the ITV is outside the tolerance range (24
VDC ±10%).
NS
OFF
The ITV operating voltage is not supplied, or the ITV is in
DHCP mode with NO valid IP address set.
Green ON
Communication established.
Green flashing
Idle link.
Red flashing
Communication time out.
Red ON
IP address duplicated.
MS
OFF
The ITV operating voltage is not supplied.
Green ON
Operating normally – communication in progress.
Green flashing
Operating normally – idle link.
Red flashing
Recoverable error.
Red ON
Unrecoverable error.
Figure 14 - ITV Front LED Indicator Status Key
Front
Top
LED Indicators
