SMC Networks ITV SEN DUX02357 Series User Manual

IN19856
- 16 - Rev 2

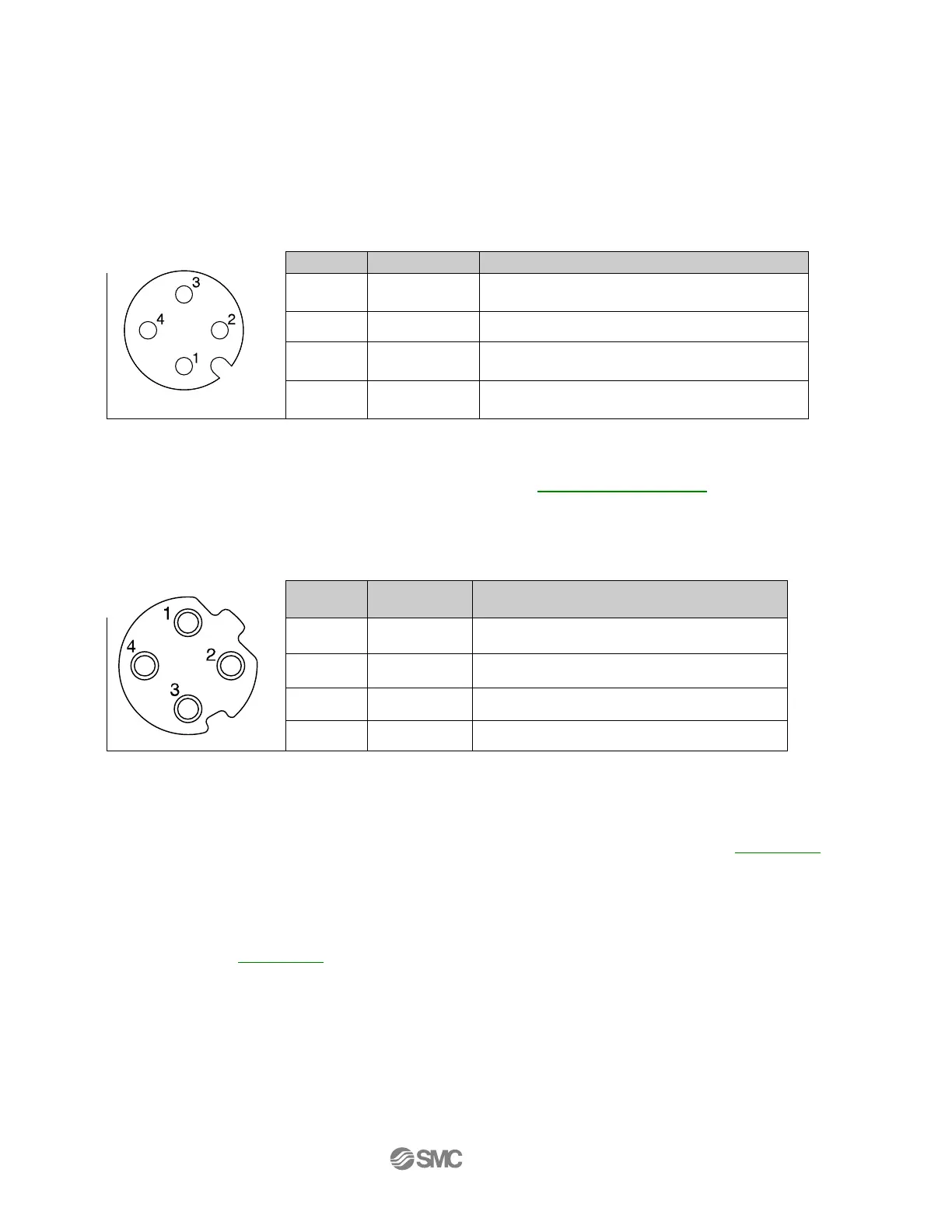

11. Power Connection
Power supply connector layout - PWR: M12 4-pin Plug A-coded connector
No.
Designation
Description
1
24 VDC
Power (Brown Wire +24 VDC + terminal)
2
-
Do Not Connect
3
0 VDC
Common (Blue Wire –Common -terminal)
4
-
Do Not Connect
Figure 6 - ITV Power Cable Pin Connections
(Note: The wire colors above are for a standard SMC power cable. Power cables from other sources
may use different colors.) For Power Cable selection, see Accessories (Section 6).
12. Networking
Network Bus In and Bus Out: M12 4-pin socket D-coded connectors
No.
Designation
Description
1
TD+
Transmit Data +
2
RD+
Receive Data +
3
TD-
Transmit Data -
4
RD-
Receive Data -
Figure 7 - ITV Ethernet Cable Pin Signals
Use a standard industrial Ethernet cable. For cable selection see Accessories.
Connect one connector (“Bus In” or “Bus Out”) to the upstream device and connect the other
connector (“Bus Out” or “Bus In”) to the downstream device. For cable selection see Accessories.
If Power Over Ethernet (POE) is NOT in use, either communications port can be used for input or
output. It is recommended that “Bus In” be used for the input (upstream) connection to the ITV and
“Bus Out” be used for the output (downstream) connection from the ITV. It is also recommended
that unused connectors be capped with a seal cap to meet IP65 environmental rating. For more
information see Accessories.
