socomec STATYS series User Manual

18
STATYS 200-1000A - Ref.:OPMSTA200910-GB_06
7. mImIc paNEL
SU INVERTER
UPS
Eco 1025kVA
10:30
?
7. 2.

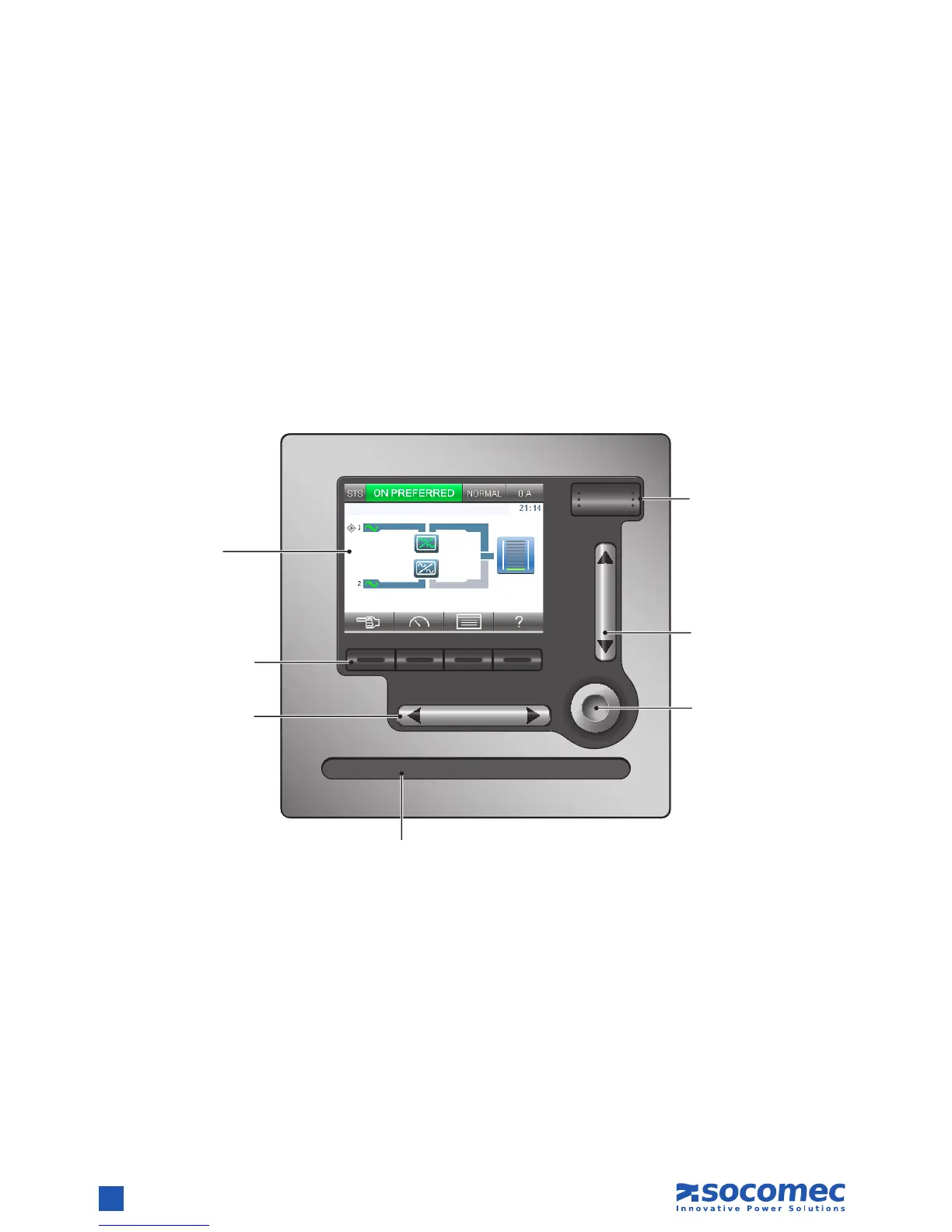

GraPhic MiMic Panel adicoM
The graphic mimic panel on the STATYS door displays information regarding operating status, electrical measure-
ments, access to control functions and conguration parameters. It includes a colour graphic display and a luminous
status bar, and provides access to:
• Mimic panel;
• measurements, statuses and commands for the subassemblies;
• assisted startup and switching to maintenance bypass procedures;
• conguration menu;
• list of states and alarms.
Display.
LEFT/RIGHT button.
Scrolls through the
available menus/pag-
es to the right or left.
MENU buttons.
Access the respec-
tive displayed menu.
Luminous status bar.
Reects the general status of STATYS.
The status bar colours .
– Green:
• Load is on preferred source
– Yellow:
• Load is on alternate source
• Load on maintenance bypass 1 or 2
– Red:
• Load is not supplied
– Red ashing:
• Imminent shutdown
– Yellow ashing:
• Maintenance mode or alert
– Off:
• STATYS is OFF
USB port.
WARNING!
Do not connect devices
to the USB port. This can
damage the system.
ENTER button.
Accesses the currently dis-
played menu, accept/send
commands and congura-
tions to STATYS.
UP/DOWN button.
Scrolls up and down through
the available menus/values.
