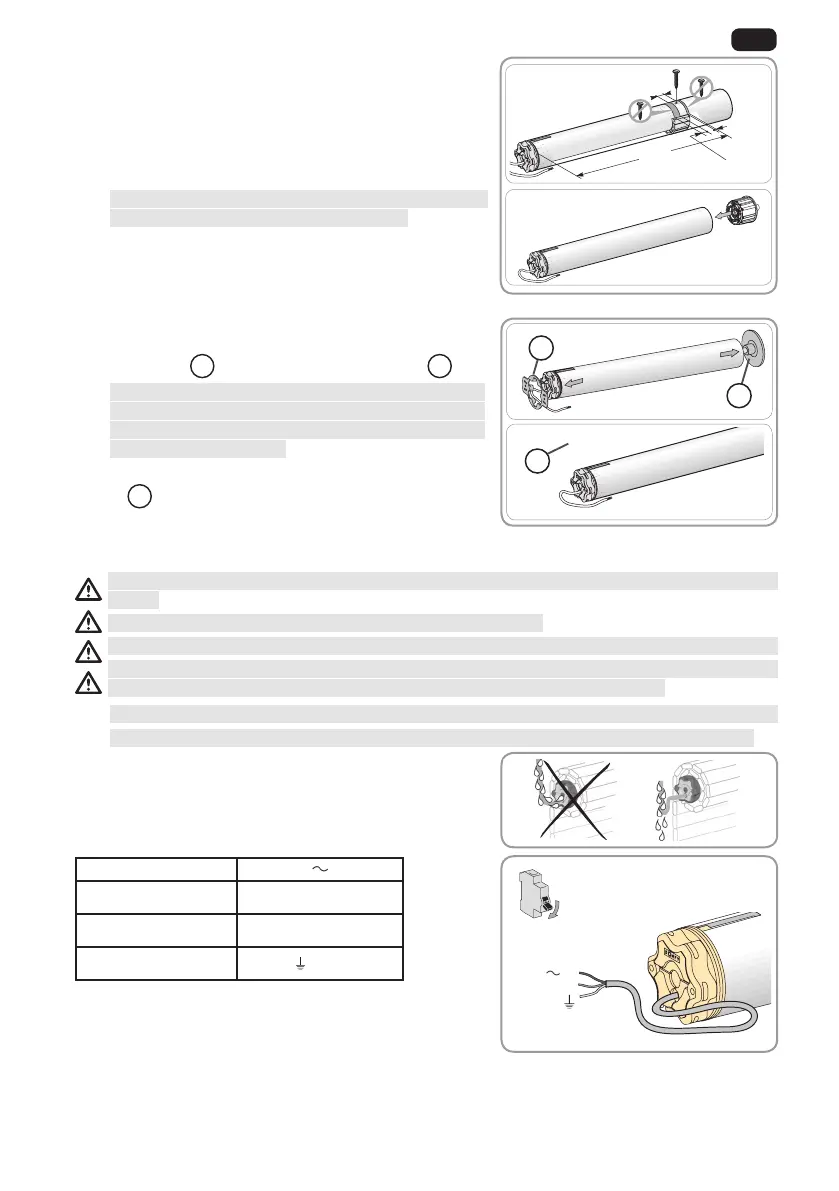

2) The drive wheel must be locked in place to prevent
it moving along the roller tube:
• Thiscanbedoneeitherbyxingtherollertubeto
the drive wheel using 4 x Ø 5 mm self-tapping
screws, or by using 4 x Ø 4.8 mm steel pop rivets
placed 5 mm to 15 mm from the outer rim of the
drive wheel, regardless of the roller tube.
The screws or pop rivets must only be attached
to the drive wheel and not to the drive.
• Alternatively, a drive wheel stop can be used for
tubes which are not smooth.
3) Securethetubeendpieceontotherollertube.
2.1.4. Installing the drive/tube assembly
1) Install and secure the tube/drive assembly onto the
end bracket
f
and onto the drive bracket
g
:
Ensure that the drive/tube assembly is secured
onto the end bracket. This operation prevents
the drive/tube assembly from coming out of the
end bracket mounting.
2) Depending on the type of bracket, t the stop
ring
h
in place.
2.2.WIRING
Cables which pass through a metal wall must be protected and insulated using a sheath or
sleeve.
Attach cables to prevent any contact with moving parts.
The Oximo io cable can be removed. If it is damaged, replace it with an identical cable.
If the drive is used outdoors, and if the power supply cable is a type H05-VVF cable,
the cable should be installed in a UV-resistant duct, e.g. under a gland.
Leave the drive power supply cable accessible: it must be possible to replace it easily.
Alwaysmakealoopinthepowersupplycabletopreventwaterenteringthedrive!
- Switchoffthepowersupply.
- Connect the drive according to the information in
the table below:
Cable 230 V 50 Hz
Brown Live (L)
Blue Neutral (N)
Green/yellow Earth ( )
15 mm
5 mm
L1
2)
3)
1)
2)
h
f
g
OFF
L
N
230 V
50 Hz
