Getting Started
Step 1: Installing the
System

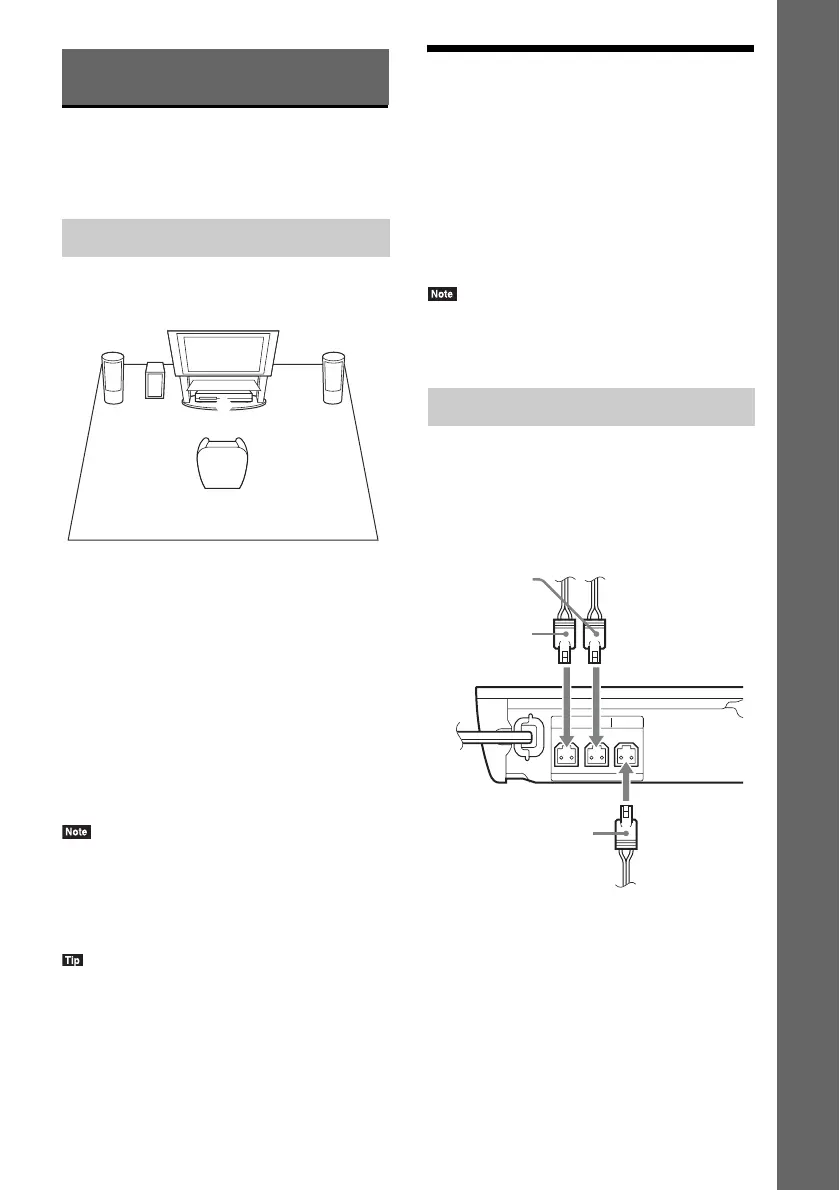

Install the system by referring to the illustration
below.
A Front speaker (L (left))
B Front speaker (R (right))
C Subwoofer
D Unit
Since the system is equipped with S-Force PRO
Front Surround* technology, you can enjoy
surround sound with the speakers in front of the
listening position.
* S-Force PRO Front Surround 3D reproduces a
convincing sense of distance and space, resulting in
a true surround sound experience without the need
for rear speakers.
• Use caution when placing the speakers and/or
speaker stands attached to the speakers on a specially
treated (waxed, oiled, polished, etc.) floor, as staining
or discoloration may result.
• Do not lean or hang on a speaker, as it may fall down.
• You can install the speakers on a wall. For details,
refer to the supplied “Speaker Installation Guide.”
Step 2: Connecting the
System
Do not connect the AC power cord (mains lead)
of the unit to a wall outlet (mains) until all the
other connections are made.
To assemble the speakers, refer to the supplied
“Speaker Installation Guide.” (BDV-EF420
only)
• When you connect another component with a volume
control, turn down the volume of the other
components to a level where sound is not distorted.
Connect the speaker cords to match the color of
the SPEAKERS jacks of the unit.
When connecting to the unit, insert the
connector until it clicks.
Getting Started
How to position the system
AB
D
C
Connecting the speakers
FRONT R FRONT L SUBWOOFER
SPEAKERS
Purple
(Subwoofer)
White
(Front left
speaker (L))
Red
(Front right
speaker (R))
To Next Page
