Getting Started
Connect the system so that video signals from the system and other component are sent to the TV, and
audio signals from the component are sent to the system as follows.
Select one of the following connection methods according to the jack type of the component.
• If you make either connection above, set [Control for HDMI] in [HDMI Settings] of [System Settings] to [Off]
(page 40).
• You can enjoy component sound by selecting the “AUDIO” function for connection B.

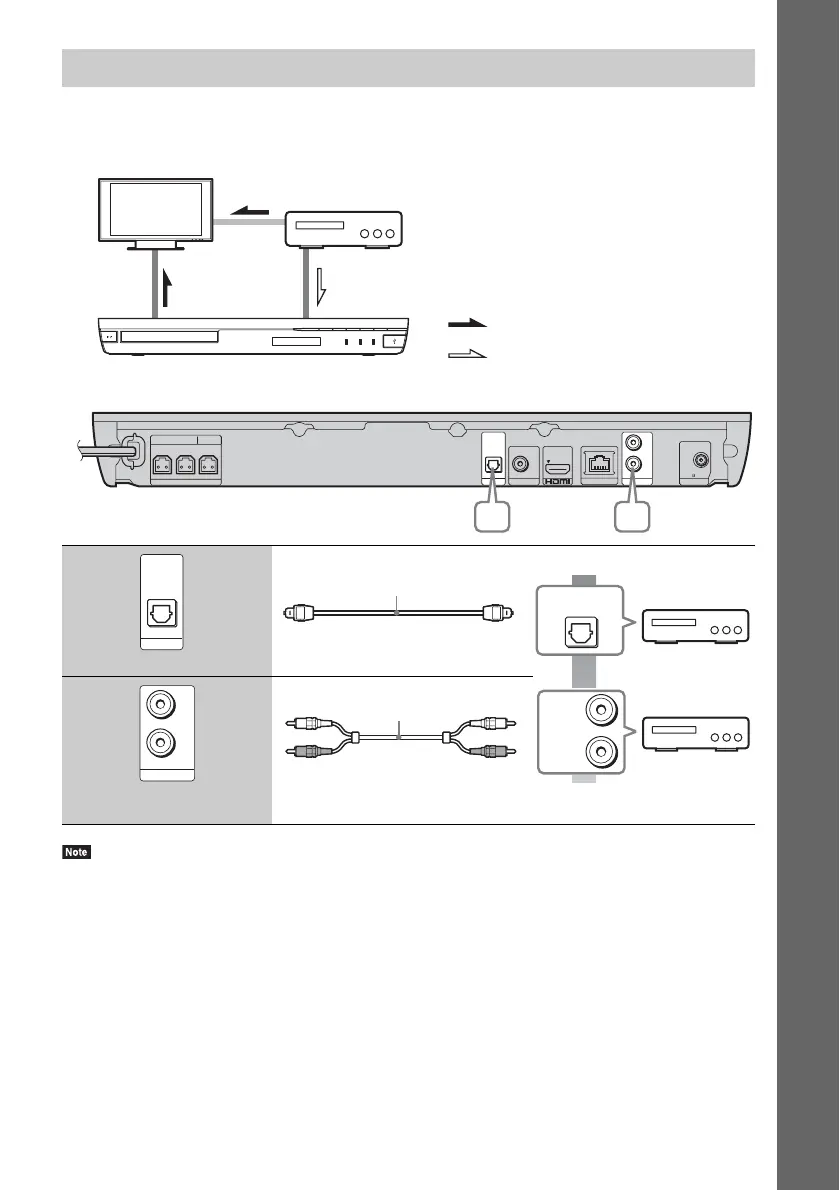

Connecting the other components (Set-top box, etc.)
A High quality
Standard
quality
B
System
Signal flow
TV
: Audio signal
: Video signal
Component
(Set-top box, VCR, PlayStation
®
, or
digital satellite receiver, etc.)
Video out
Audio out
FRONT R FRONT L SUBWOOFER
SPEAKERS
ONLY FOR SS-TSB117
ONLY FOR
SS-WSB113
TV
OPTICAL
DIGITAL IN
FM COAXIAL
75
L
R
OUT ARC
VIDEO OUT
LAN (100)
AUDIO IN ANTENNA
FRONT R FRONT L SUBWOOFER
SPEAKERS
A B
TV
OPTICAL
DIGITAL IN
Digital optical cord (not supplied)
OPTICAL
DIGITAL OUT
L
R
AUDIO
OUTPUT
L
R
AUDIO IN
Audio cable (not supplied)
