• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep
it as horizontal as possible.
• If you have poor FM reception, use a 75-ohm coaxial
cable (not supplied) to connect the unit to an outdoor
FM antenna (aerial).
Step 3: Preparing for
Network Connection
• To connect the system to your network, perform
[Easy Network Settings]. For details, see “Step 4:
Performing the Easy Setup” (page 18).
Select the method based on your LAN (Local
Area Network) environment.
1 Wired Setup
Use a LAN cable to connect to the LAN (100)
terminal on the unit.
• A shielded interface cable (LAN cable), straight or
crossover, is recommended.
2 USB Wireless Setup
Use a wireless LAN via the USB Wireless LAN
Adapter (Sony UWA-BR100* only).
The USB Wireless LAN Adapter may not be
available in some regions/countries.
* As of November 2011.

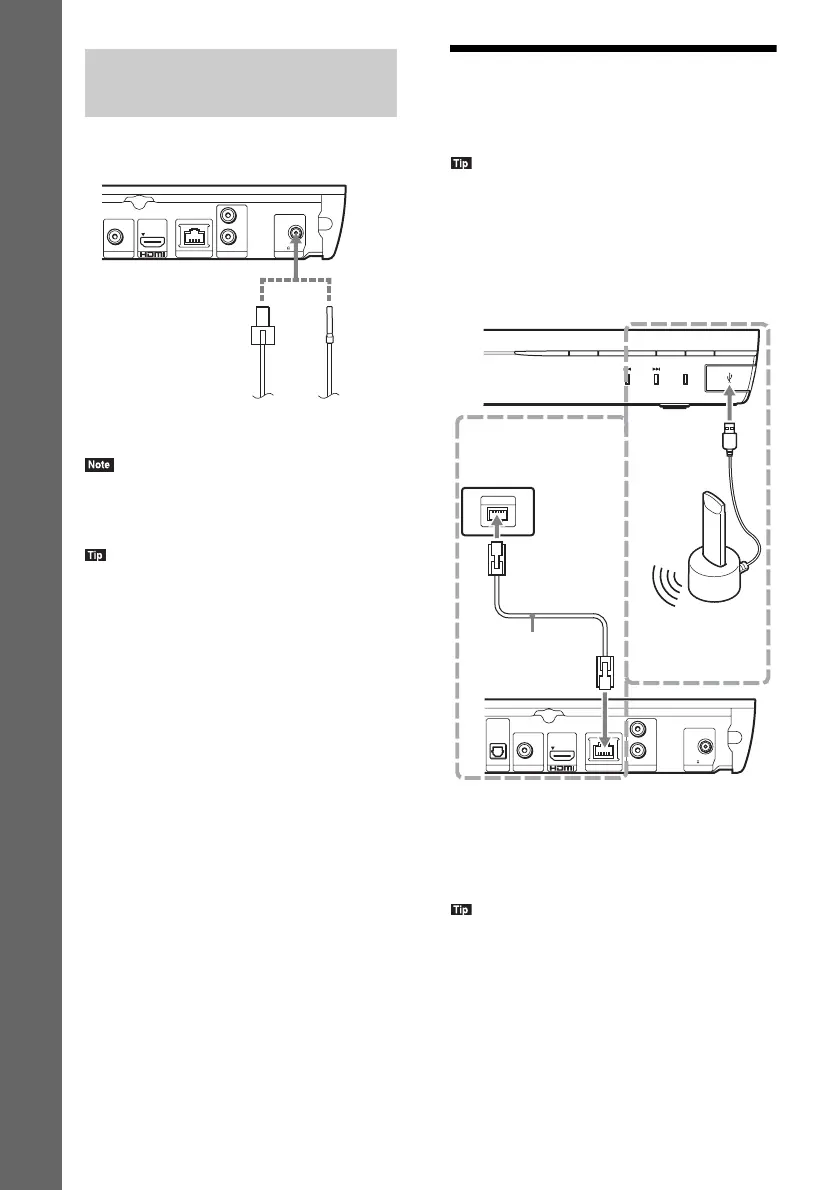

Connecting the antenna
(aerial)
FM COAXIAL
75
L
R
OUT ARC
VIDEO OUT
LAN (100)
AUDIO IN ANTENNA
or
FM wire antenna (aerial)
(supplied)
Rear panel of the unit
LAN
FUNCTION
TV
OPTICAL
DIGITAL IN
FM COAXIAL
75
L
R
OUT ARC
VIDEO OUT
LAN (100)
AUDIO IN ANTENNA
21
Broadband
router
LAN cable
(not supplied)
Front panel of the unit
USB Wireless LAN
Adapter
(not supplied)
Rear panel of the unit
To Next Page
