DSC-F717

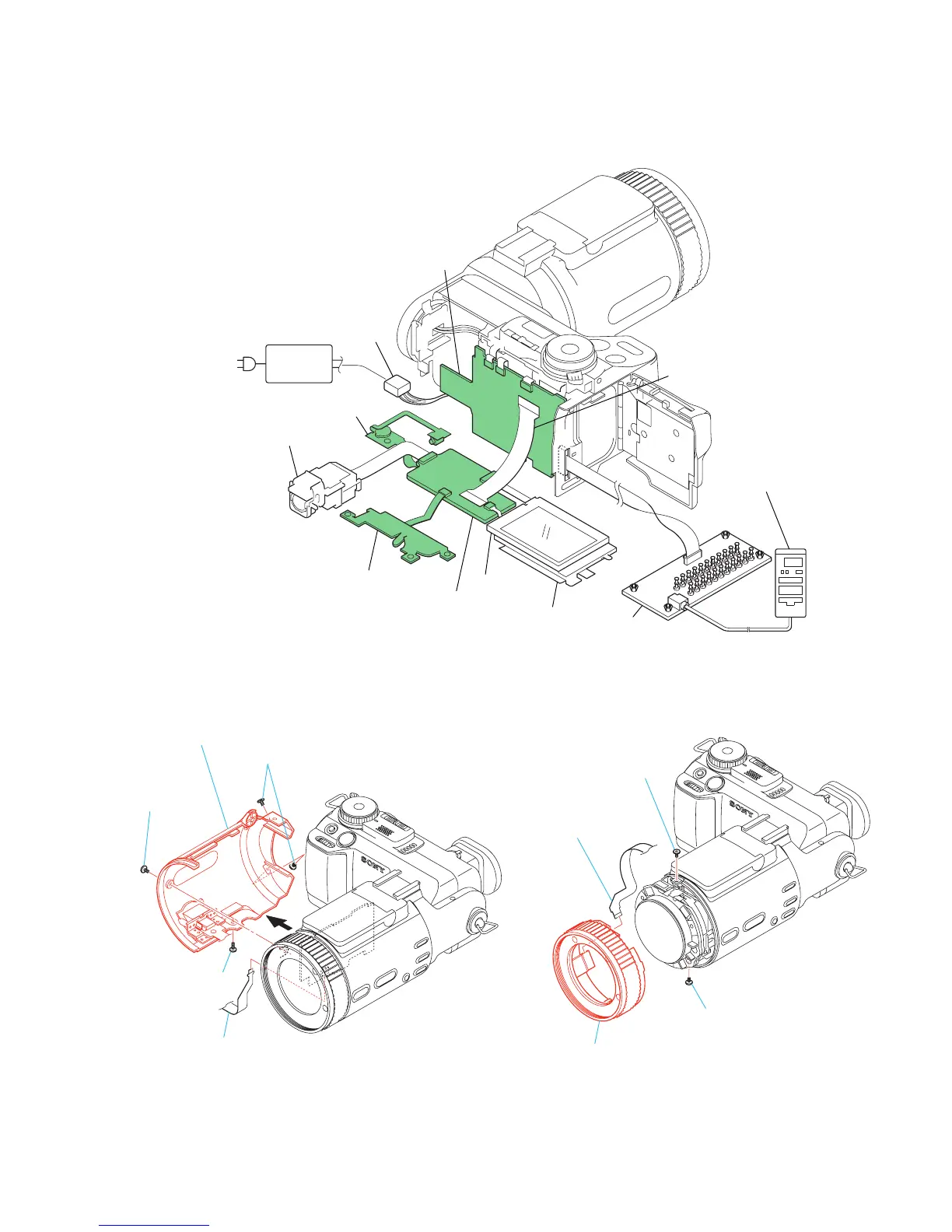

2-7. CABINET (LL) ASSEMBLY 2-8. CABINET (MF) ASSEMBLY
5 Flexible board
(CN703)
1 Two screws
(M1.7)
2 Screw
(M1.7)
6 Cabinet (LL) assembly
4
3 Screw
(0 plate +2)
1 Flexible board
(manual focus block)
2 Screw
(M1.7)
4 Cabinet (MF) assembly
3 Screw
(M1.7)
[SERVICE POSITION (PD-179 BOARD)]
1
1
22
22
AC power
adaptor
AC IN
FP-591 flexible board
FR-194 board
PD-179 board
PD-179
FR-194
SW-379 board
AL-013 board
EVF block assembly
DC-IN jack
Adjustment remote
commander
CPC-12 jig
(J-6082-436-A)
LCD module
Back light unit
Note: When connecting CPC-12 jig, remove CPC-lid.

Sony CYBER-SHOT DSC-F717 Specifications

General

Sensor Type	CCD
Effective Pixels	5.0 megapixels
Optical Zoom	5x
Digital Zoom	2x
Aperture Range	f/2.0 - f/2.4
LCD Screen Size	1.8 inches
LCD Screen Resolution	123, 000 pixels
Viewfinder	Electronic
Image Sensor Size	2/3 inch
Lens Type	Carl Zeiss Vario-Sonnar
Camera Type	Digital Still Camera
ISO Sensitivity	100, 200, 400
Storage Media	Memory Stick
Battery Type	NP-FM50
Focal Length	9.7 - 48.5 mm
Focus Range	2 cm (macro)
