2-2
DSC-F717

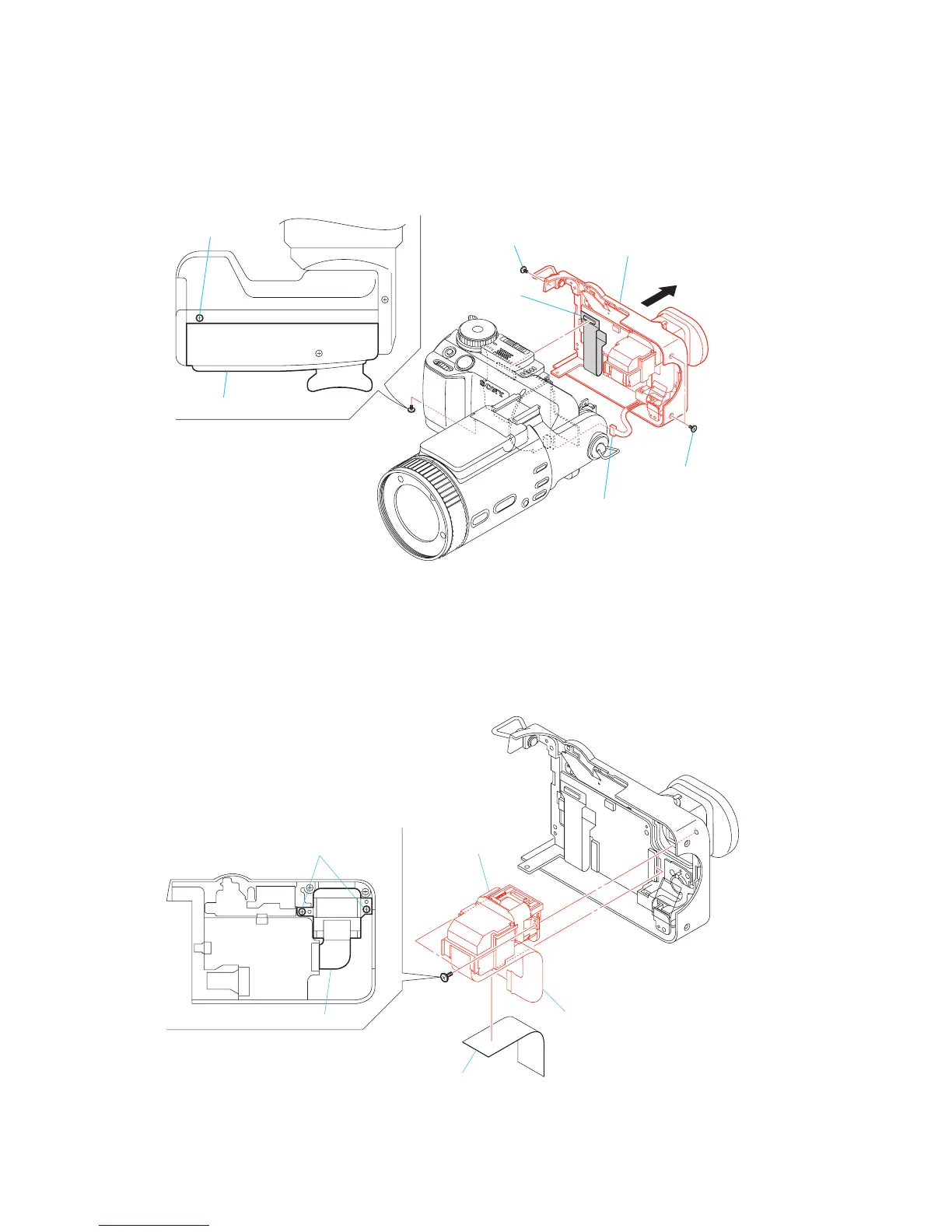

2-2. EVF ASSEMBLY
2-1. CABINET (REAR) ASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
2 Two screws
(2.0)
6 Connector
(CN401)
1 Screw
(M1.7)
3 Screw
(M1.7)
7 Cabinet (rear)
assembly
4
Cabinet (rear) assembly
5 Flexible board
(CN308)
2 Flexible board
(CN704)
1Copy sheet (LB)
4 EVF assembly
EVF assembly
3 Two screws
(DIA.1.7 × 4.5)
