5-1
DSC-F717
SECTION 5
REPAIR PARTS LIST
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Accessories are given in the last of the electrical
parts list.
5-1. EXPLODED VIEWS
COVER
COVER
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

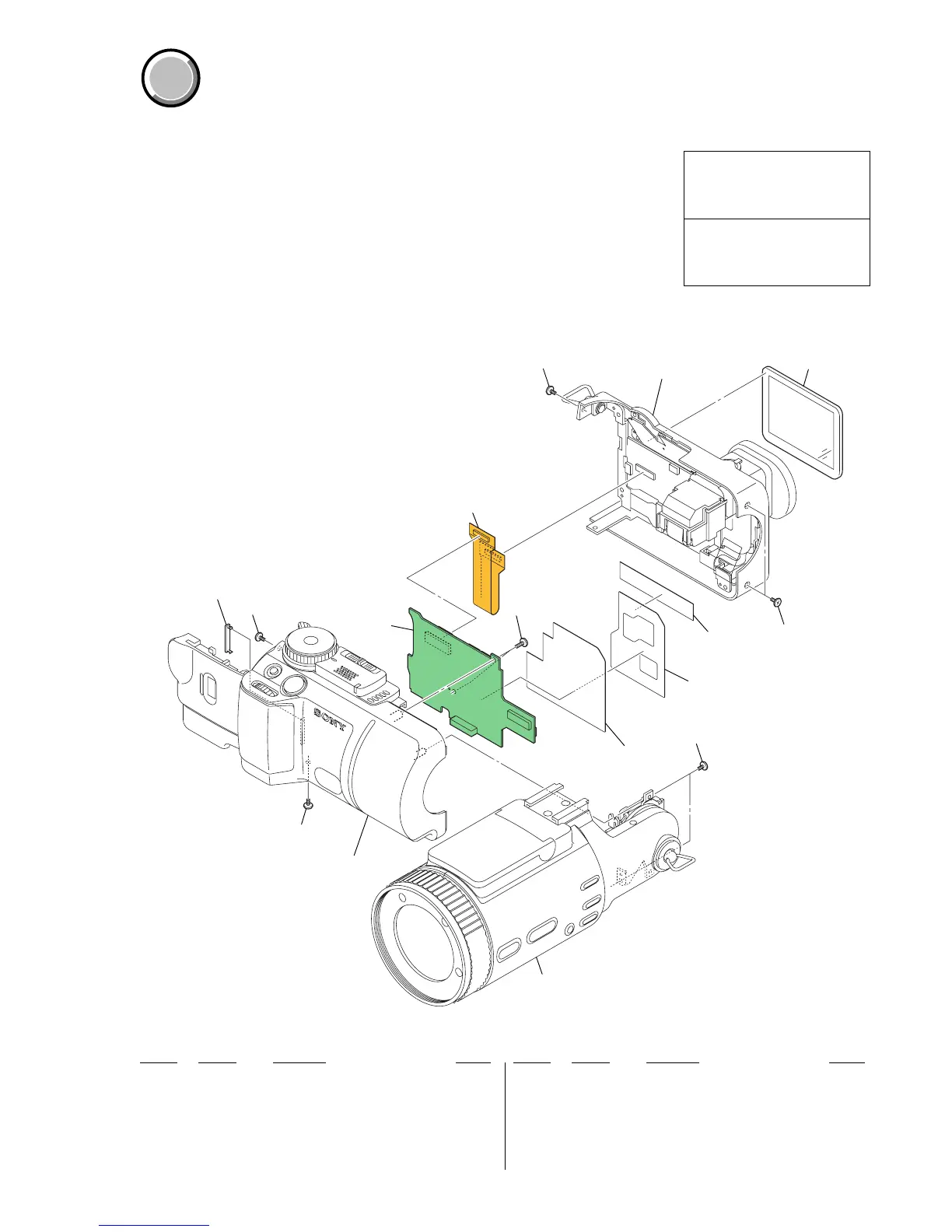

5-1-1. MAIN SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 3-064-225-11 LID, CPC
2 3-057-082-21 SCREW (M1.7), P2
3 A-7078-482-A FR-194 BOARD, COMPLETE
4 3-072-498-01 SCREW (DIA. 1.7X4.5),PRECISION
5 3-071-144-01 SPACER (FR)
6 1-686-176-11 FP-591 FLEXIBLE BOARD
7 3-071-282-01 WINDOW, LCD
8 3-962-826-21 SCREW (2X5)
9 3-072-430-01 SHEET (FR), MG
10 3-072-429-01 SHEET (FR), BEAT
11 3-072-453-01 O PLATE +P2 MAIN M2EG GRIP
To Next Page
