Sony CYBER-SHOT DSC-F717 User Manual

2-6
DSC-F717

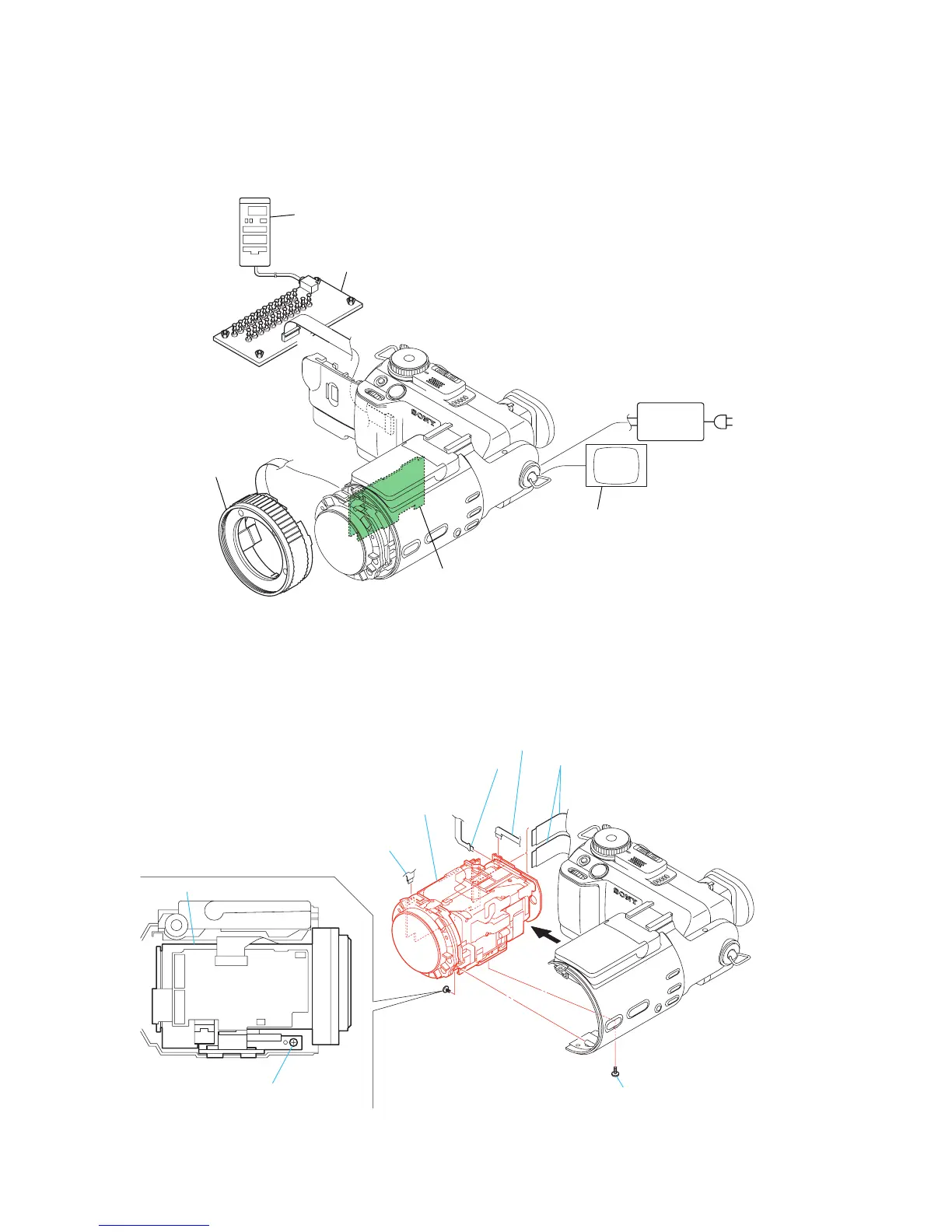

2-9. LENS COMPLETE ASSEMBLY
2 Flexible board
(CN302)
3 Flexible board
(CN704)
7 Flexible board
(CN303)
8 Lens complete
assembly
Lens complete assembly
5 Screw (M1.7)
1 Two flexible boards
(CN701, 702)
6
4 Screw
(0 plate +2)
1
1
22
22
AC power
adaptor
AC IN
Color monitor
Cabinet (MF) assembly
SY-080 board
Adjustment remote
commander
CPC-12 jig
(J-6082-436-A)
SY-080
Note: When connecting CPC-12 jig, remove CPC-lid.
[SERVICE POSITION (SY-080 BOARD: SIDE B)]

Sony CYBER-SHOT DSC-F717 Specifications

General

Sensor Type	CCD
Effective Pixels	5.0 megapixels
Optical Zoom	5x
Digital Zoom	2x
Aperture Range	f/2.0 - f/2.4
LCD Screen Size	1.8 inches
LCD Screen Resolution	123, 000 pixels
Viewfinder	Electronic
Image Sensor Size	2/3 inch
Lens Type	Carl Zeiss Vario-Sonnar
Camera Type	Digital Still Camera
ISO Sensitivity	100, 200, 400
Storage Media	Memory Stick
Battery Type	NP-FM50
Focal Length	9.7 - 48.5 mm
Focus Range	2 cm (macro)
