Sony DCR-HC40 - Overall Section

5-3
DCR-HC40/HC40E

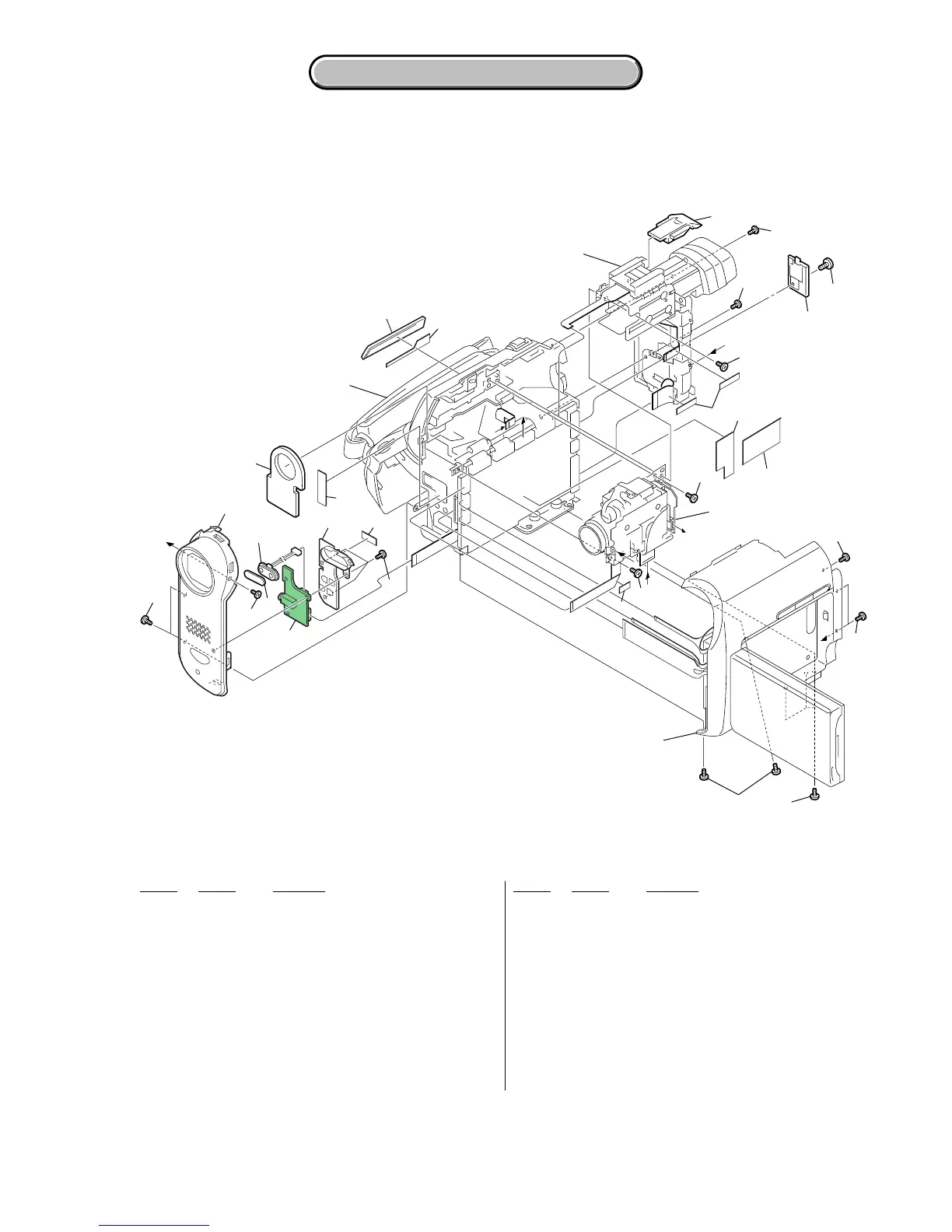

5-1. EXPLODED VIEWS
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST
5-1-1. OVERALL SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
ns : not supplied
1 3-057-082-21 SCREW (M1.7), P2
2 A-7112-122-A IR-051 BOARD, COMPLETE
3 X-3954-099-1 PANEL (G) ASSY, F (SILVER)(HC40:J)
3 X-3954-100-1 PANEL (G) ASSY, F (WHITE) (HC40:J)
3 X-3954-105-1 PANEL (G) ASSY, F (SILVER)(EXCEPT HC40:J)
3 X-3954-106-1 PANEL (G) ASSY, F (WHITE) (EXCEPT HC40:J)
4 3-089-771-01 CUSHION, MICROPHONE
5 X-3954-215-1 RETAINER ASSY, IR
6 3-078-890-11 SCREW, TAPPING
7 3-089-917-01 CUSHION (F3)
8 3-089-543-02 COVER (G), SHOE
9 3-089-547-02 COVER (L), JACK
10 3-089-546-11 SHEET, JACK (HC40:J)
10 3-089-546-21 SHEET, JACK (EXCEPT HC40:J)
11 3-941-343-21 TAPE (A)
12 3-084-523-11 SCREW (M1.7 EG LOCK (BLACK))
13 3-089-541-01 LID, CPC
14 3-091-102-01 SHEET, VC ELECTROSTATIC
15 3-089-777-01 SHEET, SHIELD, VC
16 3-091-481-31 SCREW
MIC901 1-542-513-21 MICROPHONE
VC-352
A
A
B
D
D
C
B
C
Cabinet (R) section
(See page 5-4)
Cabinet (L) section
(See page 5-8)
BAT. EVF section
(See page 5-6)
Lens section
(See page 5-7)
MIC901
1
5
4
3
1
6
2
7
16
1
16
8
9
10
12
16
12
11
14
15
12
16
1
13
16
ns
ns
ns
