5-8
DCR-HC40/HC40E
5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

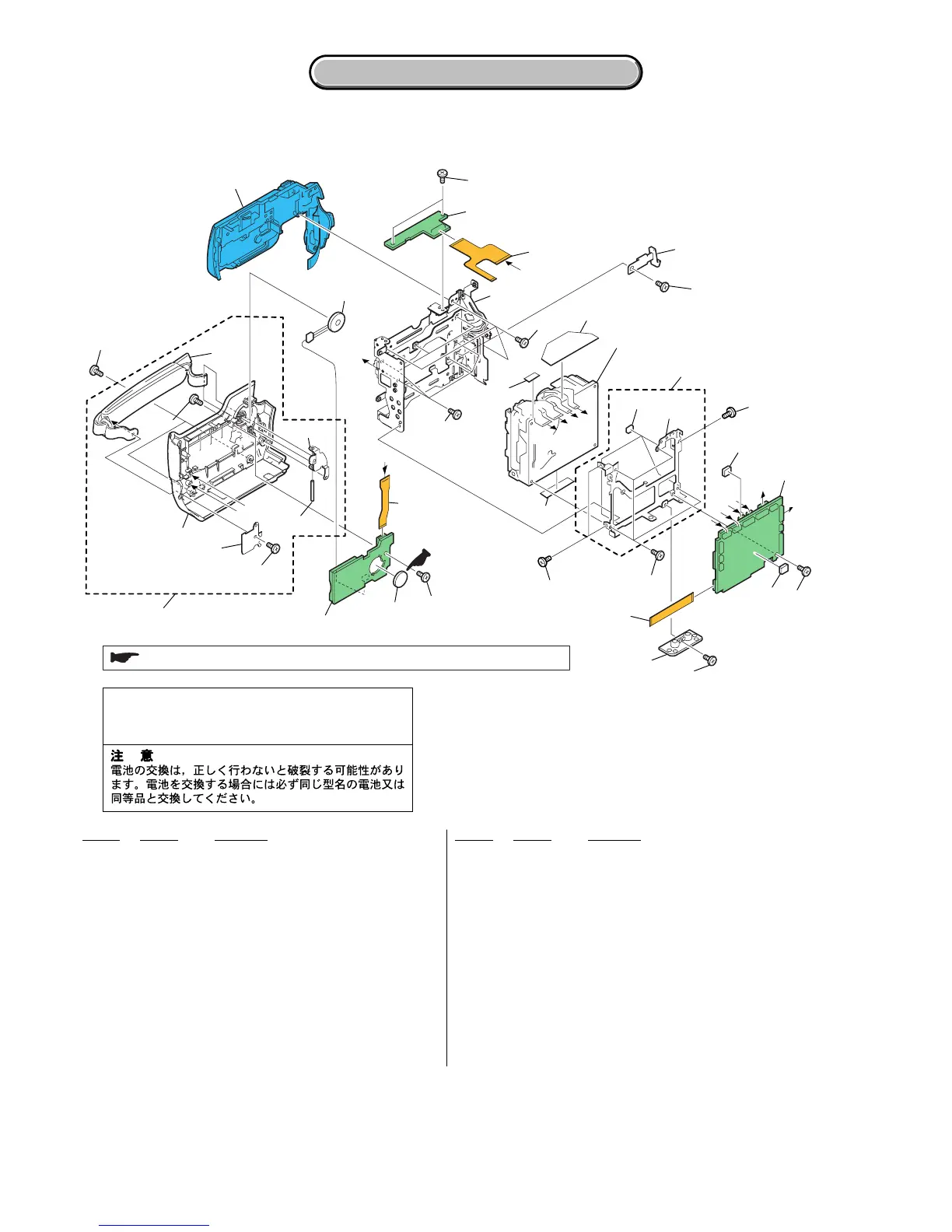

5-1-6. CABINET (L) SECTION
Ref. No. Part No. Description Ref. No. Part No. Description
251 X-3954-115-2 CABINET (64) ASSY, G (HC40:J)
251 X-3954-116-2 CABINET (64) ASSY, G (EXCEPT HC40:J)
252 3-080-204-01 SCREW, TAPPING, P2
253 3-089-513-01 SHAFT (REAR), GRIP BELT
254 A-7112-120-A MS-200 BOARD, COMPLETE
255 3-078-890-11 SCREW, TAPPING
256 1-861-185-11 FP-832 FLEXIBLE BOARD
257 3-078-893-01 0 PLATE +P2 MAIN EG GRIP M1.7
258 3-084-523-11 SCREW (M1.7 EG LOCK (BLACK))
259 3-089-510-01 BELT, GRIP
260 1-478-481-41
KEY BLOCK, CONTROL (SS6300) (EXCEPT HC40:J)
260 1-478-481-51 KEY BLOCK, CONTROL (SS6300) (HC40:J)
261 3-089-520-01 SCREW
262 A-7112-123-A JK-260 BOARD, COMPLETE
263 1-861-186-11 FP-833 FLEXIBLE BOARD
264 X-3954-072-2 FRAME ASSY, CS
265 3-062-214-01 SCREW (M1.4X1.5)
266 1-828-833-11 CABLE, FLEXIBLE FLAT (FFC-036)
267 3-089-548-01 SHEET, DRUM
268 3-089-540-01 KNOB, EJECT
269 X-3954-074-2 FRAME ASSY, MD
270 3-081-221-01 LABEL (Z) LS
271 3-089-521-01 SHEET, VC
272 A-7112-785-A VC-352 BOARD, COMPLETE (SERVICE)(HC40)
272 A-7113-240-A VC-352 BOARD, COMPLETE (SERVICE)(HC40E)
SP901 1-825-260-21 LOUD SPEAKER (1.6CM)
ns : not supplied
VC-352
MS-
200
B
E
C
B
C
A
A
D
D
F
G
H
E
F
G
H
259
257
262
258
260
266
265
258
263
264
268
267
272
270
252
258
255
252
253
251
254
258
258
255
256
261
258
BT501
SP901
ns
ns
ns
ns
Mechanism deck
(See page 5-9 to 5-11)
: BT501 (Lithium battery) MS-200 board on the mount position. (See page 4-73)
258
271
271
269
ns
ns
CAUTION :
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
To Next Page
