5. REPAIR PARTS LIST
5. REPAIR PARTS LIST

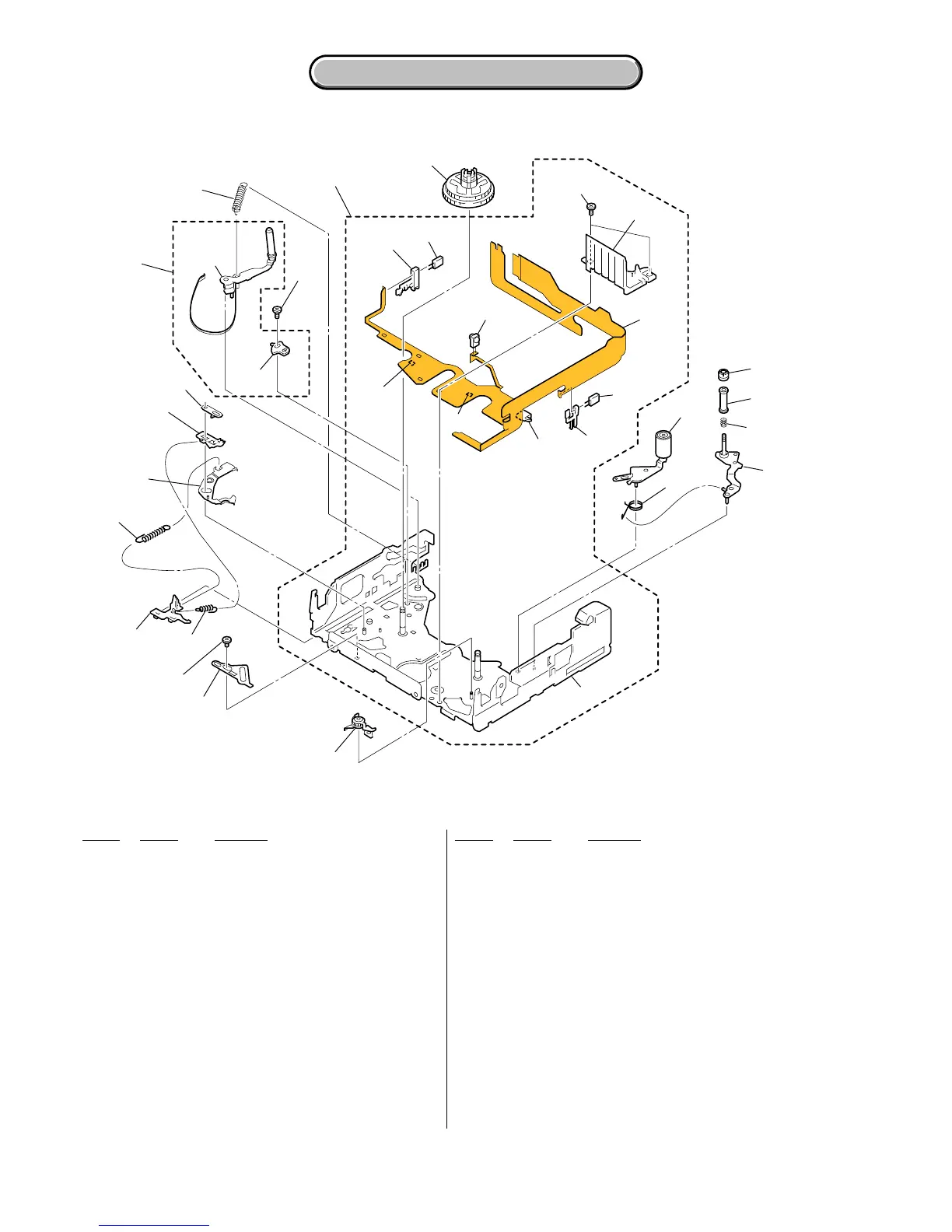

5-1-8. LS CHASSIS BLOCK ASSEMBLY
Ref. No. Part No. Description Ref. No. Part No. Description
751 A-7095-402-G BRAKE (T) BLOCK ASSY
752 3-079-241-01 PLATE, LS CAM
753 3-075-097-11 SCREW (M1.4X1.4), SPECIAL HEAD
754 3-079-246-01 SPRING(RELEASE RACK),EXTENSION
755 3-079-248-01 POSITIONING(S), CASSETTE
756 3-079-244-01 SPRING (ULE), EXTENSION
757 X-3952-932-1 BRAKE ASSY, ULE
758 3-079-245-01 RACK (S), RELEASE
759 3-079-247-01 BRAKE (S)
760 3-059-090-11 SCREW (M1.4X2.5), SPECIAL HEAD
761 3-079-242-01 SPRING, TENSION
762 A-7095-951-A LS BLOCK ASSY
763 3-079-267-01 HOLDER (S), SENSOR
764 3-079-268-01 HOLDER (T), SENSOR
765 X-3952-936-2 TABLE ASSY, S REEL
766 3-085-330-01 SCREW, SPECIAL
767 3-079-243-02 SPRING (PINCH RETURN), TORSION
768 X-3952-934-1 ARM ASSY, PINCH
769 3-052-062-02 NUT, TG7
770 3-079-219-02 TG7
771 3-081-591-01 SPRING, COMPRESSION (TG7)
772 X-3952-935-3 ARM ASSY, TG7
773 3-079-237-01 ADJUSTOR, BAND
774 A-7095-403-B TG2 ARM BLOCK ASSY
S903 1-529-566-51 SWITCH, PUSH (1 KEY)(C.C. DOWN)
MIC902 1-817-175-12 PIN, CONNECTOR (WITH DETECTION SWITCH)
D901 6-500-652-01 DIODE GL453SE0000F (TAPE LED)
H901 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (S REEL)
H902 8-719-067-74 ELEMENT, HOLE HW-105A-CDE-T (T REEL)
Q901 6-550-672-01 TRANSISTOR PT4850FJE00F (TAPE END)
Q902 6-550-672-01 TRANSISTOR PT4850FJE00F (TAPE TOP)
ns : not supplied
H901
D901
Q901
Q902
MIC902
S903
H902
751
753
754
755
756
757
758
759
760
773
761
762
763
764
765
766
767
768
769
770
771
772
752
774
ns
ns
FP-826
(Note)
Note: FP-826 is included in the LS block assy and is attached
to chassis by hot-press.
Because installation of FP-826 requires a very high
accuracy, FP-826 is not supplied as an independent
service parts.
