Sony HCD-M60D Service Manual

HCD-M40D/M60D/M80D
12
Note: Follow the disassembly procedure in the numerical order given.

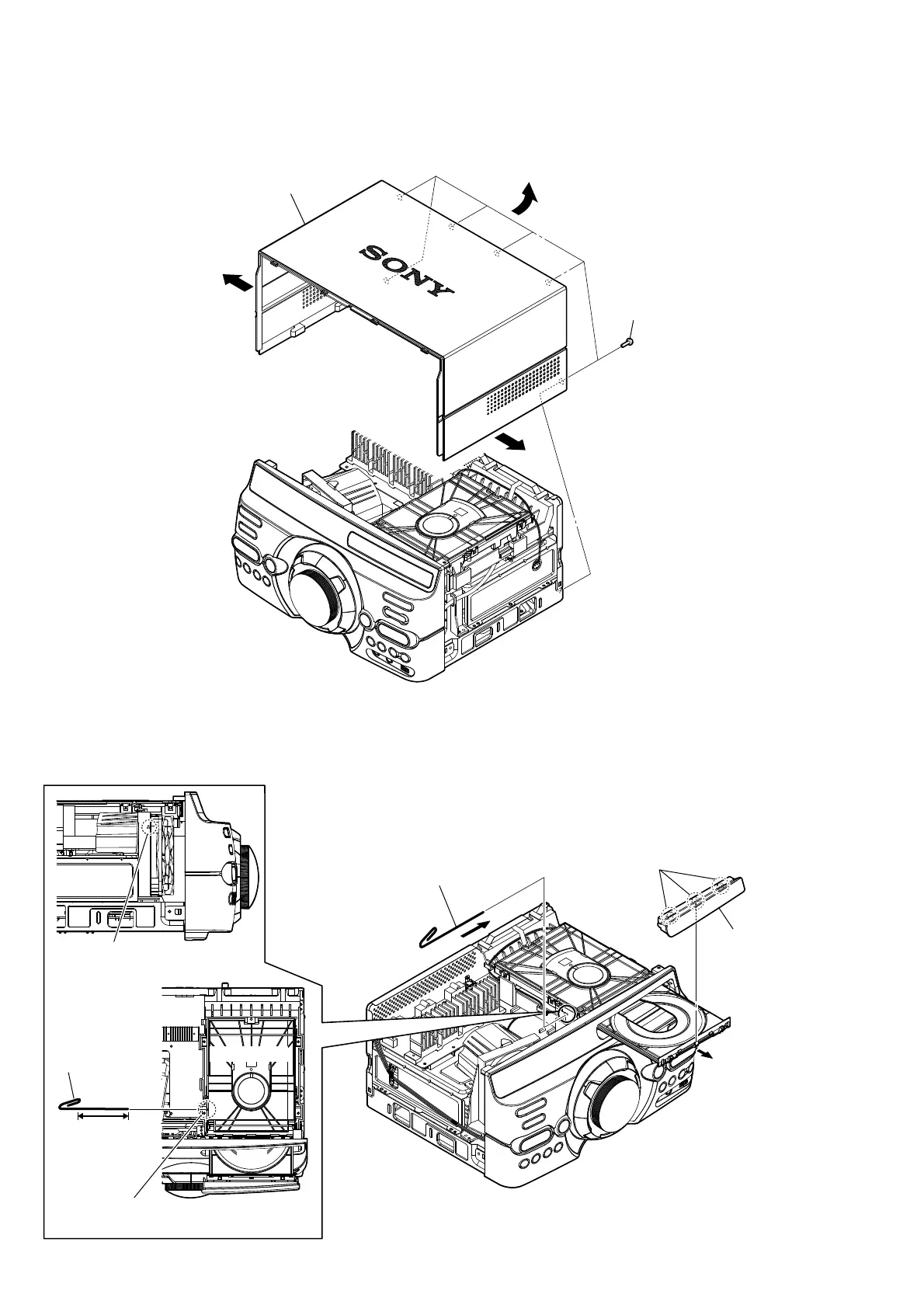

2-2. TOP COVER
2-3. LOADING PANEL SECTION
1 six screws
(+BVTP 3 u 10)
4 cover, top
2
3
2
1 Insert the clip etc.
2
3 three claws
4 panel, loading
section
CD/DVD drive
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
CDM and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
