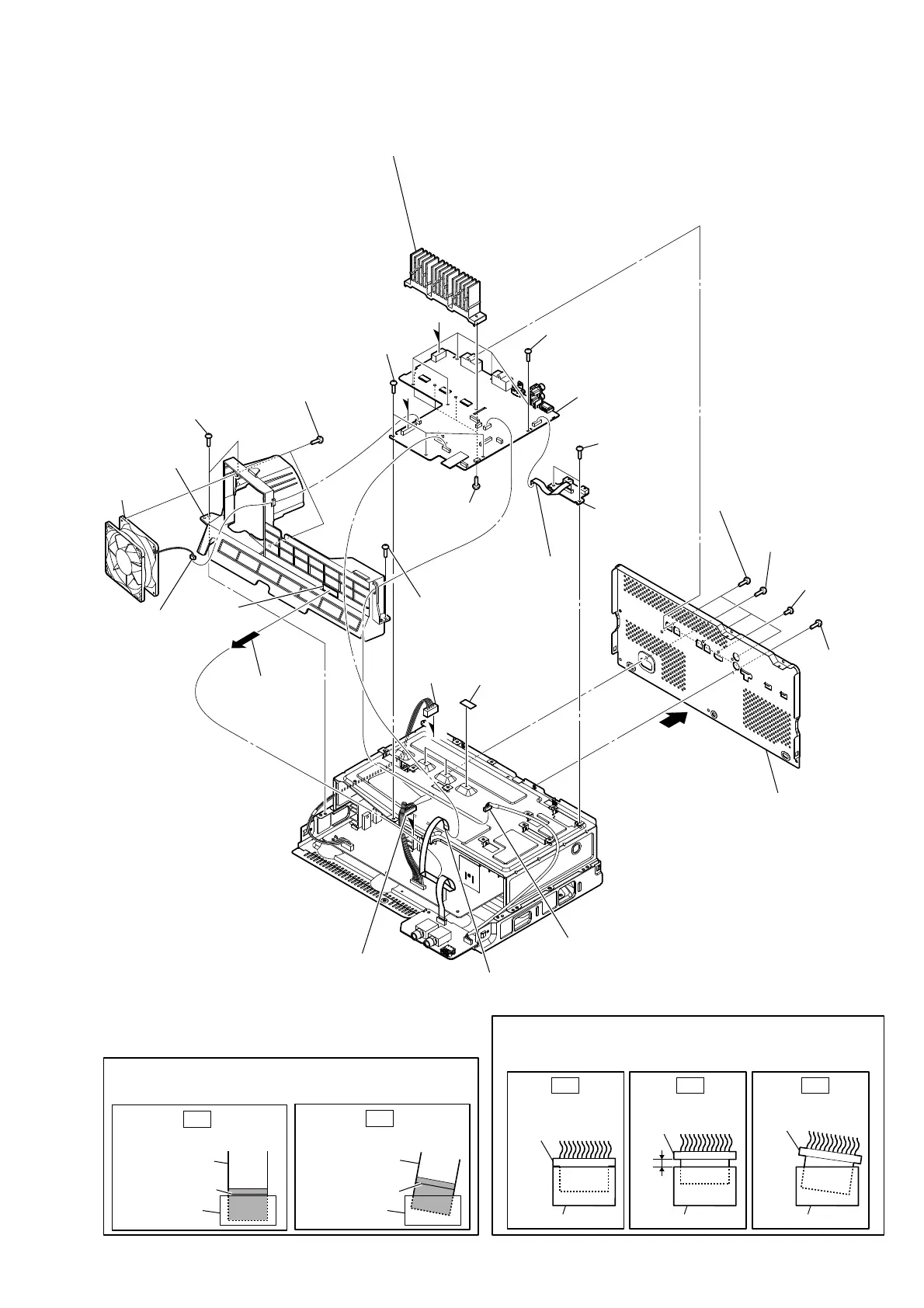

2-10. MOTHERBOARD BOARD, DC FAN (M60D)
Note 3:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 2:
When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
1 three screws
(+BVTP 3 u 8)
8 two screws
(+BVTP 3 u 8)
9 LED
CONNECTOR
board
3 two screws
(+BVTP 3 u 8)
4 one screw
(+BVTP 3 u 8)
2 one screw
(+B 3 u 6)
6 panel, back
5
qh five screws
(+BVTP 3 u 8)
qj four screws
(+BVTP 3 u 8)
wa two screws
(+BVTP 3 u 8)
wa one screw
(+BVTP 3 u 8)
ws two screws
(+BVTP 3 u 8)
qk heat sink (MB-M)
7 flexible flat cable
(7 core) (CN2206)
wf holder, fan
(H/M)
qg CN3501
(4P)
wd DC fan
I
0 CN451 (5P)
qa flexible flat cable
(7 core) (CN601)
qs Peel the FFC
(7 core) from the
double sided tape
double
sided tape
(sub material)
qf CN2008
(3P)
qd CN001 (10P)
I
J
J
qh three screws
(+BVTP 3 u 8)
ql MOTHERBOARD
board
w; three sheet,
thermal
Note 1: When you install the heat sink (MB-M), spread the compound referring to
“NOTE OF REPLACING THE IC3501 (M80D), IC3502, IC3503 (M60D, M80D)
AND IC2002 ON THE MOTHERBOARD BOARD AND THE COMPLETE
MOTHERBOARD BOARD” on servicing notes (page 7).
To Next Page
