HCD-M40D/M60D/M80D
18

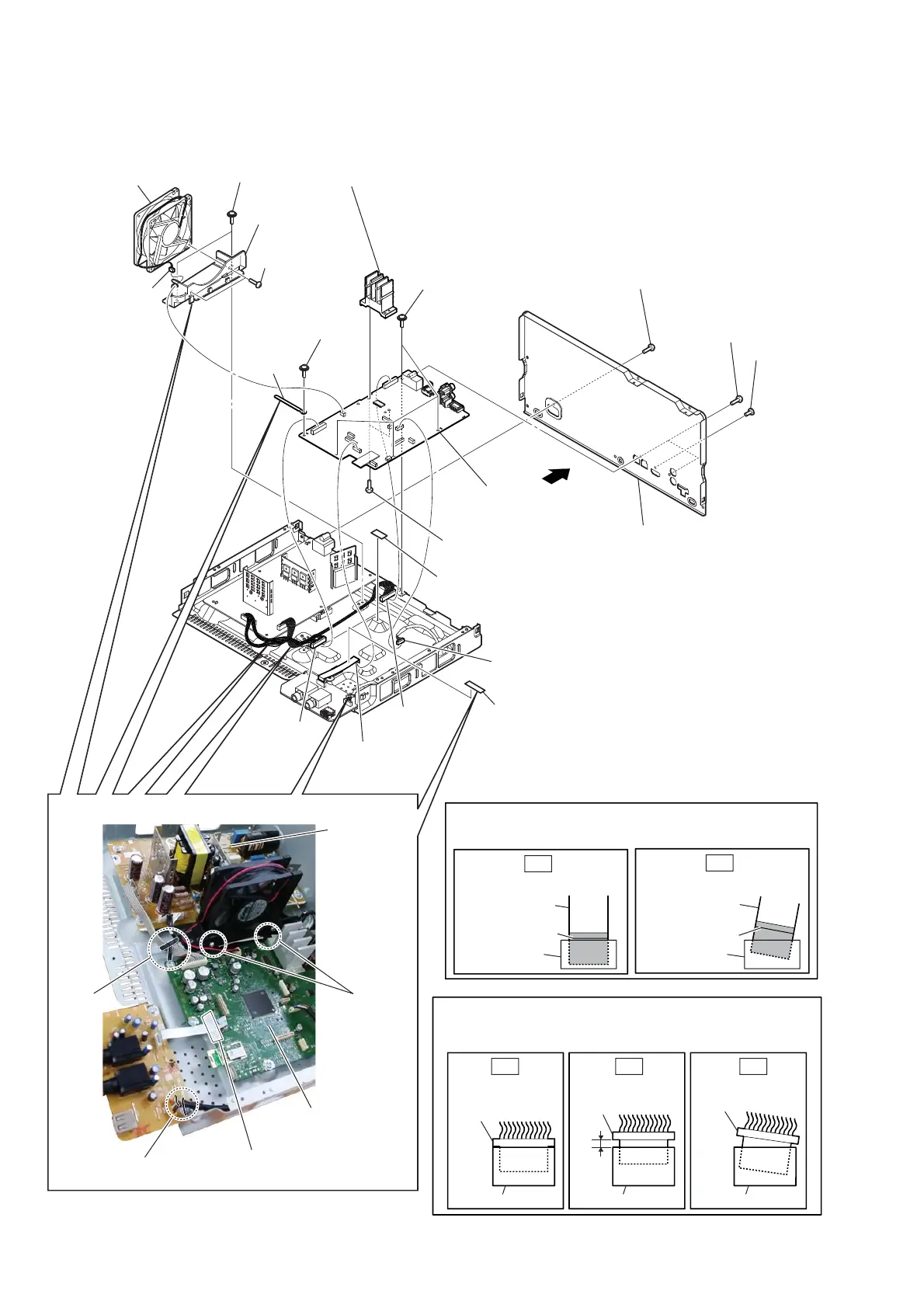

2-9. MOTHERBOARD BOARD, FAN DC (M40D)
1 two screws
(+BVTP 3 u 8)
qf two screws
(+BVTP 3 u 8)
qg heat sink (MB-L)
qh MOTHERBOARD
board
qj sheet, thermal
2 one screw
(+B 3 u 6)
9 CN001
(10P)
qd CN2001 (2P)
0 CN2007
(8P)
qa filament tape (sub material)
8 CN451 (5P)
7 clip,
coating
3 one screw
(+BVTP 3 u 8)
5 panel, back
6 four screws
(+PWH 3 u 8 (SUMITITE))
6 one screw
(+PWH 3 u 8
(SUMITITE))
qk two screws
(+PWH 3 u 8 (SUMITITE))
ql two screws
(+BVTP 3 u 8)
w; holder, wire
(PVDD)
wa fan, DC
qs flexible flat
cable (7 core)
(CN601)
Note 3:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 2:
When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
4
Note 1: When you install the heat sink (MB-L), spread the compound referring to
“NOTE OF REPLACING THE IC3501 (M80D), IC3502,
IC3503 (M60D, M80D) AND IC2002 ON THE MOTHERBOARD BOARD
AND THE COMPLETE MOTHERBOARD BOARD”
on servicing notes (page 7).
:LUHVHWWLQJ
SMPS board
hook
MOTHERBOARD
board
filament tape
(sub material)
pin, lead
clamp
To Next Page
