HCD-M40D/M60D/M80D
17

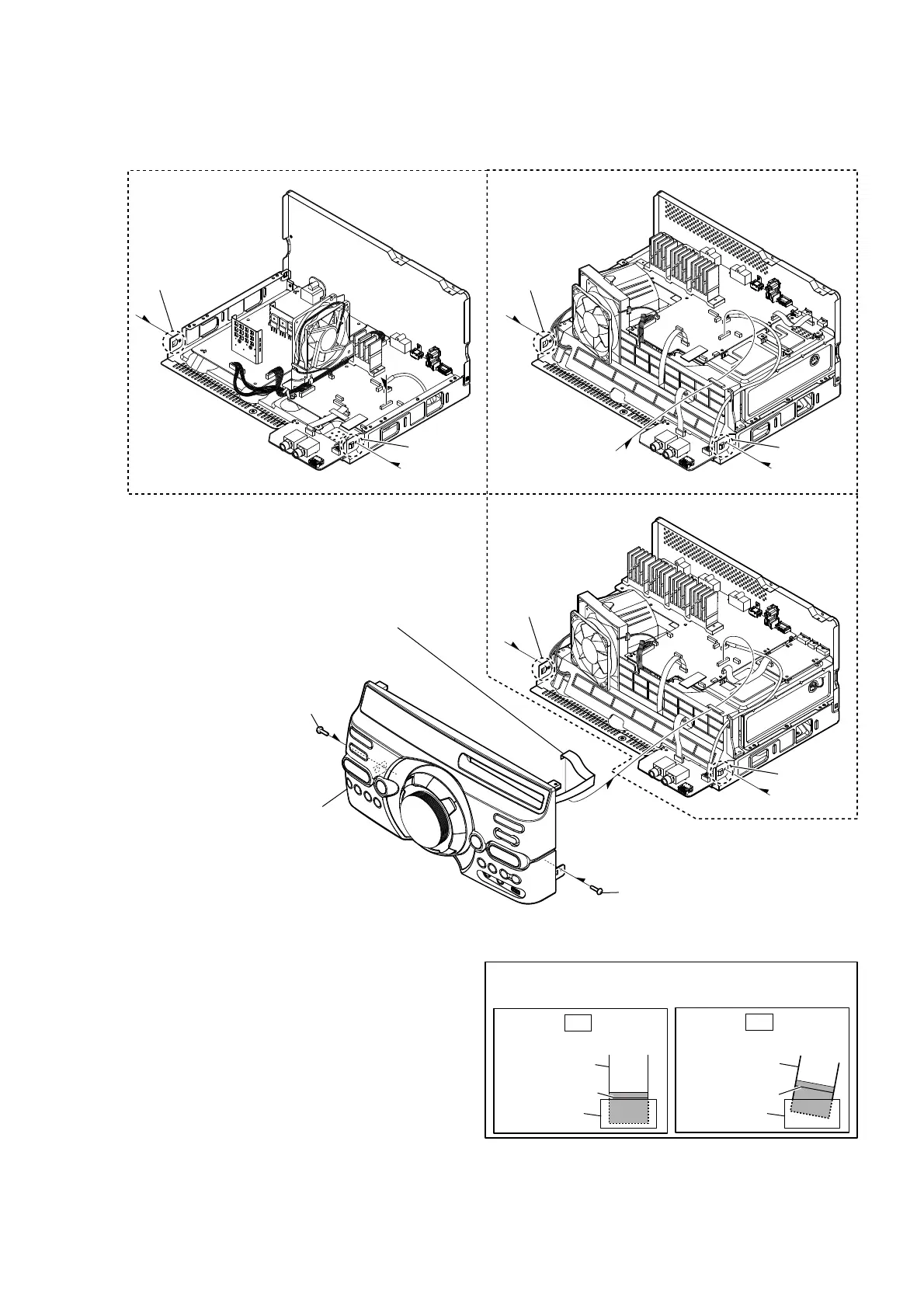

2-8. FRONT (H/M/L) PANEL SECTION
3 claw
3 claw
2 one screw
(+BVTP 3 u 8)
2 one screw
(+BVTP 3 u 8)
4 panel, front (H/M/L)
section
1 flexible flat cable (17 core)
(CN122) (M60D/M80D)
flexible flat cable (15 core)
(CN102) (M40D)
3 claw
3 claw
3 claw
3 claw
(M40D)
(M60D)
(M80D)
F
F
F
G
F
G
G
G
H
H
H
Note :
When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
To Next Page
