HCD-M40D/M60D/M80D
13

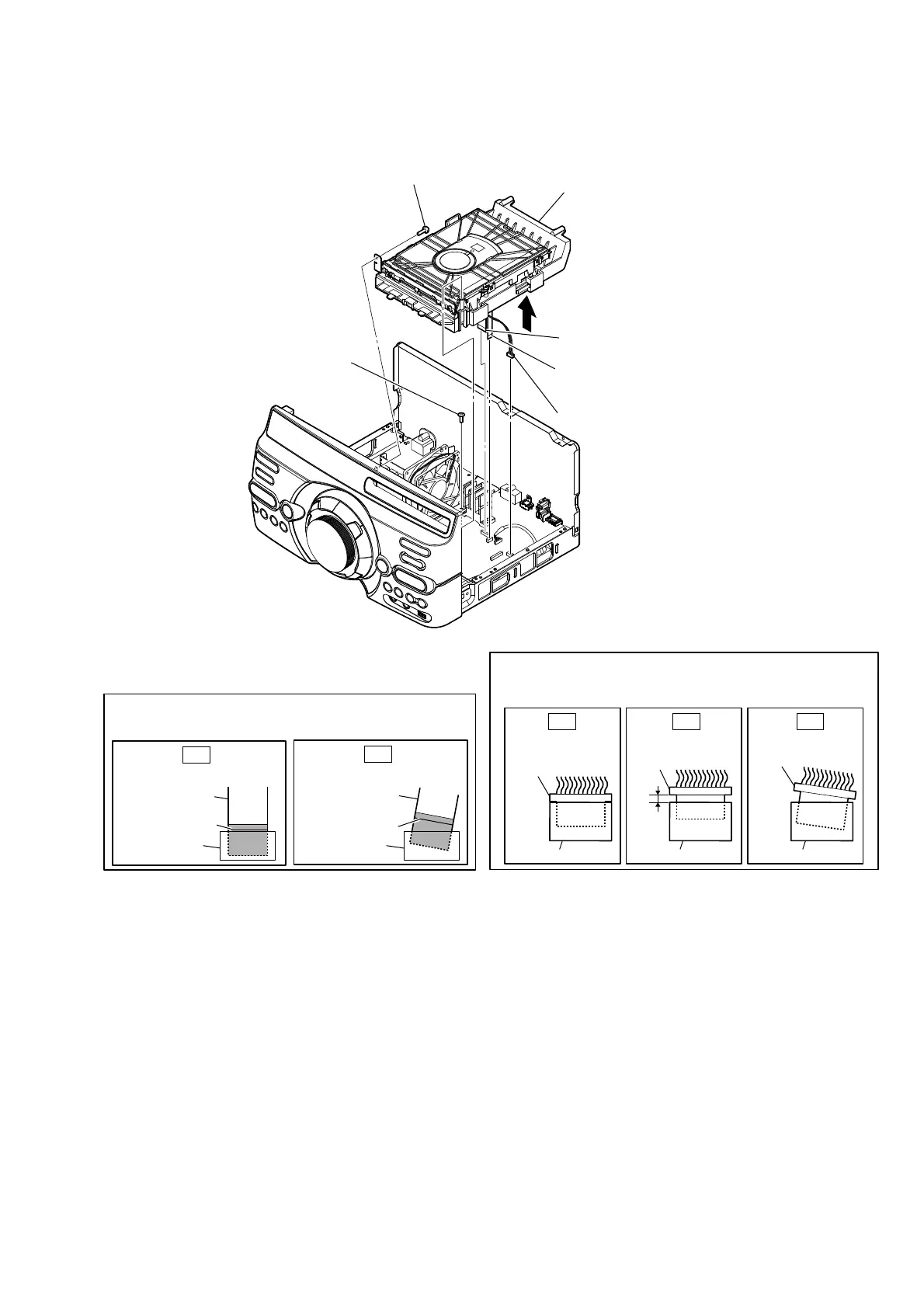

2-4. CDM SECTION (M40D)
1 CN402 (4P)
2 flexible flat cable (5 core)
(CN303)
3 flexible flat cable (24 core)
(CN302)
7 CDM section
5 one screw, tapping
4 one screw
(+BVTP 3 u 8)
6
Note 2:
When you install the connector, please install them correctly.
There is a possibility that this machine damages when not
correctly installing it.
Insert is shallow
Insert is straight
to the interior.
connector
Insert is incline
connector
connector
connector
connector connector
Note 1:
When installing the flexible flat cable, ensure that
the colored line is not slanted after insertion.
colored line
colored line
Insert is straight to the interior. Insert is incline
flexible flat cable flexible flat cable
connectorconnector
OK
NG
OK NG NG
To Next Page
