HCD-SB100/SB200
Ver. 1.1
• Follow the disassembly procedure in the numerical order given.

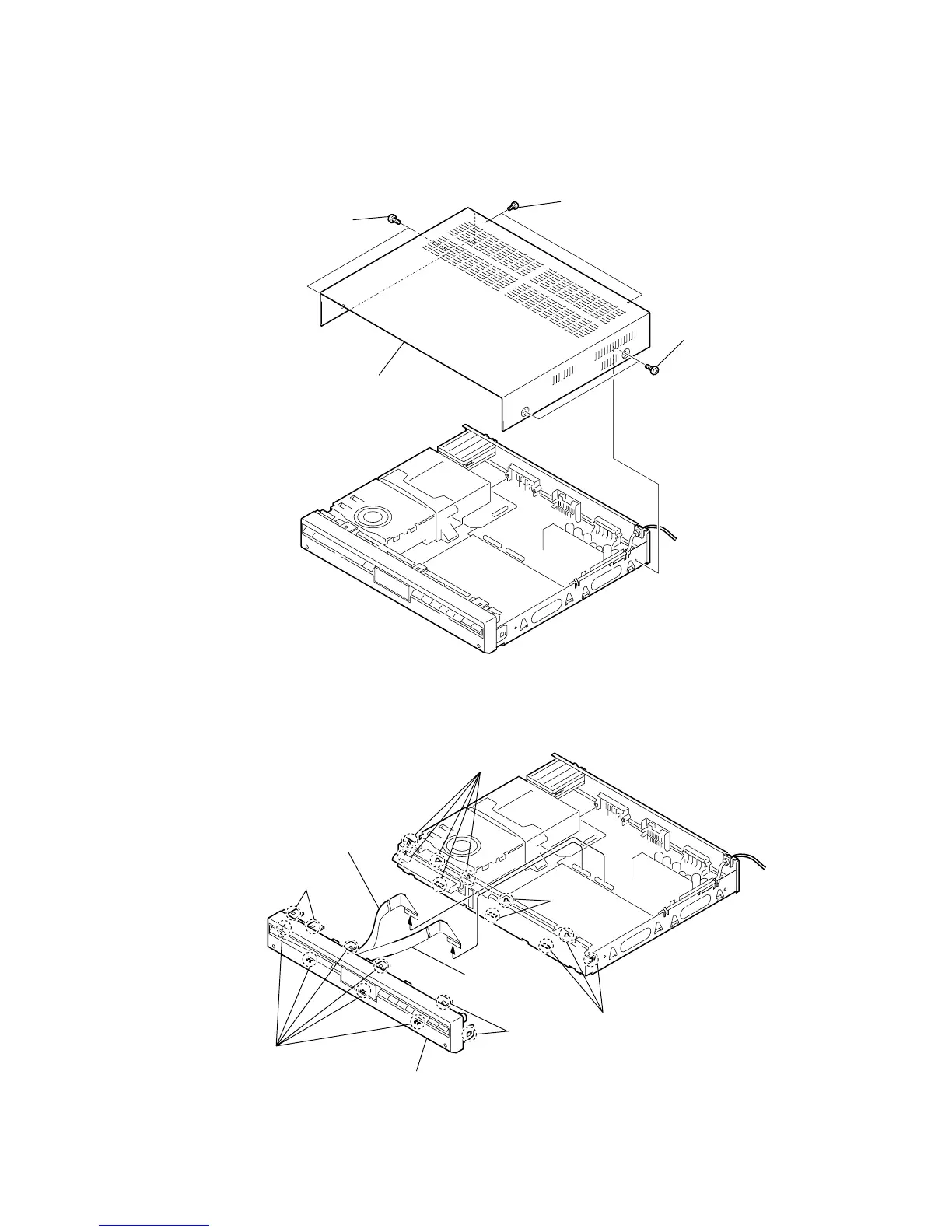

3-2. CASE
2
two case screws
1
two case screw
s
3
two screws
4
case
3-3. FRONT PANEL ASSY SECTION
4
front panel assy section
3
two
claws
3
two
claws
3
three
claws
3
five
claws
3
six
claws
3
two
claws
1
w
ire (flat type)
23p (PN101)
2
w
ire (flat type)
24p (PN102)
