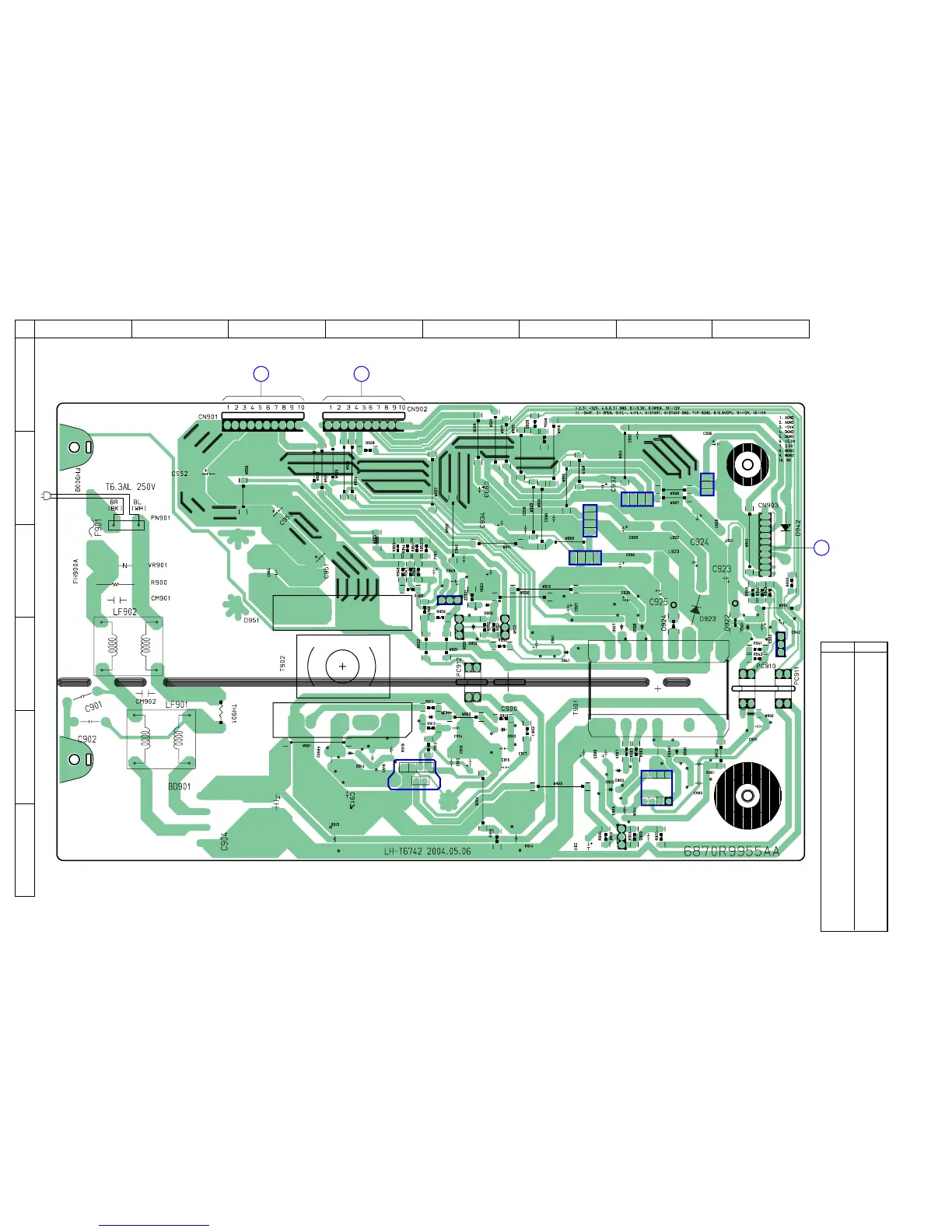

7-19. PRINTED WIRING BOARD – POWER SECTION (SB200) – • See page 45 for Circuit Boards Location.
• Semiconductor
Location
Ref. No. Location
D901 E-7
D902 E-6
D903 E-6
D911 E-5
D912 E-5
D913 E-5
D914 E-4
D921 D-8
D922 C-8
D923 C-7
D924 D-7
D926 D-7
D927 D-7
D928 B-4
D929 A-6
D932 D-5
D933 C-5
D941 D-6
D942 C-8
D951 D-3
IC901 F-7
IC902 E-4
IC921 B-7
IC922 B-6
IC923 C-6
IC924 B-7
IC941 D-8
IC942 C-5
Q910 F-7
Q921 D-5
Q922 D-5
ZD911 E-6
ZD921 C-5
IC902
IC901
IC942
IC923
IC921
IC922
IC924
IC941
H
AMP BOARD
(SB200)
PN901
(Page 52)
I
AMP BOARD
(SB200)
PN902
(Page 52)
J
DVD BOARD
PDA01
(Page 59)
TRANSFORMER
TRANSFORMER
AC IN
1
3
4
1
4
1
4
1
1
3
1
10
13
2
4
5
6
7
5
8
4
1
E
EE
1
3
12
A
B
C
D
E
F
34567
8
[POWER BOARD] (SB200)
