Sony HCD-SB100 - Printed Wiring Board - AMP Section SB200 (Conductor Side)

5252
HCD-SB100/SB200
HCD-SB100/SB200
Ver. 1.1

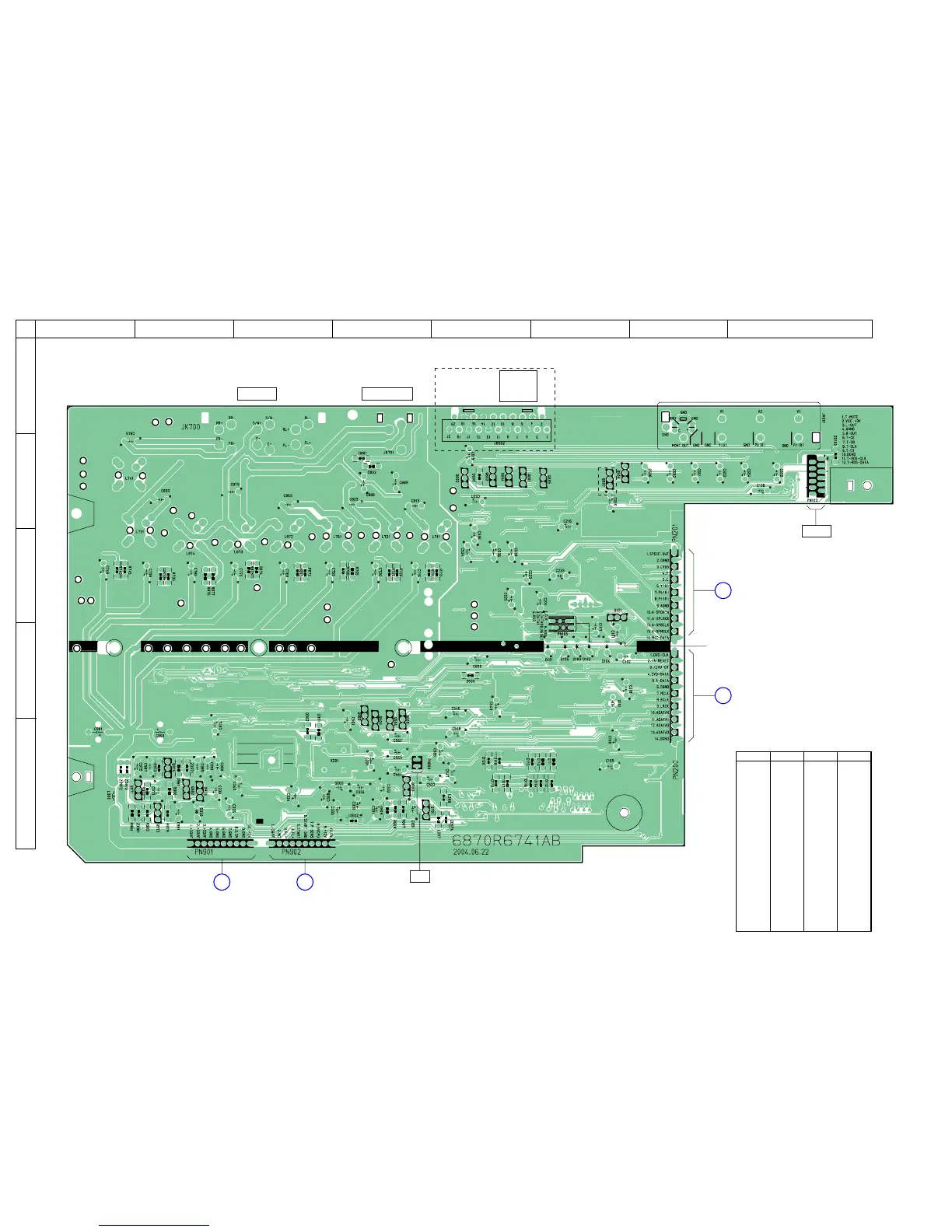

7-5. PRINTED WIRING BOARD – AMP SECTION SB200 (CONDUCTOR SIDE) – • See page 45 for Circuit Boards Location.
JK700
SPEAKER
JK701
SUB WOOFER
JK602
JK601
AEP, UK, RU, EE
EURO AV
(TO TV)
OUT PUT
E
EEE E
E
E
AEP, UK,
RU, EE
E
E
E
E
E
E
E
E
E
E
E
E
TUNER
for CHECK
FAN
2
12
1
11
1
14
1
14
2
1
5
6
12
A
B
C
D
E
34567
8
[AMP BOARD](CONDUCTOR SIDE)
(SB200)
N
DVD BOARD
PDA02
(Page 59)
M
DVD BOARD
PDA03
(Page 59)
I
POWER BOARD
(SB200)
CN902
(Page 66)
H
POWER BOARD
(SB200)
CN901
(Page 66)
Ref. No. Location
D101 D-6
D102 D-6
D103 D-6
D104 D-6
D105 D-4
D111 E-6
D112 E-6
D113 E-6
D114 E-6
D115 E-6
D116 E-6
D117 E-5
D118 E-5
D119 E-5
D120 E-5
D300 E-2
D301 D-3
D302 D-3
D500 D-5
D600 B-5
D801 B-4
D802 B-4
• Semiconductor Location
Ref. No. Location
Q101 C-6
Q503 D-4
Q504 D-6
Q506 D-4
Q601 B-5
Q602 B-5
Q603 B-5
Q604 B-5
Q605 B-6
Q606 B-6
Q607 B-6
Q609 D-4
Q701 E-5
Q702 E-4
Q971 E-2
Q972 E-2
Q973 E-2
Q975 E-2
Q982 E-2
Q983 D-4
