Sony HDR-UX1 User Manual

142
Quick Reference

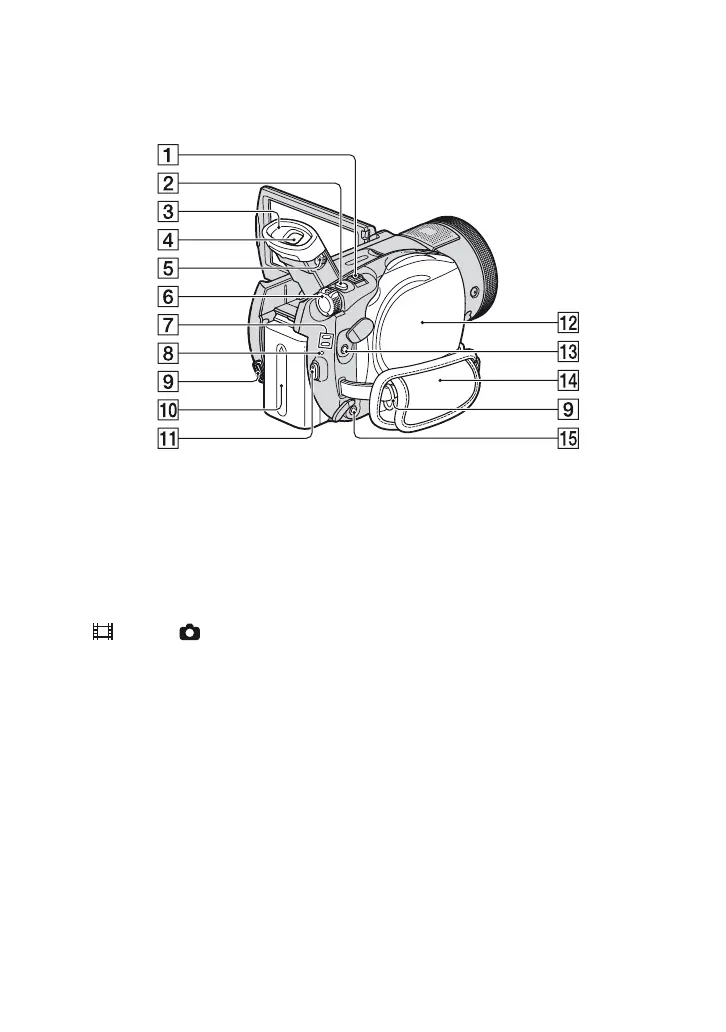

Identifying parts and controls
The numbers in ( ) are reference pages.
A Power zoom lever (43, 51)
B PHOTO button (42)
C Eyecup
D Viewfinder (35)
E Viewfinder lens adjustment lever (35)
F POWER switch (33)
G (Movie)/ (Still) mode lamps
(33)
H CHG (charge) lamp (30)
I Hooks for a shoulder belt
Attach a shoulder belt (optional).
J Battery pack (30)
K START/STOP button (41)
L Disc cover (37)
M i (headphones) jack
N Grip belt (40)
O REMOTE jack

Sony HDR-UX1 Specifications

Imaging and Video

imaging device	1/3" 2100K Gross Pixels
video actual	1076K Pixels (4:3), 1434K Pixels (16:9)
still actual	1991K Pixels (4:3), 1493K Pixels (16:9)
video recording system	MPEG4/AVC (H.264)
video signal system	NTSC color

Audio

recording system	Dolby® Digital 5.1
built-in microphone	5.1 Channel
headphone jack	Stereo Mini

Optics and Lens

35mm equivalent	41.3-485mm (16:9), 50.5-594mm (4:3)
aperture	f1.8-2.9
focal distance	5.1-51mm
optical zoom	10X
digital zoom	80X

Display

lcd size	3.5" (211K Pixels)
viewfinder	Color, 123K Pixels (16:9)

Power

power consumption	5.0W/5.2W (VF/LCD)
battery type	InfoLithium® (NP-FM50)
power requirements	7.2V Battery/8.4V AC Adaptor

Inputs and Outputs

digital audio/video input	Yes (via USB)
digital audio/video output	Yes (via USB)
component video output	Yes
hdmi connection output	Yes
usb ports	Yes; 2.0 High Speed Compliant

Weight and Dimensions

weight	1 lb, 10oz
measurements	3" x 3 5/8" x 6 1/2"
