Sony HDR-UX1 User Manual

30

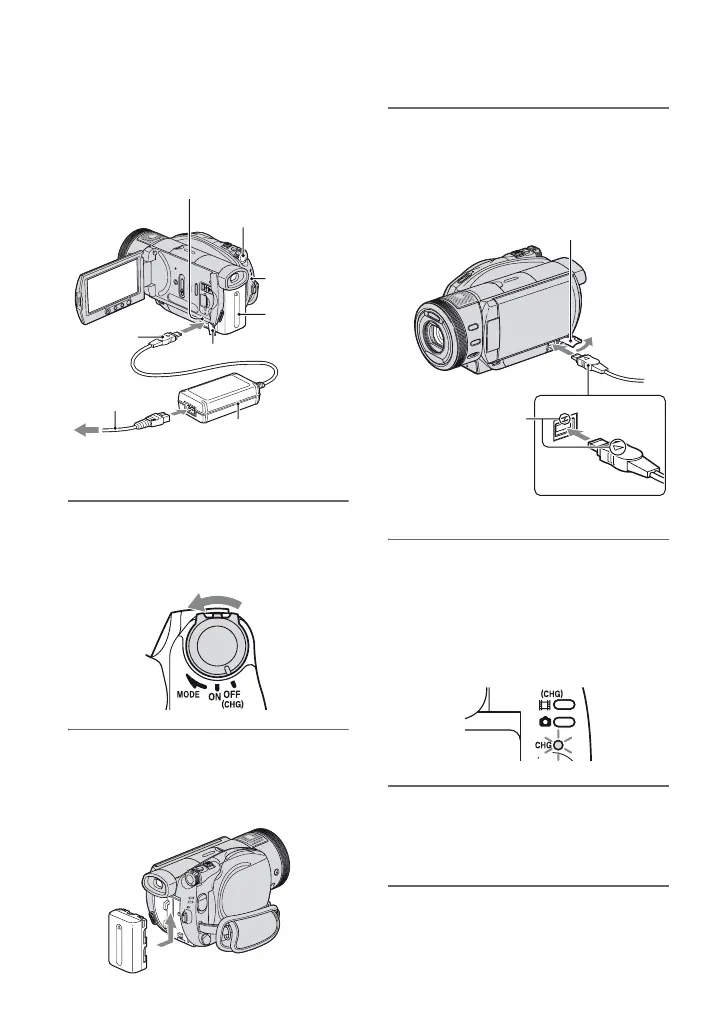

Step 2: Charging the battery pack
You can charge the “InfoLITHIUM”
battery pack (M series) (p. 134) after
attaching it to your camcorder.
1 Slide the POWER switch in the
direction of the arrow to OFF
(CHG) (The default setting).
2 Attach the battery pack by sliding
it in the direction of the arrow
until it clicks.
3 Connect the AC Adaptor to the
DC IN jack of your camcorder.
Open the jack cover, and connect the
DC plug of the AC Adaptor.
4 Connect the power cord to the AC
Adaptor and the wall outlet.
The CHG (charge) lamp lights up and
charging starts. The CHG (charge) lamp
turns off when the battery is fully
charged.
5 Disconnect the AC Adaptor from
the DC IN jack on your
camcorder.
b Notes
• Disconnect the AC Adaptor from the DC IN
jack holding both the camcorder and the DC
plug.
POWER switch
DC IN jack
DC plug
AC Adaptor
Power cord
To the wall outlet
Jack cover
CHG
(charge)
lamp
Battery
Jack cover
Facing up the v
mark on the DC
plug, match it with
the v mark on your
camcorder.
