Sony HVO-500MD Service Manual

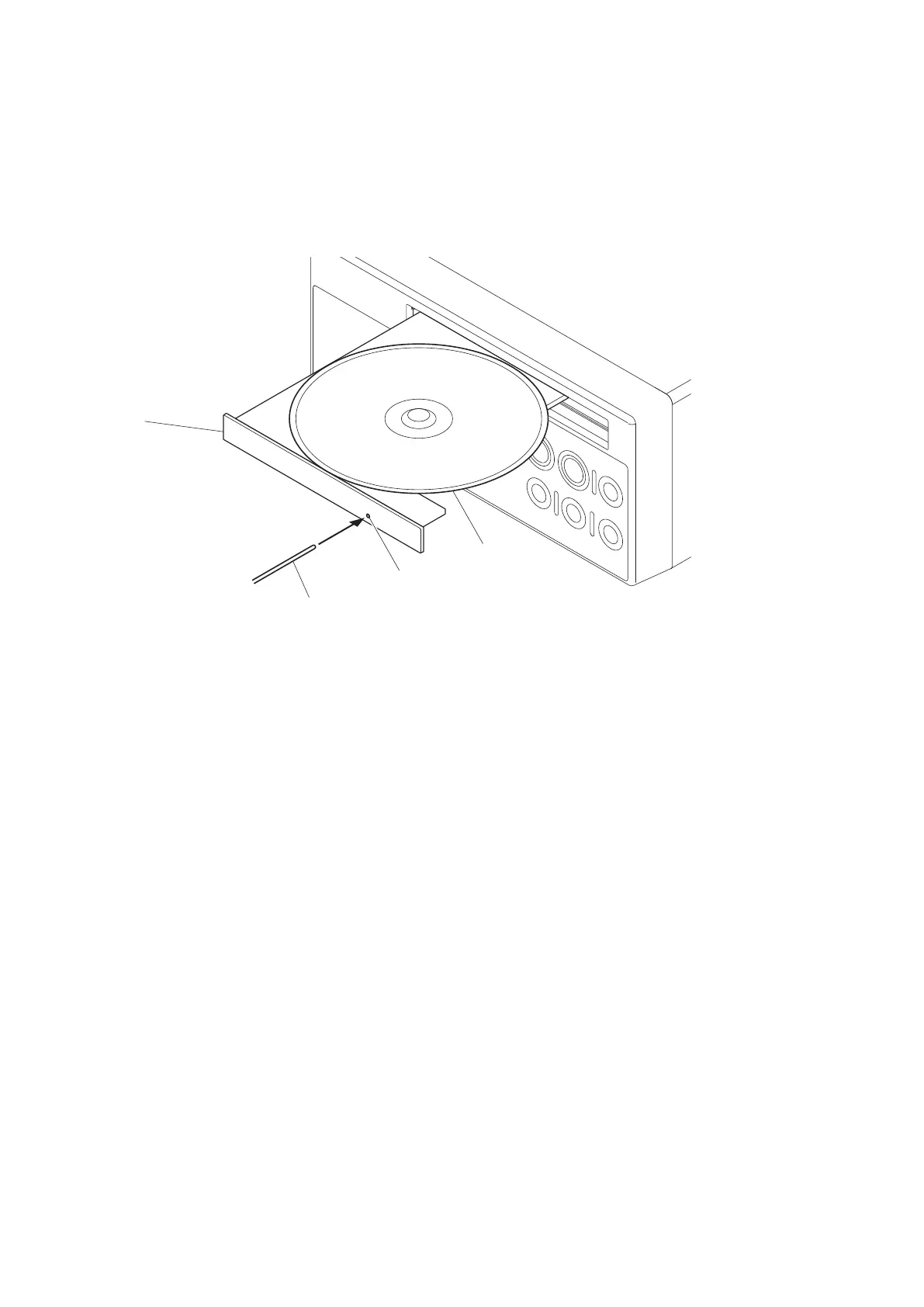

3-2. Removing the Disc Without Ejecting (HVO-550MD Only)
Tool: Thin screwdriver (diameter: 1.5 mm (1/16 inches) or less) or solid wire
1. Turn off the power and unplug the power cord from the wall outlet.
2. Insert a tool into the hole and push out the tray.
3. Draw out the tray by hand, and remove the disc.
T
ray
Hole
Disc
Tool
HVO-500MD/HVO-550MD
3-3

Sony HVO-500MD Specifications

General

Display	LCD
Product color	White
LED indicators	Yes
Playback resolutions supported	1280 x 720
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
HDD capacity	500 GB
BNC input ports	1
USB 2.0 ports quantity	4
Optical drive included	No

Weight and Dimensions

Weight	2900 g
Dimensions (WxDxH)	212 x 290 x 105.5 mm
