Sony HVO-500MD Service Manual

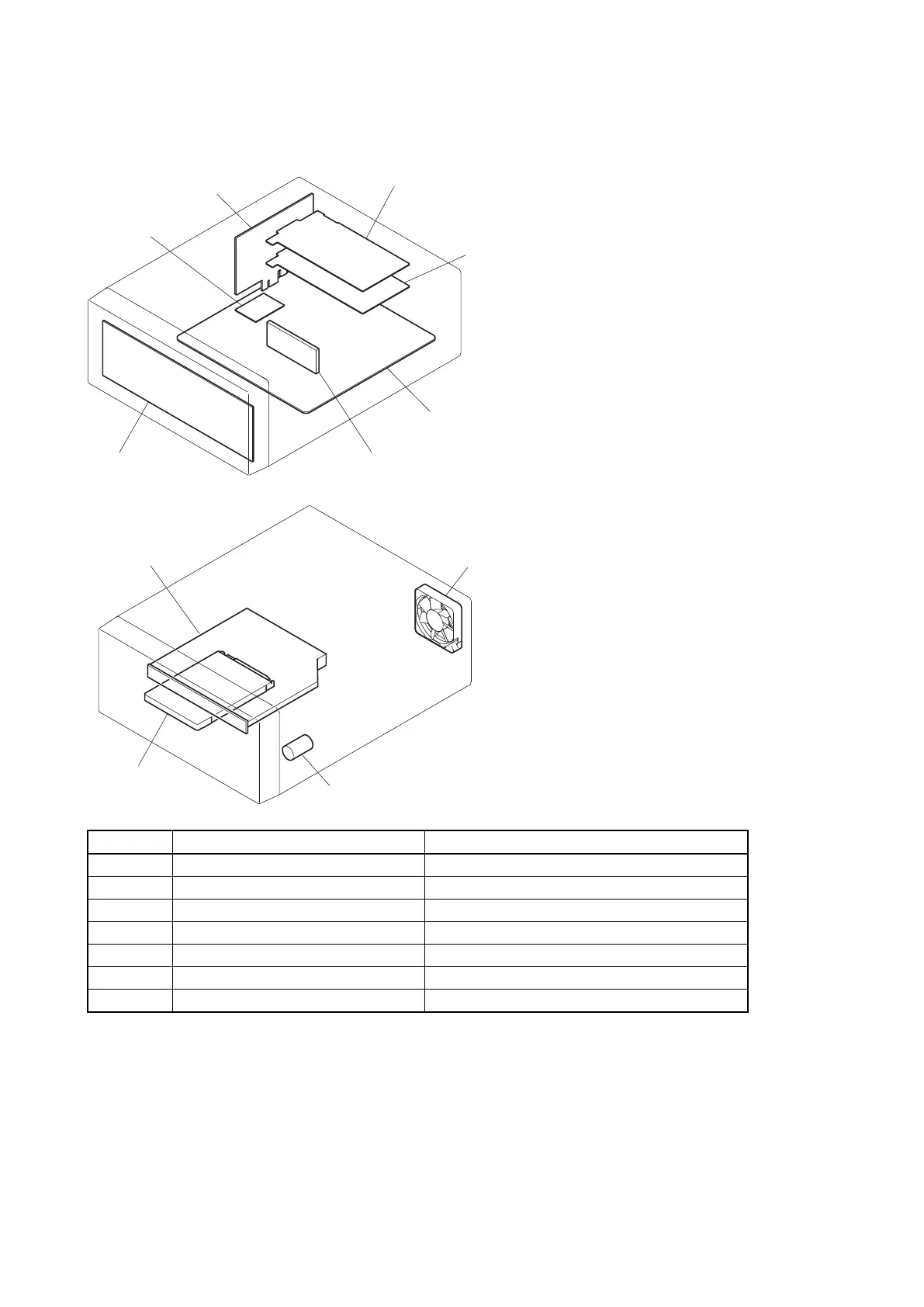

3-3. Location of Main Parts and Functions
4
3
6
2
1
5
7
HDD
㪛㪭㪛㩷㪻㫉㫀㫍㪼
㩿㪟㪭㪦㪄㪌㪌㪇㪤㪛㩷㫆㫅㫃㫐㪀
㪣㫀㫋㪿㫀㫌㫄㩷㪙㪸㫋㫋㪼㫉㫐
㪛㪚㩷㪽㪸㫅
No. Board name Function
1 DIF-222 DVI-D，HDMI，VIDEO INPUT CIRCUIT
2 DIF-223 DVI-D，HDMI，VIDEO OUTPUT CIRCUIT
3 DIMM MEMORY MODULE
4 Front board INTERFACE MICRO CONTROLLER
5 HPR-50 VIDEO/AUDIO CAPTURE CIRCUIT
6 MB board SYSTEM CONTROL
7 USBDOM OS BOOTING
HVO-500MD/HVO-550MD
3-4

Sony HVO-500MD Specifications

General

Display	LCD
Product color	White
LED indicators	Yes
Playback resolutions supported	1280 x 720
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
HDD capacity	500 GB
BNC input ports	1
USB 2.0 ports quantity	4
Optical drive included	No

Weight and Dimensions

Weight	2900 g
Dimensions (WxDxH)	212 x 290 x 105.5 mm
